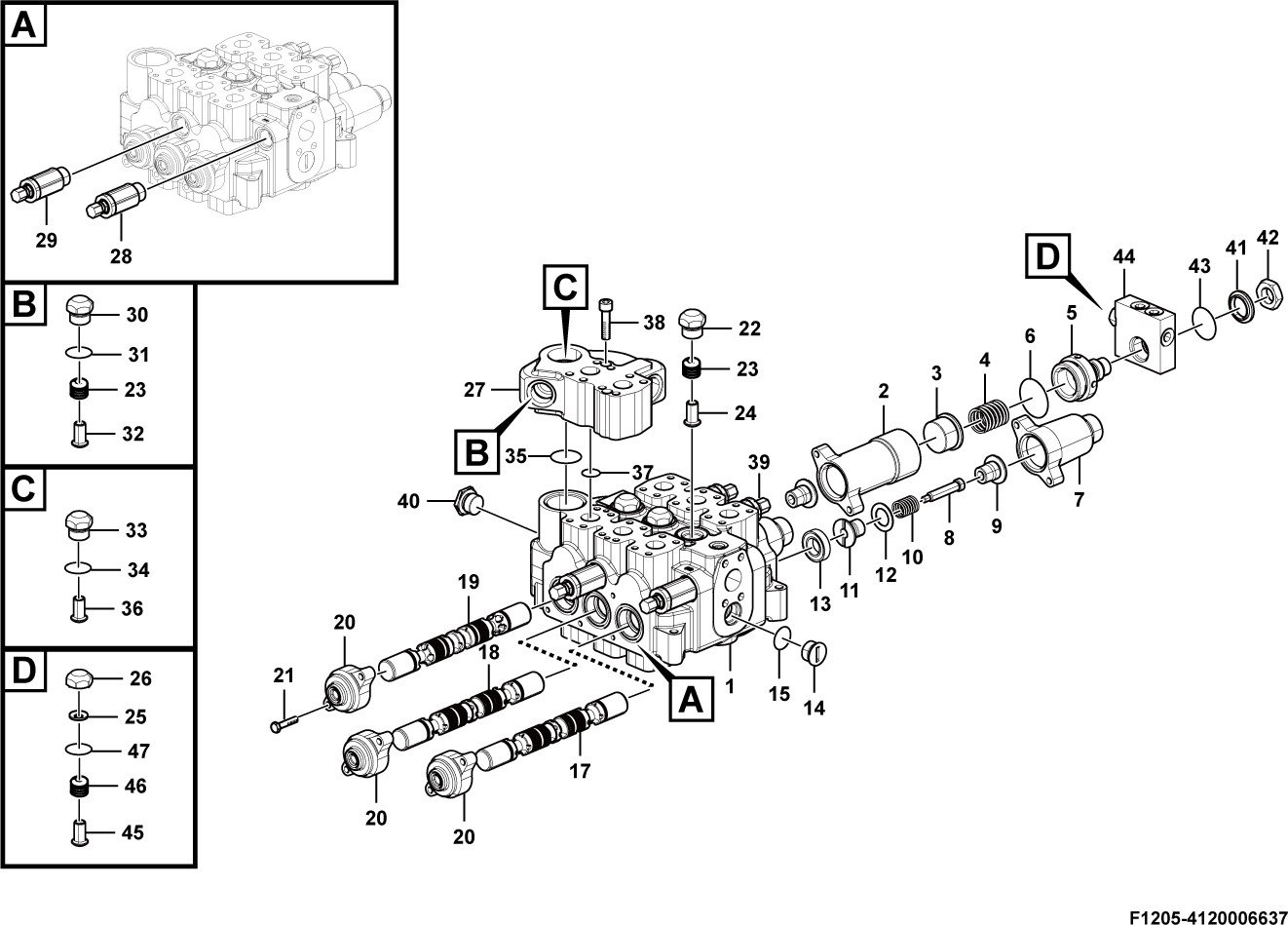

LG958F Implement hydraulic system KM300-III-19A Control valve

Key	Part No.	名称	Description	Spare parts Y/N	Qty
1	4120006637001	阀体2022000002	Valve body	N	1
2	4120006566008	动臂联端盖2022000003	End cover	N	1
3	4120006566013	活塞2022000004	Piston	N	1
4	4120006566014	弹簧2022000005	Spring	N	1
5	4120006566015	盖2022000006	End cover	N	1
6	4120003142	O形圈Parker9-5048	O-ring parker9-5048	Y	1
7	4120006566012	转斗联端盖2022000007	End cover	N	2
8	4120006637002	螺栓2022000008	Screw	N	3
9	4120006637003	弹簧座2022000009	Spring seat	N	3
10	4120006637004	弹簧2022000010	Spring	N	3
11	4120006637005	弹簧座2022000011	Spring seat	N	3
12	4120006637006	调整垫片2022000012	Shim	N	3
13	4120006566011	隔套2022000013	Spacer sleeve	N	3
14	4120006637007	螺塞2022000014	Plug	N	1
15	4041000779	O形圈LGB168-12331	O-ring	Y	5
16	4120003138	O形圈Parker2-135	O-ring parker2-135	Y	6
17	4120006637008	阀杆2022000017	Valve rod	N	1
18	4120006566010	转斗联阀杆2022000016	Valve rod	N	1
19	4120006566009	动臂联阀杆2022000015	Valve rod	N	1
20	4120006566001	端盖2022000018	End cover	N	3
21	4011000195	螺栓GB5783-M8*35EpZn-8.8	Bolt	Y	12
22	4120006566007	阀座2022000019	Valve seat	N	3
23	4120006637009	弹簧2022000020	Spring	N	5
24	4120006637010	阀芯2022000021	Valve body	N	3
25	4120006637021	调整垫片2022000055	Shim	N	1
26	4120006637022	阀座2022000056	Valve seat	N	1
27	4120006566005	阀体2022000022	Valve body	N	1
28	4120006566018	过载阀2022000036	Valve	N	1
29	4120006566002	过载阀2022000035	Valve	N	1
30	4120006637013	阀座2022000037	Valve seat	N	2
31	4041000685	O形圈LGB168-12631	O-ring	Y	2
32	4120006637014	阀芯2022000038	Valve body	N	2
33	4120006637015	阀座2022000039	Valve seat	N	1
34	4120003137	O形圈Parker9-5505	O-ring parker9-5505	Y	1
35	4120003140	O形圈Parker2-325	O-ring parker2-325	Y	1
36	4120006566006	卸荷阀总成2022000047	Valve	N	1
37	4120003141	O形圈Parker2-226	O-ring parker2-226	Y	1
38	4014000296	P-螺钉GB70.1-M8*70-12.9	Screw gb70.1-m8*70-12.9	N	2
39	4120006566019	过载阀2022000049	Valve	N	2
40	4120006637018	螺塞2022000050	Plug	N	1
41	4120006566017	挡圈2022000051	Retaining ring	N	1
42	4013000260	P-螺母GB6173-M24*2-05	Nut gb6173-m24*2-05	Y	1
43	4041000765	O形圈LGB168-12931	O-ring	Y	2
44	4120006566016	阀块2022000052	Valve block	N	1
45	4120006637019	滑阀2022000053	Valve	N	1
46	4120006637020	弹簧2022000054	Spring	N	1
47	4041000768	O形圈LGB168-11524	O-ring	Y	1
