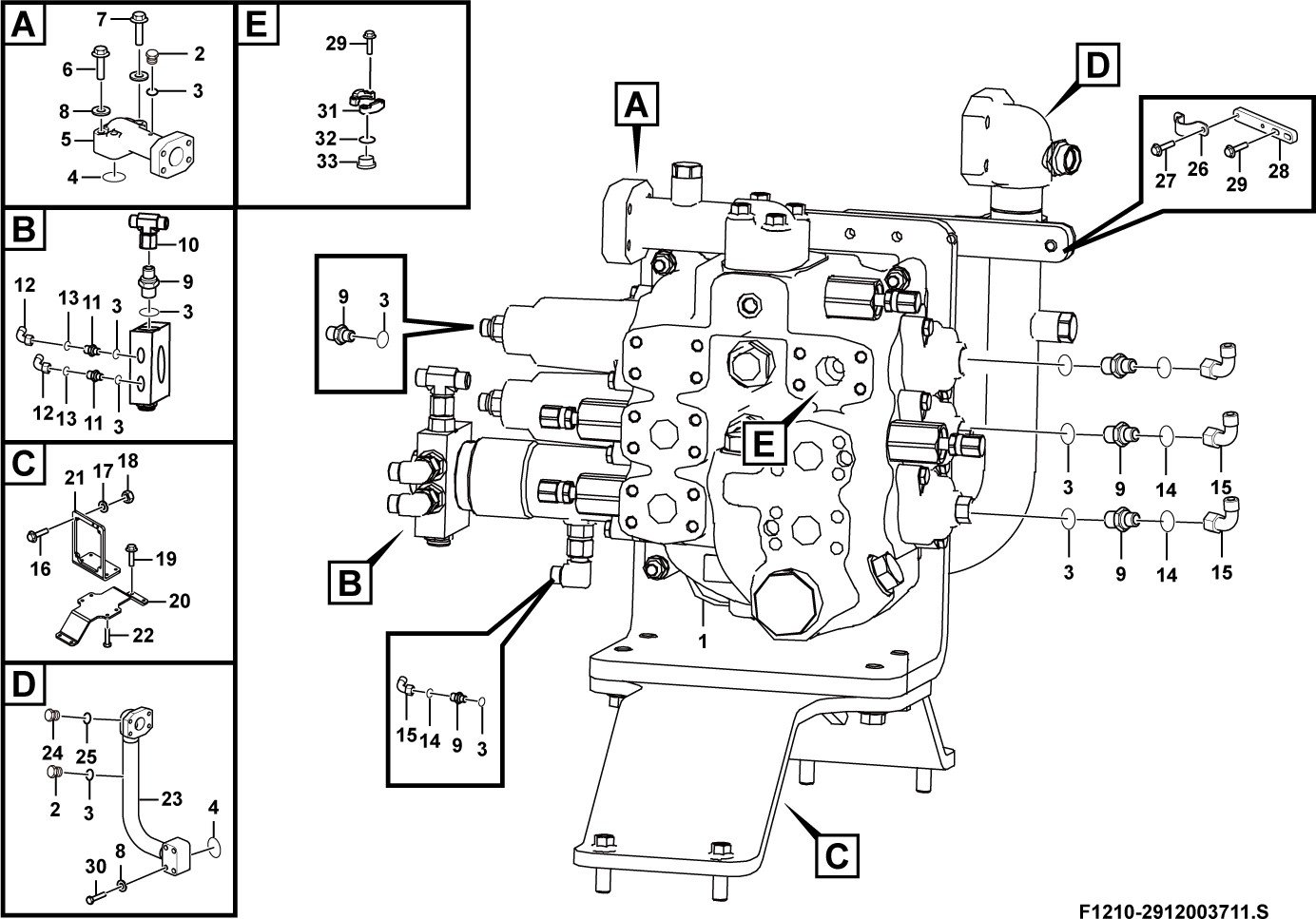

LG958F Implement hydraulic system KM300-III-19A Control valve assembly

Key	Part No.	名称	Description	Spare parts Y/N	Qty
1	4120006637	多路阀KM300-III-19A	Control valve	Y	1
2	4041000774	螺塞LGB135-01422	Plug	Y	2
3	4041000767	O形圈LGB168-11124	O-ring	Y	11
4	4030000029	O形圈GB3452.1-37.5*3.55G	O-ring	Y	2
5	29120020701	多路阀进油钢管	Pipe	Y	1
6	4011001281	螺栓GB5782-M12*55flZnyc-8.8-480	Screw	Y	2
7	4011001520	螺栓GB5782-M12*65flZnyc-8.8-480	Screw	Y	2
8	4015000428	垫圈GB97.1-12flZnyc-300HV-480	Washer	Y	8
9	4041000133	直接头LGB120-01414	Nipple	Y	7
10	4190000204	三通接头ET08LOMDA3C	Three-way nipple	Y	1
11	4041000604	直接头LGB120-01614	Nipple	Y	2
12	4041001023	组合接头LGB143-01608	Nipple	Y	2
13	4030000240	O形圈GB3452.1-8.00*1.80G	O-ring	Y	2
14	4030000530	O形圈GB3452.1-6.00*1.80G	O-ring	Y	4
15	4041001047	组合接头LGB143-01406	Nipple	Y	4
16	4011001585	螺栓GB5782-M10*80flZnyc-10.9-480	Bolt	Y	3
17	4015000433	垫圈GB97.1-10flZnyc-300HV-480	Washer	Y	6
18	4013000370	螺母GB6170-M10flZnyc-8-480	Nut	Y	3
19	4011001510	螺栓GB16674.1-M12*35flZnyc-8.8-480	Screw	Y	4
20	29120019571	多路阀支架	Bracket	Y	1
21	29120021571	多路阀固定板	Plate	Y	1
22	4011001468	螺栓GB16674.1-M14*35flZnyc-8.8-480	Bolt	Y	4
23	29120037051	多路阀回油钢管	Pipe	Y	1
24	4041000708	堵塞LGB142-03620	Plug	Y	1
25	4030000504	O形圈GB3452.1-25.8*1.80G	O-ring	Y	1
26	29120019601	管夹	Clamp	Y	1
27	4011001432	螺栓GB16674-M10*20flZnyc-8.8-480	Screw	N	2
28	29120019611	固定板	Plate	Y	1
29	4011001300	螺栓GB16674.1-M10*30flZnyc-8.8-480	Screw	Y	10
30	4011001355	螺栓GB5782-M12*70flZnyc-8.8-480	Screw	Y	4
31	4041000026	分体法兰LGB117-310491	Flange half	Y	2
32	4030000026	O形圈GB3452.1-32.5*3.55G	O-ring	Y	2
33	4041000818	防尘盖LGB134-01049	Cover	Y	2
