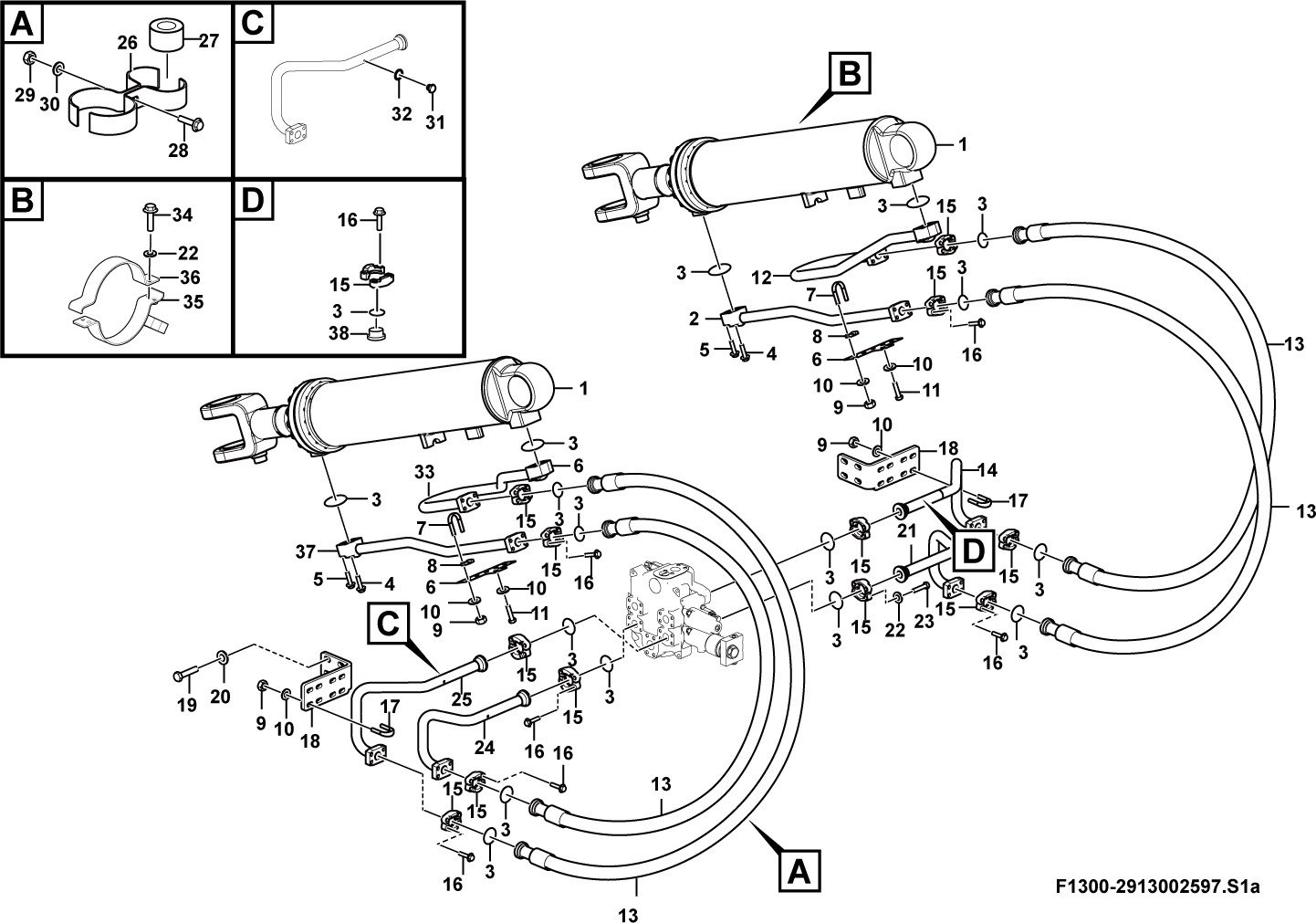

| Key | Part No. | 名称 | Description | Spare parts Y/N | Qty |
| 1 | 4120009098 | 动臂油缸HSGF-170*90*757-1378B | Lifting cylinder | Y | 2 |
| 2 | 29130021711 | 右动臂缸小腔钢管 | Pipe | Y | 1 |
| 3 | 4030000026 | O形圈GB3452.1-32.5*3.55G | O-ring | Y | 18 |
| 4 | 4011001298 | 螺栓GB16674.1-M10*55flZnyc-8.8-480 | Screw | Y | 8 |
| 5 | 4011001288 | 螺栓GB16674.1-M10*50flZnyc-8.8-480 | Screw | Y | 8 |
| 6 | 29130013141 | 固定板 | Anchor plate | Y | 2 |
| 7 | 4041001017 | U形螺栓LGB159-13040 | U-bolt | Y | 4 |
| 8 | 4041001018 | 底板LGB160-3040 | Bracket | Y | 4 |
| 9 | 4013000370 | 螺母GB6170-M10flZnyc-8-480 | Nut | Y | 24 |
| 10 | 4015000426 | 垫圈GB96.1-10flZnyc-300HV-480 | Washer | Y | 28 |
| 11 | 4011001248 | 螺栓GB5783-M10*25flZnyc-8.8-480 | Screw | Y | 4 |
| 12 | 29130013751 | 右动臂缸大腔钢管 | Pipe | Y | 1 |
| 13 | 29130014321 | 胶管 | Hose | Y | 4 |
| 14 | 29130023481 | 举升联右大腔钢管 | Pipe | Y | 1 |
| 15 | 4041000026 | 分体法兰LGB117-310491 | Flange half | Y | 12 |
| 16 | 4011001300 | 螺栓GB16674.1-M10*30flZnyc-8.8-480 | Screw | Y | 52 |
| 17 | 4041000958 | U形螺栓LGB159-03040 | U-bolt | Y | 8 |
| 18 | 29130013691 | 支架 | Bracket | Y | 2 |
| 19 | 4011001250 | 螺栓GB5783-M12*30flZnyc-8.8-480 | Screw | Y | 8 |
| 20 | 4015000428 | 垫圈GB97.1-12flZnyc-300HV-480 | Washer | Y | 8 |
| 21 | 29130023511 | 举升联右小腔钢管 | Pipe | Y | 1 |
| 22 | 4015000433 | 垫圈GB97.1-10flZnyc-300HV-480 | Washer | Y | 12 |
| 23 | 4011001354 | 螺栓GB5782-M10*90flZnyc-8.8-480 | Screw | Y | 4 |
| 24 | 29130013771 | 举升联左小腔钢管 | Pipe | Y | 1 |
| 25 | 29130013781 | 举升联左大腔钢管 | Pipe | Y | 1 |
| 26 | 29130010371 | 管夹 | Clamp | Y | 4 |
| 27 | 4041000869 | 缓冲套LGB123-0740 | Rubber sleeve | Y | 4 |
| 28 | 4011001296 | 螺栓GB16674.1-M8*20flZnyc-8.8-480 | Screw | Y | 2 |
| 29 | 4013000373 | 螺母GB6170-M8flZnyc-8-480 | Nut | Y | 2 |
| 30 | 4015000430 | 垫圈GB97.1-8flZnyc-300HV-480 | Washer | Y | 2 |
| 31 | 4041000774 | 螺塞LGB135-01422 | Plug | Y | 2 |
| 32 | 4041000767 | O形圈LGB168-11124 | O-ring | Y | 2 |
| 33 | 29130013671 | 左动臂缸大腔钢管 | Pipe | Y | 1 |
| 34 | 4011001280 | 螺栓GB5783-M10*40flZnyc-8.8-480 | Screw | Y | 8 |
| 35 | 29130021801 | 管夹 | Clamp | Y | 2 |
| 36 | 29130022171 | 管夹 | Clamp | Y | 2 |
| 37 | 29130021771 | 左动臂缸小腔钢管 | Pipe | Y | 1 |
| 38 | 4041000818 | 防尘盖LGB134-01049 | Cover | Y | 2 |
