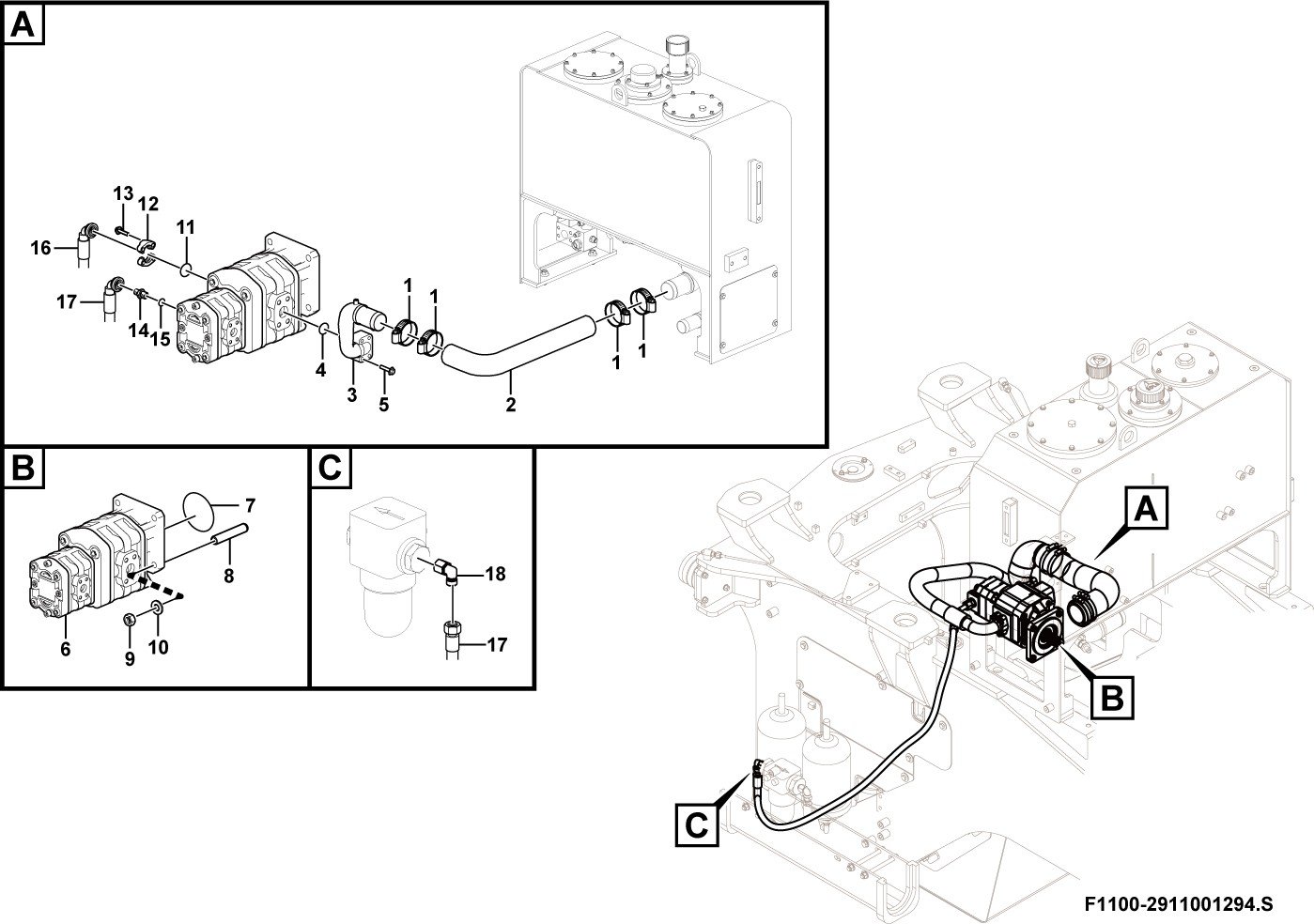

| Key | Part No. | 名称 | Description | Spare parts Y/N | Qty |
| 1 | 4017000013 | 喉箍JB8870-d90 | Clamp | Y | 4 |
| 2 | 29110012961 | 工作泵吸油胶管 | Hose | Y | 1 |
| 3 | 29110012152 | 工作泵吸油钢管 | Pipe | Y | 1 |
| 4 | 4030000482 | O形圈GB3452.1-50.0*3.55G | O-ring | Y | 1 |
| 5 | 4011001530 | 螺栓GB16674.1-M12*60flZnyc-8.8-480 | Screw | Y | 4 |
| 6 | 4120007576 | 双联泵63/16 | Gear pump | Y | 1 |
| 7 | 4030000633 | O形圈GB3452.1-128*3.55G | O-ring | Y | 1 |
| 8 | 4012000082 | 螺柱GB898-M12*35flZnyc-8.8-480 | Stud | Y | 4 |
| 9 | 4013000368 | 螺母GB6170-M12flZnyc-8-480 | Nut | Y | 4 |
| 10 | 4015000428 | 垫圈GB97.1-12flZnyc-300HV-480 | Washer | Y | 4 |
| 11 | 4030000026 | O形圈GB3452.1-32.5*3.55G | O-ring | Y | 2 |
| 12 | 4041000026 | 分体法兰LGB117-310491 | Flange half | Y | 2 |
| 13 | 4011001300 | 螺栓GB16674.1-M10*30flZnyc-8.8-480 | Screw | Y | 8 |
| 14 | 4041000766 | 直接头LGB120-01818 | Nipple | Y | 1 |
| 15 | 4041000768 | O形圈LGB168-11524 | O-ring | Y | 1 |
| 16 | 29110012591 | 泵出油胶管 | Hose assembly | Y | 1 |
| 17 | 4041002713 | 软管LGB128-005151 | Hose assembly | Y | 1 |
| 18 | 4041001464 | 组合接头LGB143-11810 | Nipple | Y | 1 |
