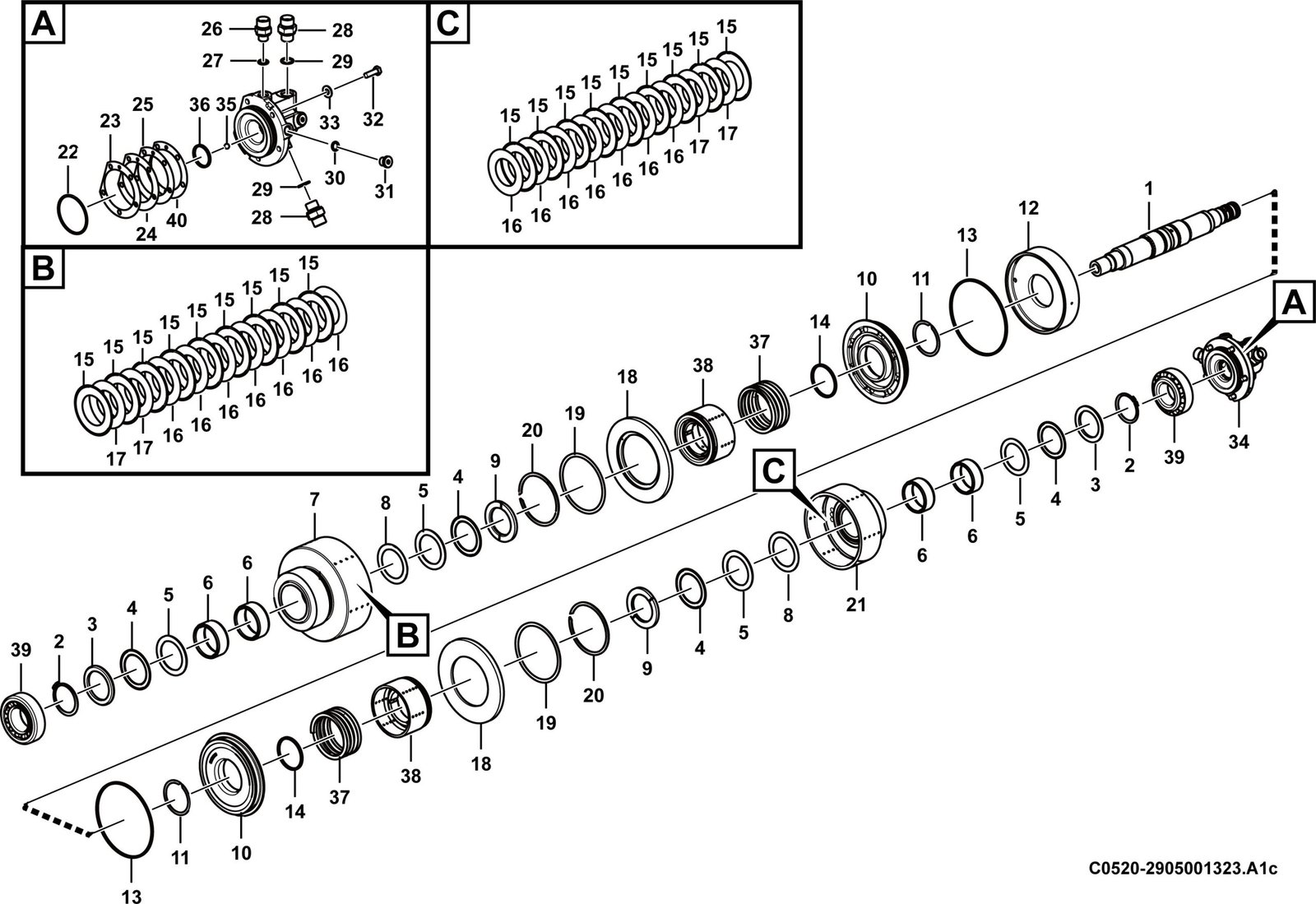

LG958F Transmission system KFR Clutch

Key	Part No.	名称	Description	Spare parts Y/N	Qty
1	29050013801	KFR轴	Clutch shaft	Y	1
2	29050014061	挡圈54	Retaining ring	Y	2
3	29050013811	止推垫片	Shim	Y	2
4	4110000628	轴承NTA-3446	Bearing	Y	4
5	29050014041	止推垫片	Shim	Y	4
6	4110000625	轴承WJ-344016	Bearing	Y	4
7	29050013821	齿轮总成R11	Gear	Y	1
8	29050013931	止推垫片	Shim	Y	2
9	29050013951	隔离环	Spacer ring	Y	2
10	29050013881	活塞	Piston	Y	2
11	29050013991	卡环	Retaining ring	Y	2
12	29050013891	隔离架	Separator	Y	1
13	29050014001	活塞环	Piston ring	Y	2
14	29050013971	活塞环	Piston ring	Y	2
15	29050013861	主动摩擦片	Friction disc	Y	18
16	29050013871	从动摩擦片	Friction disc	Y	6
17	29050015511	从动摩擦片	Friction disc	Y	12
18	29050013851	受压盘	Pressure disc	Y	2
19	29050013841	卡环	Retaining ring	Y	2
20	29050013831	卡环	Retaining ring	Y	2
21	29050013901	齿轮总成R12	Gear	Y	1
22	4030000820	O形圈GB3452.1-82.5*3.55G-FPM	O-ring	Y	1
23	29050013241	调整垫片	Shim	Y	2
24	29050013251	调整垫片	Shim	Y	4
25	29050013261	调整垫片	Shim	Y	6
26	29050014201	直接头	Nipple	Y	1
27	4040000019	O形圈LGB168-21324	O-ring	Y	1
28	4041000132	直接头LGB120-02220	Nipple	Y	2
29	4041001270	O形圈LGB168-21724	O-ring	Y	2
30	4041000775	O形圈LGB168-21124	O-ring	Y	2
31	29050014411	螺塞	Plug	Y	2
32	4011000448	螺钉GB70.1-M8*30EpZn-8.8	Screw	Y	5
33	29050013451	垫片	Shim	Y	5
34	29050013631	配油器	Oil distributor	Y	1
35	4090000130	钢球GB308-8.5-GCr15	Ball	Y	2
36	29050013911	活塞环	Piston ring	Y	3
37	29050013981	弹簧	Spring	Y	2
38	29050013961	离合器轮毂	Clutch hub	Y	2
39	4021000173	轴承HM803149/2/110/2/QCL7C	Bearing	Y	2
40	29050026111	调整垫片	Shim	Y	1
