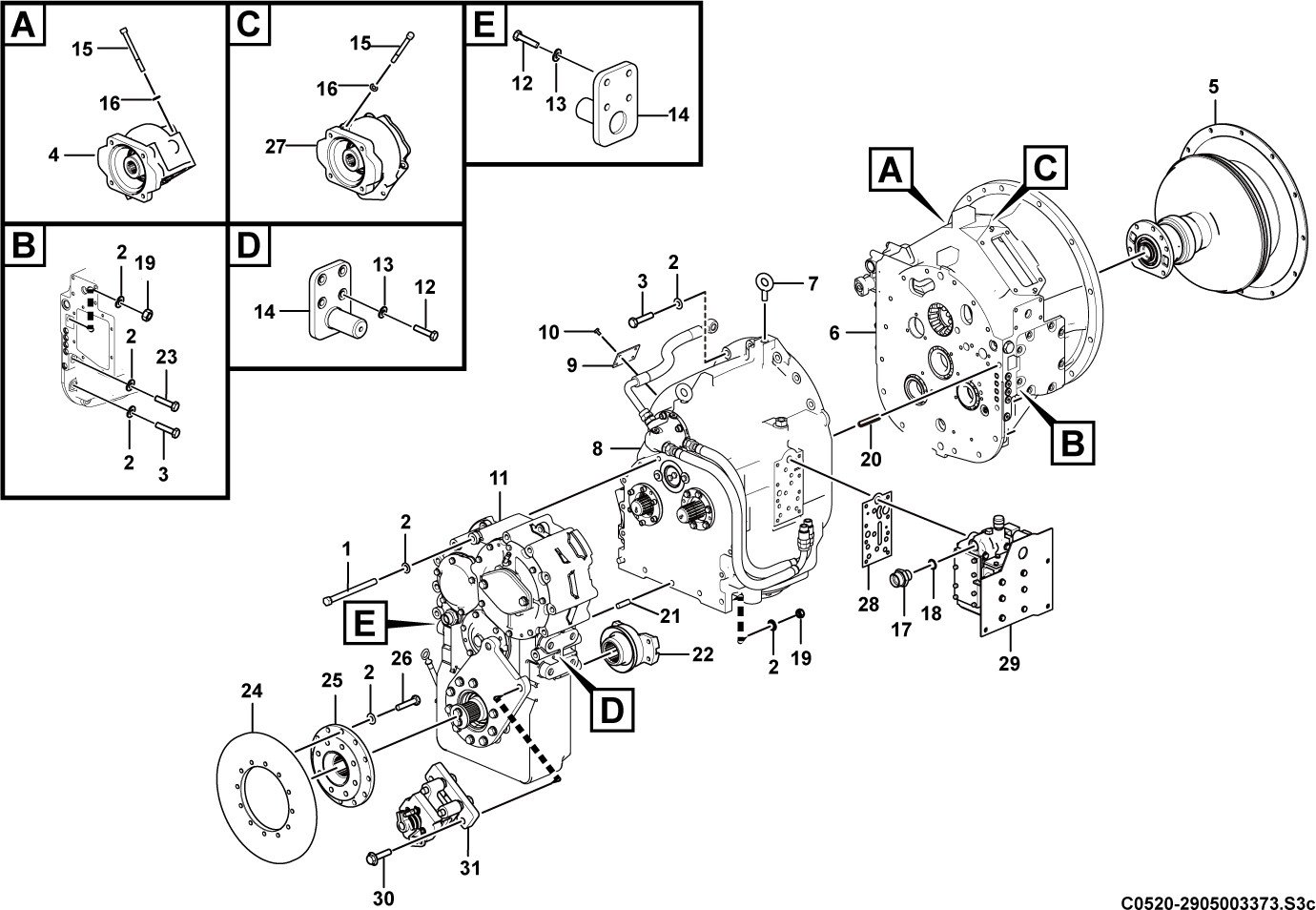

| Key | Part No. | 名称 | Description | Spare parts Y/N | Qty |
| 1 | 4011000721 | 螺栓GB5782-M12*170EpZn－8.8 | Screw | Y | 11 |
| 2 | 4015000288 | 垫圈GB1230-12EpZn-45 | Washer | Y | 44 |
| 3 | 4011001251 | 螺栓GB5783-M12*45flZnyc-8.8-480 | Screw | Y | 18 |
| 4 | 29050025201 | 工作泵取力器 | Power take-off | N | 1 |
| 5 | 29040012311 | 涡轮组总成 | Turbine | N | 1 |
| 6 | 29050030081 | 变矩器总成 | Torque converter | N | 1 |
| 7 | 4014000516 | 螺钉GB825-M16flZnyc-25-480 | Screw | Y | 2 |
| 8 | 29050033001 | 离合器箱总成 | Transmission | N | 1 |
| 9 | 29050025601 | 变速箱通用标牌 | Name plate | N | 1 |
| 10 | 4019000012 | 铆钉GB827-3*5-BL2 | Rivet | Y | 4 |
| 11 | 29050032431 | 分动箱总成 | Transfer case | Y | 1 |
| 12 | 4011000205 | 螺栓GB5783-M16*45EpZn-8.8 | Bolt | Y | 8 |
| 13 | 4015000098 | 垫圈GB93-16-65Mn | Spring washer | Y | 8 |
| 14 | 29050015701 | 连接座 | Connect seat | Y | 2 |
| 15 | 4014000173 | 螺钉GB70.1-M10*110EpZn-8.8 | Screw | Y | 8 |
| 16 | 29050013611 | 垫片 | Shim | Y | 12 |
| 17 | 29050013141 | 接头体 | Nipple | Y | 1 |
| 18 | 4041001264 | O形圈LGB168-22331 | O-ring | Y | 2 |
| 19 | 4013000011 | 螺母GB6170-M12EpZn-8 | Nut | Y | 2 |
| 20 | 4012000036 | 螺柱GB900-M12*35EpZn-8.8 | Stud | Y | 1 |
| 21 | 4012000034 | 螺柱GB900-M12*55EpZn-8.8 | Stud | Y | 1 |
| 22 | 29050016261 | 后法兰总成 | Connection flange | Y | 1 |
| 23 | 4011000092 | 螺栓GB5783-M12*50EpZn-8.8 | Bolt | Y | 1 |
| 24 | 29050016001 | 制动盘 | Disc brake | Y | 1 |
| 25 | 29050034441 | 前输出法兰 | Connection flange | Y | 1 |
| 26 | 4011001243 | 螺栓GB5783-M12*35flZnyc-8.8-480 | Screw | Y | 12 |
| 27 | 29050025481 | 转向泵取力器 | Power take-off | N | 1 |
| 28 | 29050013721 | 垫片 | Gasket | Y | 1 |
| 29 | 29050016691 | 变速阀总成 | Gear selector valve | Y | 1 |
| 30 | 4011000148 | 螺栓GB16674-M16*40EpZn-8.8 | Bolt | Y | 2 |
| 31 | 4110001933 | 制动器BL50F-1 | Parking brake | Y | 1 |
