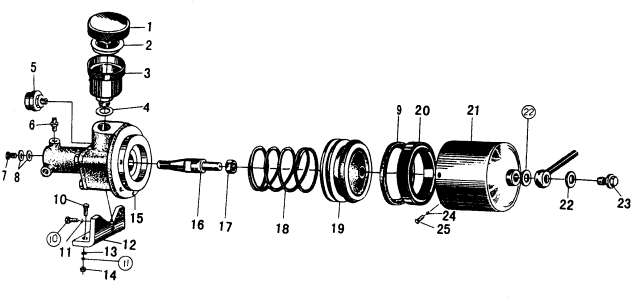

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | OIL RESERVOIR COVER | 2 | |
| 2 | FILTER SLEEVE | 2 | |
| 3 | OIL RESERVOIR | 2 | |
| 4 | O-RING 40*3.1 | 2 | |
| 5 | AIR BLEEDER | 2 | |
| 6 | CONNECTOR | 2 | |
| 7 | FITTING | 2 | |
| 8 | WASHER | 4 | |
| 9 | SEALING WASHER | 2 | |
| 10 | BOLT M10*20-Ep·Zn | 8 | |
| 11 | LOCK WASHER 10 | 8 | |
| 12 | BRACKET | 2 | |
| 13 | WASHER 10 | 8 | |
| 14 | NUT M10 | 4 | |
| 15 | BRAKE MAIN PUMP | 2 | |
| 16 | PUSH ROD | 2 | |
| 17 | NUT M12*1.5 | 2 | |
| 18 | SPRING | 2 | |
| 19 | PISTON | 2 | |
| 20 | YX-RING SEAL | 2 | |
| 21 | BOOSTING TANK | 2 | |
| 22 | WASHER | 4 | |
| 23 | BOLT | 2 | |
| 24 | WASHER 8 | 12 | |
| 25 | BOLT M8*16 | 12 |
