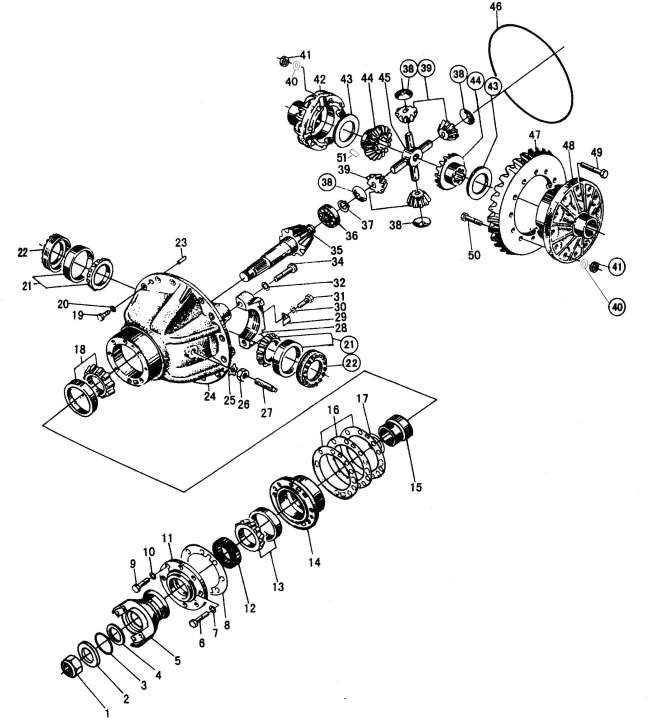

LG968 FRONT AXLE MAIN DRIVE ASS’Y

KEY	PART NO.	DESCRIPTION	QTY
1	4013000066	NUT GB889.2-M33*1.5-8	1
2	2907000022	WASHER	1
3	4030000035	O-RING	1
4	2907000024	RING SNAP	1
5	2907000023	INPUT FLANGE	1
6	4011000067	BOLT GB5782-M14*55EpZn-8.8	7
7	4015000027	WASHER GB93-14-65Mn	7
8	2907000026	GASKET	1
9	4011000186	BOLT GB5782-M12*55EpZn-8.8	1
10	4015000026	WASHER GB93-12-65Mn	1
11	2907000025	SEALING COVER	1
12	4030000049	OIL SEAL HG4-692-SG8010012	1
13	4021000030	BEARING GB297-31313	1
14	2907000027	BEARING SEAT	1
15	2907000028	SHAFT SLEEVE	1
16	2907000015	ADJUSTING SHIM	3
16	2907000016	ADJUSTING SHIM	4
16	2907000017	ADJUSTING SHIM	5
17	2907000018	SPACER	2
17	2907000019	SPACER	2
17	2907000020	SPACER	3
17	2907000021	SPACER	3
18	4021000032	BEARING GB297-31314	1
19	4011000494	BOLT M161.545EpZn-8.8	14
20	4015000098	WASHER GB93-16-65Mn	14
21	4021000036	BEARING GB297-32216	2
22	2907000035	ADJUSTING NUT	2
23	4016000124	PIN GB119.2-10u8*30	2
24	2907000032	CARRIER	1
25	2907000031	LOCKING LEAF	1
26	4013000052	NUT GB6173-M27*2-05	1
27	2907000030	BOLT	1
28	2907000039	CAGE	2
29	2907000040	LOCKING LEAF	2
30	4015000025	WASHER GB93-10-65Mn	2
31	4011000597	BOLT GB5786-M10120EpZn-8.8	2
32	2907000130	WASHER	4
33
34	2907000952	BOLT	4
35	2907000029	SPIRAL BEVEL GEAR PINION(LEFT)	1
36	4021000027	BEARING GB283-NUP2307	1
37	4015000020	RING SNAP GB894.1-35-65Mn	1
38	2907000033	WASHER THRUST	4
39	2907000034	GEAR PINION	4
40	2907000951	WASHER	20
41	4013000198	NUT GB6176-M16*1.5-10	20
42	2907000043	LEFT CASE DIFF	1
43	2907000038	WASHER THRUST	2
44	2907000037	GEAR SIDE	2
45	2907000041	SPIDER	1
46	4041000019	O-RING LGB308-430*3.5	1
47	2907000045	LARGE SPRIAL BEVELGEAR (RIGHT)	1
48	2907000036	RIGHT CASE DIFF	1
49	2907000949	BOLT	8
50	2907000950	BOLT	12
51	2907000046	PIN	4
