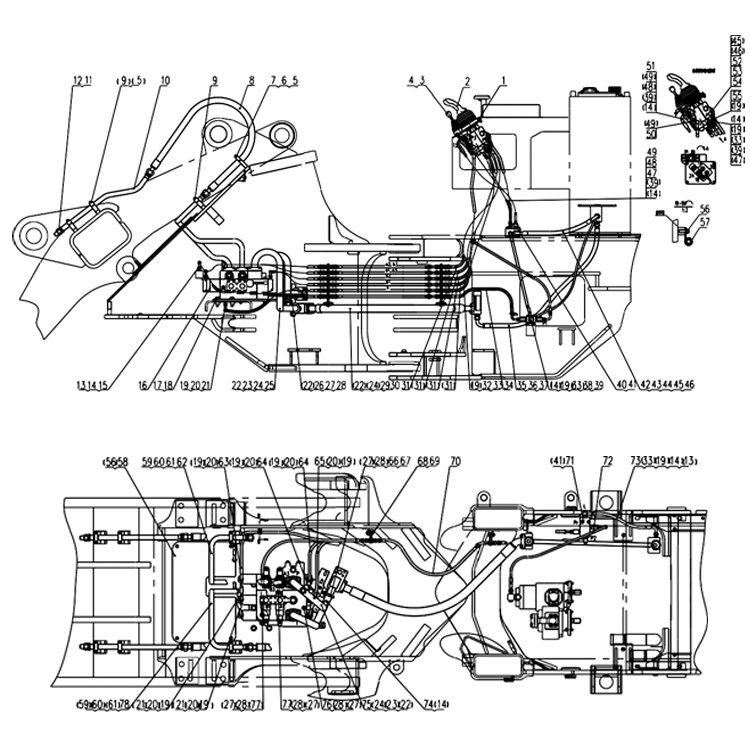

LG968 HYDRAULICALLY CONTROLLED ASSEMBLY

KEY	PART NO.	DESCRIPTION	QTY
1	4011000447	BOLT GB16674-M10*20EpZn-8.8	4
2	4120000370	MONOLEVER PILOT VALVE DXS-00	1
3	4120001074	MONOLEVER PILOT VALVE HC-RCM/1	1
4	4011000458	BOLT GB16674-M8*20EpZn-8.8	2
5	4011000230	BOLT GB16674-M10*65EpZn-8.8	16
6	2912001461	RUBBER PLATE	4
7	2912001462	PRESS PLATE	2
8	4041001121	PIPE LGB127-414170	2
9	2912001464	PRESS PLATE	12
10	2912001465	OIL TUBE TO CHAMBER OF LIFTING CYLINDER	2
11	4030000504	O-RING GB3452.1-25.8*1.80G	2
12	4041000708	PLUG LGB142-03620	2
13	4041000150	STAIGHT JOINT LGB120-01814	2
14	4041000767	O-RING LGB168-11124	9
15	4041000506	软管 LGB128-005126 PIPE LGB128-005126	1
16	4030000182	CONTROL VALVE D32A-18	1
17	4011000149	BOLT GB16674-M16*50EpZn-8.8	5
18	2912000754	SET PLATE OF OIL INLET TUBE	1
19	2912001493	WASHER	19
20	2912000766	JOINT	7
21	4041000505	PIPE LGB125-005138	3
22	4011000477	BOLT GB16674-M12*35EpZn-8.8	18
23	4041000010	FLANGE LGB117-314651	2
24	4030000130	O-RING GB3452.1-47.5*3.55G	4
25	2912000003	OIL OUTLET TUBE OF OIL INLET TUBE	1
26	2912001212	FTEADY REST	1
27	4013000011	NUT GB6170-M12EpZn-8	9
28	4015000168	WASHER GB97.1-12EpZn-300HV	9
29	4041000011	FLANGE LGB117-314650	2
30	4041000894	PIPE LGB161-014135	1
31	2912000763	PIPE OF PILOT (A、B)	6
32	2912000762	PIPE OF PILOT VALVE 2C	1
33	4011000344	BOLT JB999-M141.532-35	4
34	2912001100	REAR PIPE FROM LIFTING CYLINDER TO SELECTION VALVE	1
35	4041001011	PIPE LGB165-014160	1
36	4041000577	STAIGHT JOINT LGB120-03633	2
37	4041000765	O-RING LGB168-12931	2
38	2912001220	PIPE SELECTION VALVE TO BLOCK	1
39	4041000604	STAIGHT JOINT LGB120-01614	4
40	2912001211	BLOCK	1
41	4011000279	BOLT GB16674-M10*60EpZn-8.8	6
42	2912001224	PIPE BLOCK TO HYDRAULIC TANK ASSEMBLY	1
43	4041000095	STAIGHT JOINT LGB120-02218	1
44	4041000768	O-RING LGB168-11524	1
45	4041000143	STAIGHT JOINT LGB120-02222	2
46	4041000771	O-RING LGB168-11924	2
47	2912001085	FRONT PIPE OF PILOT VALVE	2
48	2912001032	BOLT	2
49	2912001338	WASHER	6
50	2912001034	STAIGHT JOINT	2
51	2912001033	OIL RETURN PIPE OF PILOT VALVE	1
52	2912001226	OIL RETURN PIPE OF PILOT VALVE	1
53	2912001522	WASHER	2
54	4011000366	BOLT JB999-M181.540EpZn-35	1
55	2912000765	JOINT	4
56	4011000461	BOLT GB16674-M8*16EpZn-8.8	8
57	2912000767	CLAMP	4
58	2912001479	FRONT CAP	1
59	4011000475	BOLT GB16674-M10*30EpZn-8.8	8
60	4030000029	O-RING GB3452.1-37.5*3.55G	2
61	4041000027	FLANGE LGB117-312551	2
62	2912001481	OIL TUBE OF CONTROL VALVE (R)	1
63	4041000503	PIPE LGB161-005126	1
64	4041000502	PIPE LGB161-005075	2
65	4041000210	PIPE LGB161-005091	1
66	4041000954	U-BOLT LGB159-14254	2
67	4041000955	BOTTOM SHEET LGB160-4254	2
68	2912001119	TWO-WAY PILOT OIL PIPE GROUP 2	2
69	4011000479	BOLT GB16674-M12*30EpZn-8.8	8
70	4041000652	PIPE LGB129-005090	8
71	4120000448	PRESSURE SELECTION VALVE SF8-C	1
72	2912000755	OIL INLET PIPE OF SELECTION VALVE	1
73	2912000756	OIL RETURN PIPE OF SELECTION VALVE	1
74	4041000774	PLUG LGB135-01422	3
75	2912001215	OIL INLET TUBE OF OIL INLET TUBE	1
76	4011000056	BOLT GB5782-M12*145EpZn-8.8	1
77	4011000057	BOLT GB5872-M12*165EpZn-8.8	2
78	2912001483	OIL TUBE OF CONTROL VALVE (L)	1
