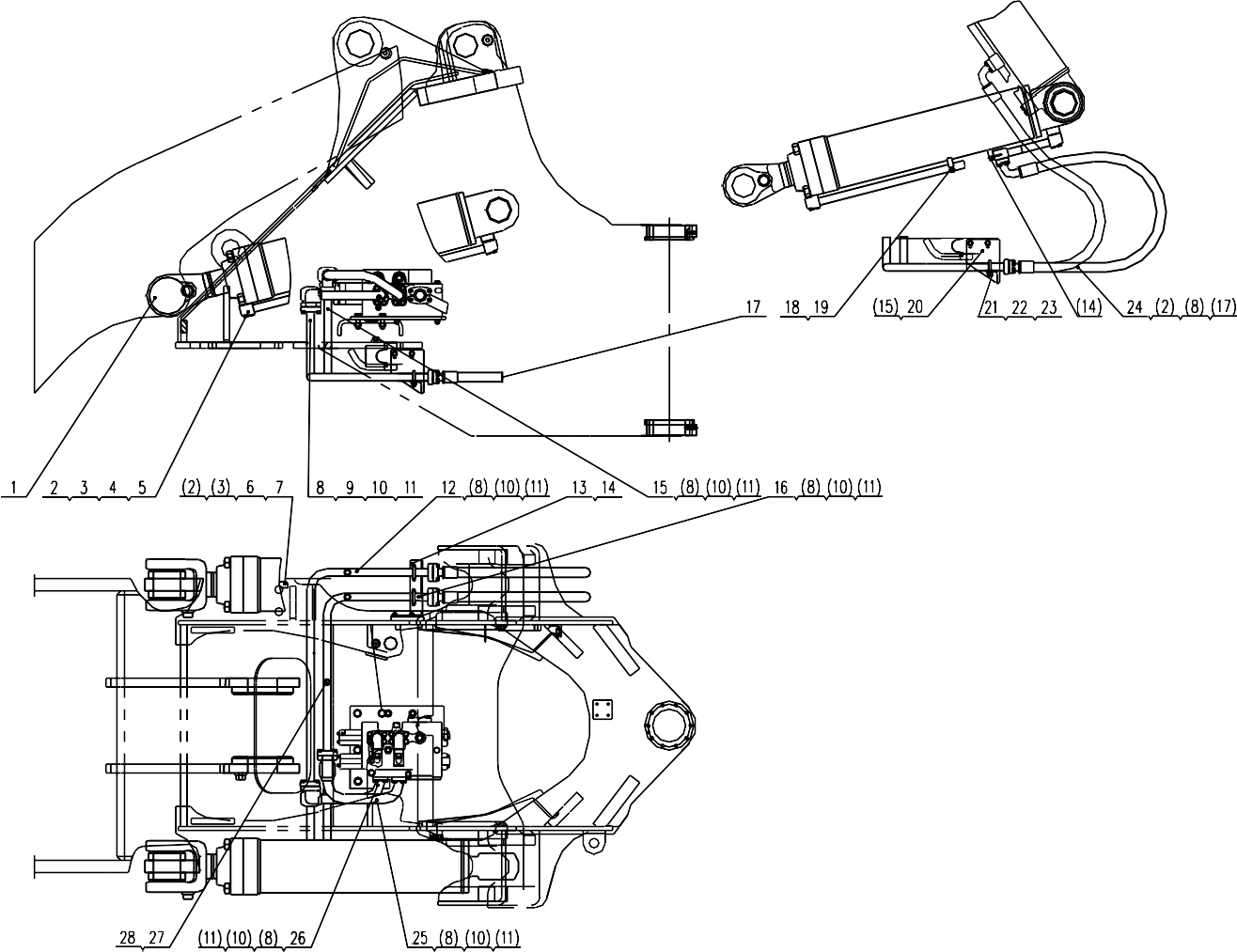

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 4120000600 | LIFTING CYLINDER HSGF-180*100*7798-1348 | 2 |
| 2 | 4030000026 | O-RING GB3452.1-32.5*3.55G | 12 |
| 3 | 4011000473 | BOLT GB16674-M10*55EpZn-8.8 | 16 |
| 4 | 2913000851 | OIL TUBE TO SMALLL CHAMBER OF LEFT LIFTING CYLINDER | 1 |
| 5 | 2913000003 | OIL TUBE TO BIG CHAMBER OF LEFT LIFTING CYLINDER | 1 |
| 6 | 2913000845 | OIL TUBE TO SMALLL CHAMBER OF RIGHT LIFTING CYLINDER | 1 |
| 7 | 2913000005 | OIL TUBE TO BIG CHAMBER OF RIGHT LIFTING CYLINDER | 1 |
| 8 | 4011000475 | BOLT GB16674-M10*30EpZn-8.8 | 56 |
| 9 | 2913000854 | OIL TUBE OF LIFTING CYLINDER (L) | 1 |
| 10 | 4041000056 | FLANGE LGB117-312550 | 6 |
| 11 | 4030000029 | O-RING GB3452.1-37.5*3.55G | 6 |
| 12 | 2913000847 | OIL TUBE OF LIFTING CYLINDER (R) | 1 |
| 13 | 2913000856 | RIGHT FIX PLATE | 1 |
| 14 | 4011000488 | BOLT GB16674-M10*16EpZn-8.8 | 8 |
| 15 | 2913000965 | OIL TUBE OF LIFTING CYLINDER (L) | 1 |
| 16 | 2913000964 | OIL TUBE OF LIFTING CYLINDER (R) | 1 |
| 17 | 4041000043 | FLANGE LGB117-310490 | 8 |
| 18 | 2913000011 | CLAMP | 2 |
| 19 | 4011000458 | BOLT GB16674-M8*20EpZn-8.8 | 4 |
| 20 | 2913000857 | LEFT FIX PLATE | 1 |
| 21 | 4011000556 | U-BOLT JB/ZQ4321-33Zn-Q235A·F | 4 |
| 22 | 4013000007 | NUT GB6170-M10EpZn-8 | 8 |
| 23 | 4015000162 | WASHER GB97.1-10EpZn-300HV | 8 |
| 24 | 4041000649 | PIPE OF LGB106-010130 | 4 |
| 25 | 2913000752 | BIG THREE-WAY OIL TUBE TO CHAMBER OF LIFTING CYLINDER | 1 |
| 26 | 2913000014 | SMALL THREE-WAY OIL TUBE TO CHAMBER OF LIFTING CYLINDER | 1 |
| 27 | 4041000774 | PLUG LGB135-01422 | 3 |
| 28 | 4041000767 | 3 |
