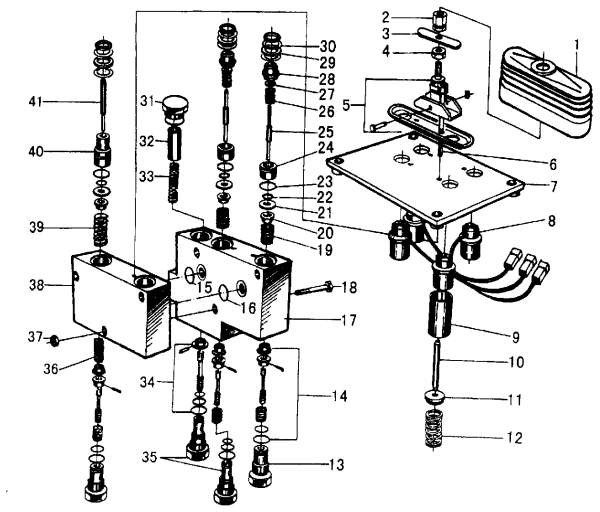

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | RUBBER COVER | 2 | |
| 2 | THREAD RETAINER | 2 | |
| 3 | PIVOT PLATE | 2 | |
| 4 | NUT | 2 | |
| 5 | CLAMP PIN GROUP | 2 | |
| 6 | SET BOLT | 4 | |
| 7 | SET PLATE | 1 | |
| 8 | COIL ASSEMBLY | 4 | |
| 9 | SPRING GUIDE | 4 | |
| 10 | PLUNGER | 4 | |
| 11 | SPRING RETAINER | 4 | |
| 12 | RETURNING SPRING | 4 | |
| 13 | VALVE SEAT | 3 | |
| 14 | METERING VALVE STEM | 4 | |
| 15 | SEALING RING | 1 | |
| 16 | SEALING RING | 1 | |
| 17 | VALVE BOLCK ,LIFTING PORTION | 1 | |
| 18 | BOLT | 1 | |
| 19 | METERING SPRING | 2 | |
| 20 | RETAINER | 8 | |
| 21 | SPACER | 4 | |
| 22 | SEALING RING | 4 | |
| 23 | SEALING RING | 4 | |
| 24 | FLANGE | 2 | |
| 25 | PUSH ROD | 2 | |
| 26 | SPRING | 2 | |
| 27 | SPACER | 2 | |
| 28 | GUIDE RETAINER | 2 | |
| 29 | SPACER | 8 | |
| 30 | ISOLATOR | 8 | |
| 31 | THREAD PLUG | 1 | |
| 32 | SPRING GUIDE | 1 | |
| 33 | SPRING | 1 | |
| 34 | METERING VALVE STEM | 1 | |
| 35 | VALVE SEAT | 2 | |
| 36 | SPRING | 2 | |
| 37 | NUT | 3 | |
| 38 | VALVE BOLCK ,TILTTING PORTION | 1 | |
| 39 | SPRING | 2 | |
| 40 | GUIDE RETAINER | 2 | |
| 41 | PUSH ROD | 2 |
