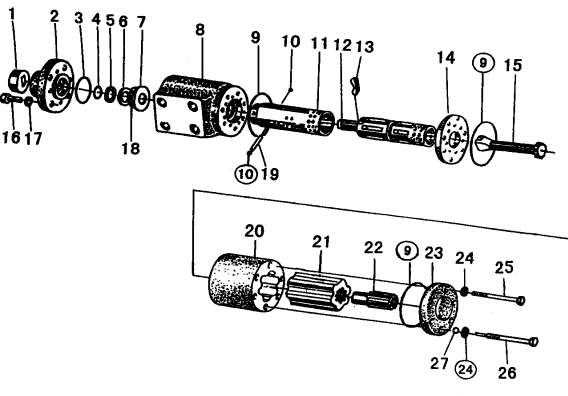

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | CONNECTING BLOCKS MODULE | 1 | |
| 2 | FRONT COVER | 1 | |
| 3 | O-RING | 1 | |
| 4 | O-RING | 1 | |
| 5 | X-RING | 1 | |
| 6 | GASKET | 1 | |
| 7 | GASKET | 1 | |
| 8 | VALVE BLOCK | 1 | |
| 9 | O-RING | 3 | |
| 10 | GASKET | 2 | |
| 11 | VALVE SLEEVE | 1 | |
| 12 | VALVE STEM | 1 | |
| 13 | SPRING SLIP | 6 | |
| 14 | ISOLATING PLATE | 1 | |
| 15 | COUPLING SHAFT | 1 | |
| 16 | SCREW | 4 | |
| 17 | WASHER | 4 | |
| 18 | THRUST NEEDLE BEARING | 1 | |
| 19 | CENTER PIN | 1 | |
| 20 | STATOR MODULE | 1 | |
| 21 | ROTOR | 1 | |
| 22 | STOPPER | 1 | |
| 23 | REAR COVER | 1 | |
| 24 | SEAL RING | 7 | |
| 25 | BOLT | 6 | |
| 26 | CAGING BOLT MODULE | 1 | |
| 27 | STEEL BALL | 1 |
