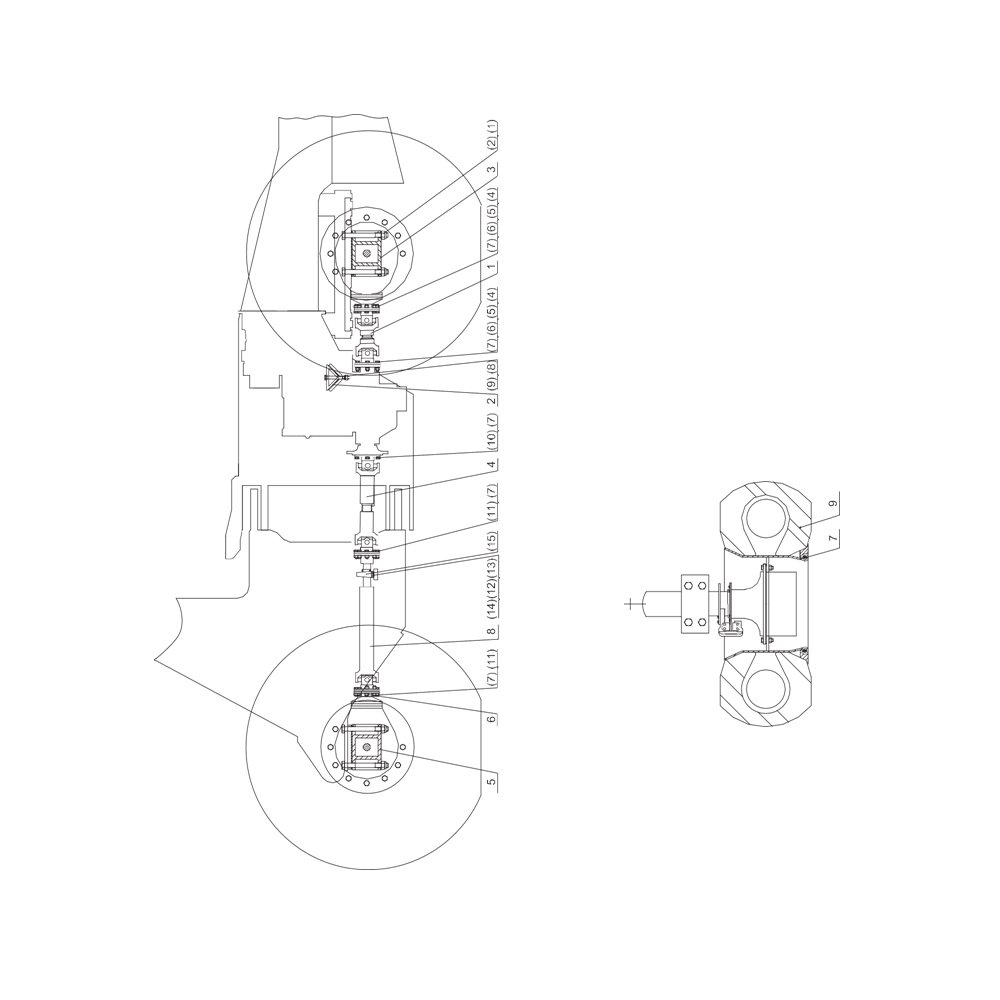

SL50W FIG.1 DRIVE SYSTEM

NO.	PART NO.	PART NAME	QTY
1	ZL50G3-04001	Rear drive shaft assy.	1
2	ZL50G3-04002	Gearbox damper pad	2
3	ZL50G2-04200	Rear drive axle	1
4	ZL50G3-04004	Middle drive shaft assy.	1
5	ZL50G2-04100	Front drive axle	1
6	ZL50G2-04001	Double-screw bolt	4
7	ZL50G2-04008	Rim assy.	4
8	ZL50G3-04009	Front drive shaft assy.	1
9	ZL50G2-04010	Tyre assy.	4

-1	GB889 M30×2	Nut	16
-2	GB5785 M30×2×270	Bolt	16
-4	GB95 16	Flat washer	8
-5	GB6171 M16×1.5	Nut	36
-6	GB5785 M16×1.5×50	Bolt	16
-7	GB93 16	Spring washer	44
-8	GB5782 M18×1.5×140	Bolt	2
-9	GB889 M18×1.5	Nut	2
-10	GB5786 M16×1.5×35	Bolt	8
-11	GB5785 M16×1.5×45	Bolt	12
-12	GB93 20	Spring washer	2
-13	GB5783 M20×55	Bolt	2
-14	GB95 20	Washer	2
-15	UCP212	Bearing	1
