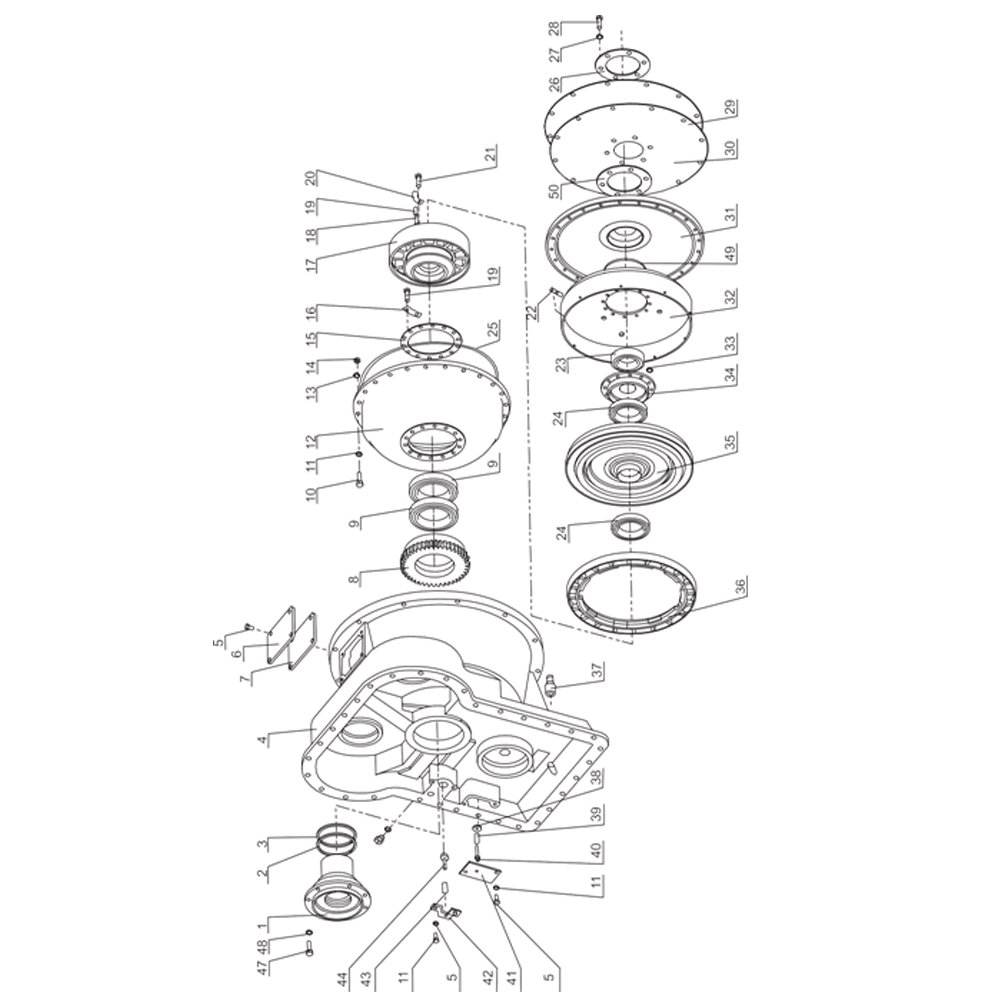

| NO. | PART NO. | PART NAME | QTY |
| 0 | 4WY315A | Hydraulic torque converter | 1 |
| 1 | 4WY335-002 | Guide wheel base | 1 |
| 2 | 4WY315-009 | Seal ring | 1 |
| 3 | 4WY315-035 | Seal ring | 1 |
| 4 | 4WY315-007 | Shell | 1 |
| 5 | GB5783 M8×20 | Bolt | 8 |
| 6 | 4WY315-015 | Cover plate | 1 |
| 7 | 4WY315-016 | Paper gasket | 1 |
| 8 | 4WY315A-011 | Gear | 1 |
| 9 | GB276 6017 | Ball bearing | 2 |
| 10 | GB5783 M8×40 | Bolt | 24 |
| 11 | GBT93 8 | Spring washer | 24 |
| 12 | 4WY315A-014 | Pump wheel | 1 |
| 13 | GB93 8 | Spring washer | 24 |
| 14 | GB6170 M8 | Nut | 24 |
| 15 | 4WY315-012 | Press plate | 1 |
| 16 | 4WY315-013 | Gasket | 7 |
| 17 | 4WY315A-008 | Guide wheel | 1 |
| 18 | GB879.1 8×24 | Cylinder pin | 2 |
| 19 | GB5783 M8×30 | Bolt | 14 |
| 20 | 4WY335-001 | Gasket | 4 |
| 21 | GB5783 M8×30 | Bolt | 6 |
| 22 | 4WY335-203 | Pin | 9 |
| 23 | NSK 6210 | Bearing | 1 |
| 24 | NSK 6013 | Bearing | 1 |
| 25 | 4WY335-010 | O-ring | 1 |
| 26 | 4WY335-015/16/17/18 | Round gasket | 1 |
| 27 | GBT93 12 | Spring washer | 6 |
| 28 | GB5783 M12×30 | Bolt | 6 |
| 29 | 4WY315-001 | Gasket | 6 |
| 30 | 4WY315-002 | Spring plate | 2 |
| 31 | 4WY335-004A | Hood plate | 1 |
| 32 | 4WY315A-202 | First-lever turbo hood | 1 |
| 33 | GB869 8×16 | Rivet | 12 |
| 34 | 4WY335-101 | Second-level turbo base | 1 |
| 35 | 4WY315A-102 | Second-level turbo | 1 |
| 36 | 4WY315A-204 | First-level turbo | 1 |
| 37 | 402111X13 | Joint | 1 |
| 38 | 4WY315-023 | Gasket | 1 |
| 39 | 4WY315-027 | Spring | 1 |
| 40 | 4WY315-025 | Valve rod | 2 |
| 41 | 4WY315-028 | Base plate | 1 |
| 42 | 4WY315-036 | Valve body | 1 |
| 43 | 4WY315-024 | Spring | 1 |
| 44 | 4WY315-026 | Valve cover | 1 |
| 47 | GB5783 M10×30 | Bolt | 8 |
| 48 | GB93 10 | Spring washer | 8 |
