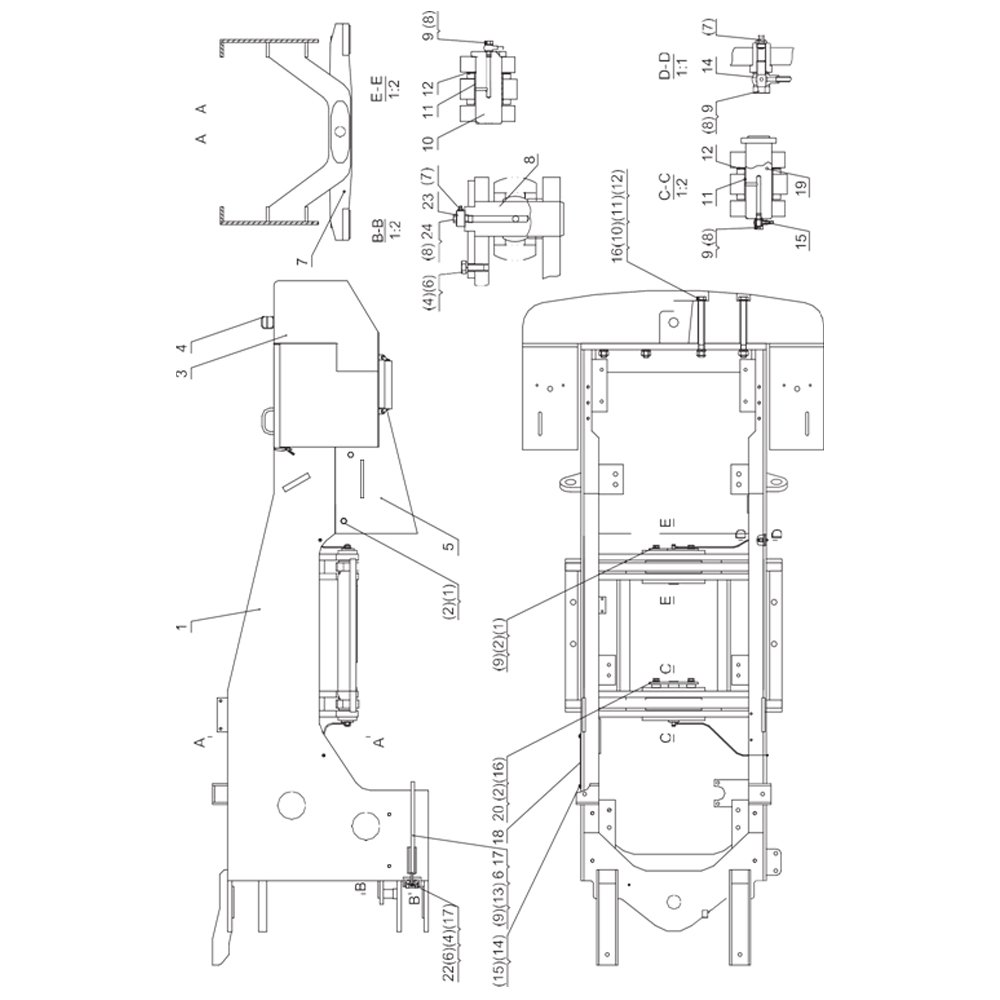

| NO. | PART NO. | PART NAME | QTY |
| 1 | ZL50FIII(A)-10100 | 车架体 Rear frame body | 1 |
| 3 | ZL50G2-10001D | 配重铁 Counterweight iron | 1 |
| 4 | ZL50G2-10002 | 牵引销 Traction pin | 1 |
| 5 | ZL50G2-10300A | 防护罩 Protective hood | 1 |
| 6 | ZL50G2-10012 | 销轴 Pin roll | 2 |
| 7 | ZL50G2-10400 | 副车架 Auxiliary frame | 1 |
| 8 | ZL50G2-10500 | 转向缸轴 Steering cylinder shaft | 2 |
| 9 | ZL50G2-10004 | 铰接螺栓 Link bolt | 4 |
| 10 | ZL50G2-10600B | 副车架轴 Auxiliary frame shaft | 1 |
| 11 | ZL50G2-10005A | 轴套 Shaft bush | 2 |
| 12 | ZL50G2-10006 | 垫片 Gasket | 8 |
| 14 | ZL50FIII-10008A | 油管 Oil tube | 1 |
| 15 | ZL50FIII-10009A | 油管 Oil tube | 1 |
| DG956WII-10009A | 油管 (SL50W-3用) Oil tube(for SL50W-3) | 1 | |
| 16 | ZL50G2-10010 | 平垫 Flat washer | 4 |
| 17 | ZL50FIII(A)-10011 | 锁止板 Lock board | 1 |
| 18 | ZL50G3-10012 | 盖 Cover | 1 |
| 19 | ZL50G2-10700 | 副车架轴 Auxiliary frame shaft | 1 |
| 20 | ZL50G2-10013 | 垫圈 Washer | 1 |
| 22 | ZL50FIII(A)-10015 | 缓冲垫 Pad | 2 |
| 23 | DG930A-09005 | 丝座 Base | 2 |
| 24 | DG930A-09006 | 铰接螺栓 Link bolt | 2 |
| (1) | GB5783 M20×40 | Bolt | 6 |
| (2) | GB93 20 | Spring washer | 8 |
| (4) | GB93 12 | Spring washer | 4 |
| (6) | GB5783 M12×25 | Bolt | 4 |
| (7) | GB1152 M10×1 | Oil cup | 4 |
| (8) | JB982 10 | Combined washer | 12 |
| (9) | GB95 20 | Flat washer | 4 |
| (10) | GB5782 M30×330 | Bolt | 4 |
| (11) | GB93 30 | Spring washer | 4 |
| (12) | GB6170 M30 | Nut | 4 |
| (13) | GB91 5×36 | Cotter pin | 2 |
| (14) | GB93 8 | Spring washer | 3 |
| (15) | GB5781 M8×16 | Bolt | 3 |
| (16) | GB5783 M20×35 | Bolt | 2 |
| (17) | GB95 12 | Flat washer | 2 |
