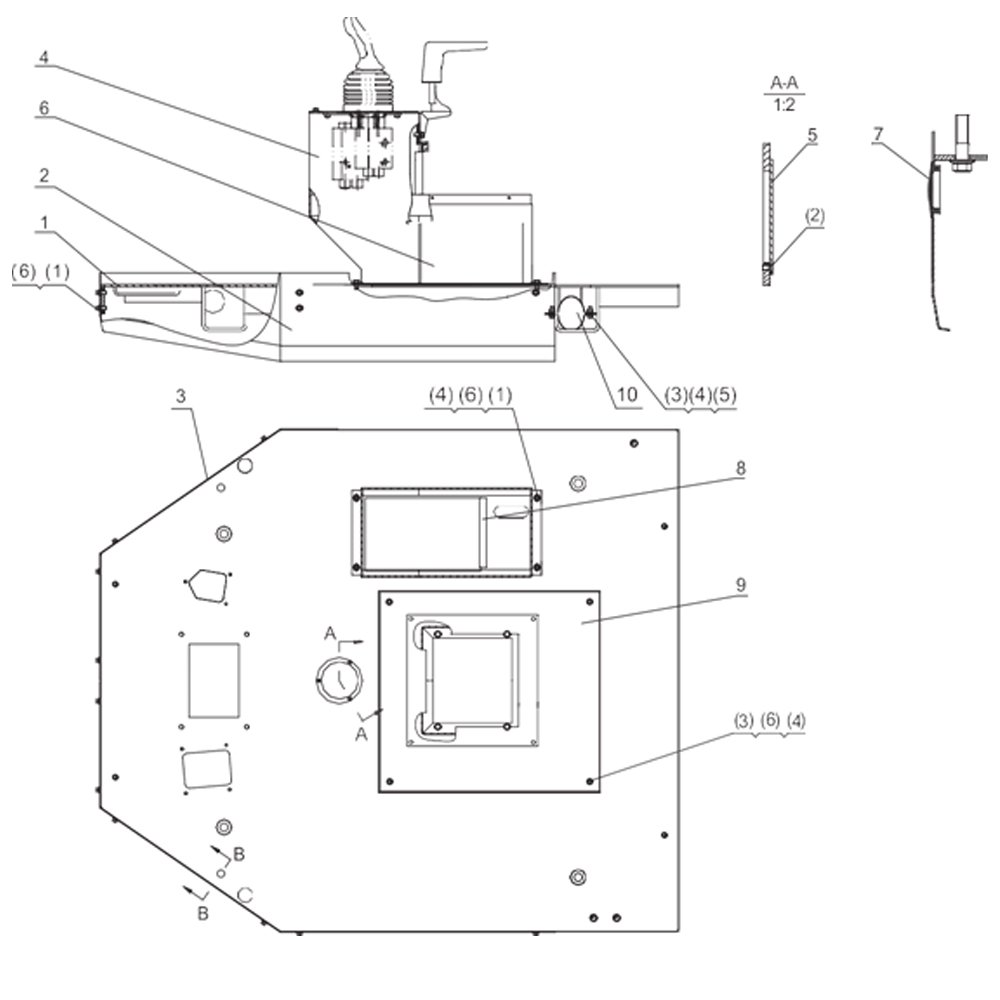

| NO. | PART NO. | PART NAME | QTY |
| 1 | DG956-A13201 | 台座 Pedestal | 1 |
| 2 | DG956-A13202 | 挡板 Baffle | 1 |
| 3 | DG956-A13203 | 挡板 Baffle | 1 |
| 4 | DG956-A13204A | 先导阀支架（用于双手柄先导阀） Pilot valve bracket | 1 |
| DG956-A13204 | 先导阀支架（用于单手柄先导阀） Pilot valve bracket | 1 | |
| 5 | DG957-13204 | 盖 Cover | 1 |
| 6 | DG956-A13205 | 座椅支架 Seat bearer | 1 |
| 7 | ZLK18-14006 | 橡胶塞 Rubber plug | 2 |
| 8 | ZLK18-14005 | 密封条 Sealing joint strip | 1 |
| 9 | DG956-A13206 | 板 Plate | 1 |
| 10 | DG938-A13201-4-1 | 管夹卡 Clip | 1 |
| (1) | GB5783 M8×16 | 螺栓 M8×16 Bolt | 15 |
| (2) | GB819 M5×10 | 螺钉Z M5×10 Bolt | 3 |
| (3) | GB5783 M8×20 | 螺栓 M8×20 Bolt | 10 |
| (4) | GB93 8 | 弹垫8 Spring washer | 14 |
| (5) | GB6170 M8 | 螺母M8 Nut | 2 |
| (6) | GB95 8 | 平垫8 Flat washer | 29 |
