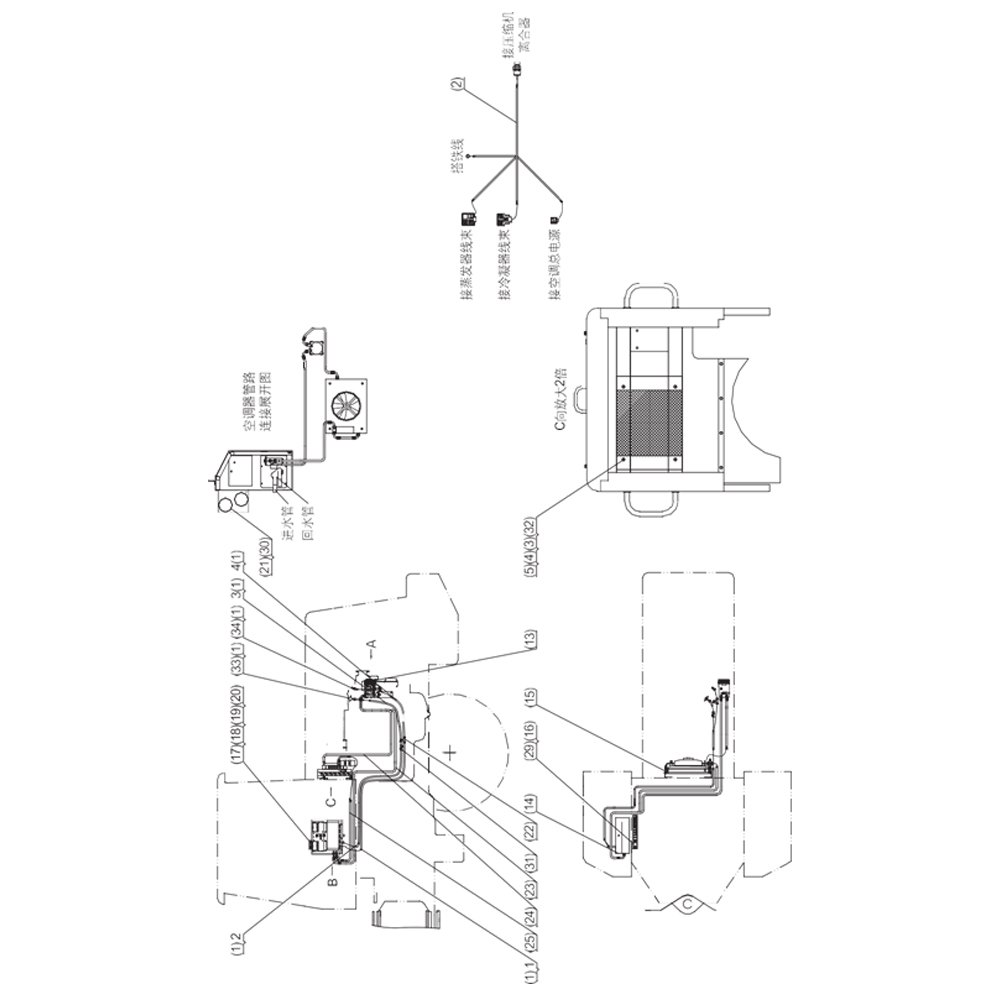

| NO. | PART NO. | PART NAME | QTY |
| 1 | DG956-A17001 | 暖风机出水管 Outlet Pipe | 1 |
| 2 | DG956-A17002 | 暖风机进水管 Inlet Pipe | 1 |
| 3 | DG956-A17003 | 发动机进水管 Inlet Pipe | 1 |
| 4 | DG956-A17004 | 发动机回水管 Outlet Pipe | 1 |
| 0 | D2061-51000 | 空调总成 Air conditioner assy. | 1 |
| (1) | JB3618.1 16～25 | 双钢丝卡箍16～25 Clamp | 8 |
| (2) | TSGX05010X | 空调线束 Air Condition Wire | 1 |
| (3) | GB95 10 | 垫圈10 Washer | 9 |
| (4) | GB93 10 | 垫圈10 Washer | 9 |
| (5) | GB6170 M10 | 螺母M10 Nut | 9 |
| (6) | GB5781 M10×45 | 螺栓M10×45 Bolt | 5 |
| (7) | GB6170 M14 | 螺母M14 Nut | 3 |
| (8) | GB95 14 | 垫圈14 Washer | 2 |
| (9) | GB93 14 | 垫圈14 Washer | 1 |
| (10) | GB5781 M12×50 | 螺栓M12×50 Bolt | 4 |
| (11) | GB93 12 | 垫圈12 Washer | 4 |
| (12) | GB95 12 | 垫圈12 Washer | 4 |
| (13) | DY5H14 | 压缩机 Compressor | 1 |
| (14) | TSZW05.DG07 | 蒸发器 Evaporator | 1 |
| (15) | TSL05-DG09 | 冷凝器总成 Condenser asy | 1 |
| (16) | GB819 M4×12 | H螺钉M4×12 Screw | 4 |
| (17) | GB5781 M8×30 | 螺栓M8×30 Bolt | 1 |
| (18) | GB93 8 | 垫圈8 Washer | 4 |
| (19) | GB95 8 | 垫圈8 Washer | 4 |
| (20) | GB6170 M8 | 螺母M8 Nut | 4 |
| (21) | JB3618.1 65～70 | 双钢丝卡箍65～70 Clamp | 4 |
| (22) | TSZN05.DG01-02000000 | 放水开关 Release switch | 1 |
| (23) | TSGX05023D | 蒸发器至压缩机低压胶管 Hose | 1 |
| (24) | TSGX05023G1 | 压缩机至冷凝器高压胶管 Hose | 1 |
| (25) | TSGX05007G2 | 干燥储液器至蒸发器高压胶管 Hose | 1 |
| (26) | TSPZ.SYm | 压缩机支架 Compressor frame | 1 |
| (27) | TSPZ.SYm-0001 | 涨紧螺栓 Bolt | 1 |
| (28) | V13×1560 | 皮带 Belt | 1 |
| (29) | DG938-KTTJMB | 空调调节面板 Air condition adjust panel | 1 |
| (30) | DG938-FD1 | 风道 Duct | 2 |
| (31) | DG938-ZLF | 止流阀 Only flow valve | 1 |
| (32) | GB5781-86 M10×35 | 螺栓M10×35 Bolt | 4 |
| (33) | DYZN05.DG01-0300000 | 过渡接头 Transition joints | 1 |
| (34) | DYZN05.DG01-0000002 | 出水接头 Outlet joint | 1 |
