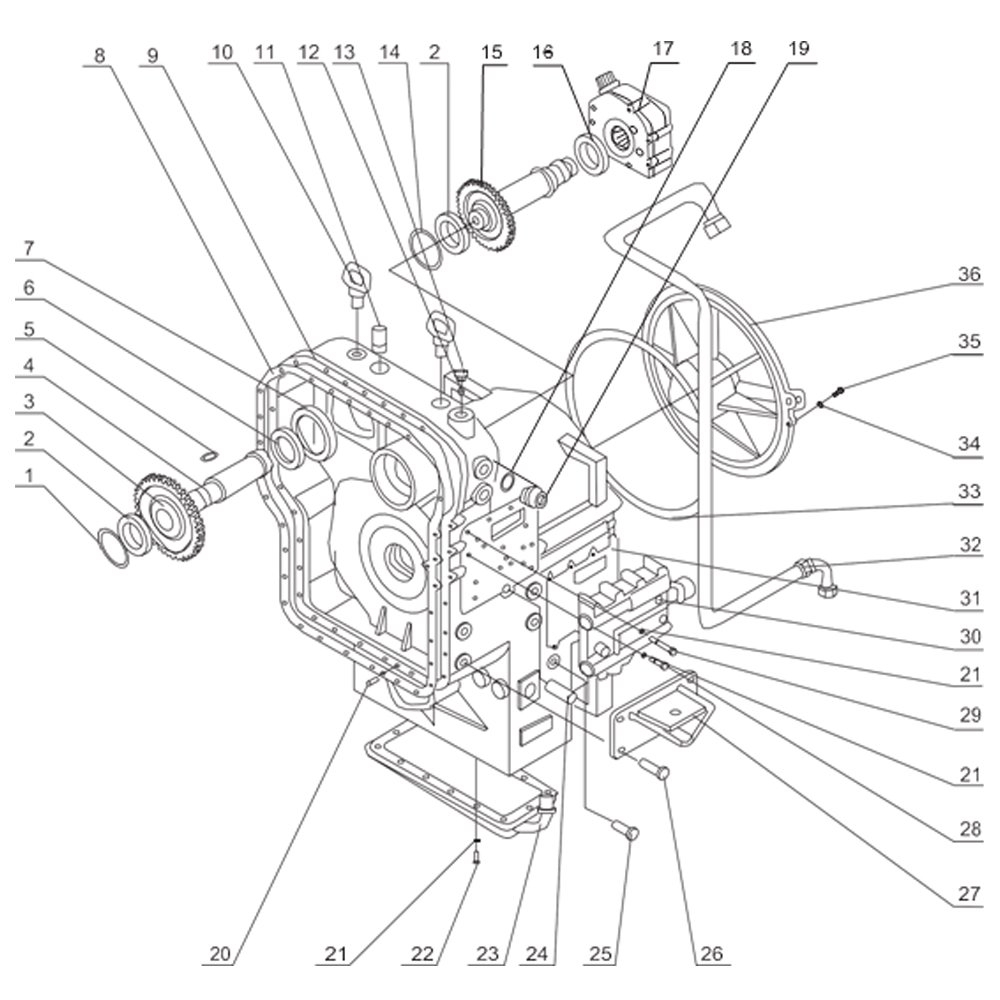

SL50W FIG.11 GEARBOX CASE PART(HANGZHOU ADVANCE)

NO.	PART NO.	PART NAME	QTY
1	GB894.1 90	Circlip for shaft	2
2	GB276 6210N	Ball bearing	2

3	503056A	Drive gear	1
4	403055X7B	Drive shaft	1
5	GB1096 14×9×36	Flat key	1
6	GB276 6012	Ball bearing	1
7	403057	Bearing holder	1
8	403021	Gasket seal	1
9	403005A	Case	1
10	GB825 M20	Eye screw	2
11	403024-27	Aeration cap	1
12	403028	Cone plug	1
13	403223	Plug screw	1
15	503610A	Shaft gear	1
16	GB276 6211	Ball bearing	1
17	403601-608X2	Gear pump	1
18	402106	Washer	2
19	402111	Gearbox joint	4
20	GB119.1 10m6×30	Column pin	1
21	GB93 10	Washer	78
22	GB5783 M10×25	Bolt	14
23	403400A	Oil sump tank	1
24	403022	Column pin	1
25	ZL50-03-JYS	Plug	1
26	GB5783 M18×40	Bolt	8
27	403032-34	Connect seat	2
28	GB5782 M10×75	Bolt	4
29	GB5782 AM10×70	Bolt	12
30	503700-001	Gearshift control valve	1
31	ZL50C 301 003	Gasket	1
32	402007-14	Sucker	1
33	403001	Gasket	1
34	GB93 10	Washer	2
35	GB5783 M10×30	Bolt	38
36	403002	End cover	1
