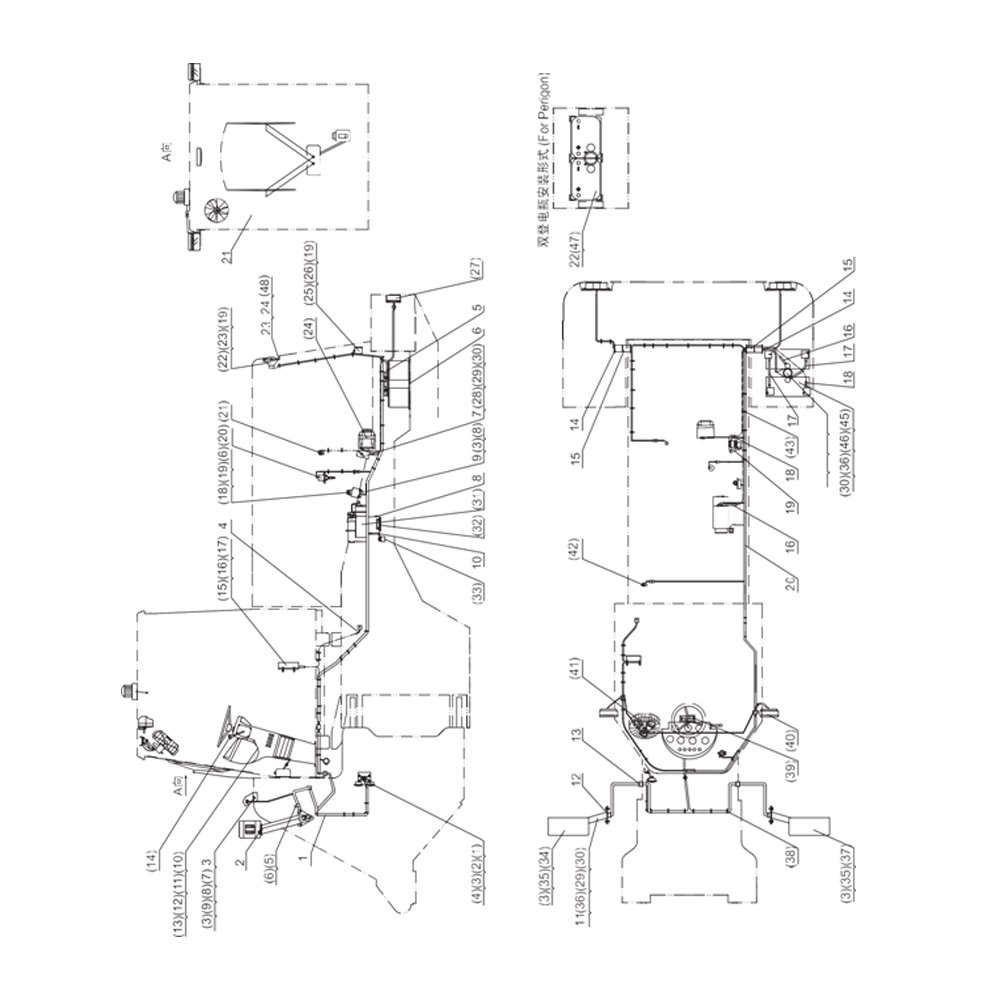

| NO. |
PART NO. |
PART NAME |
QTY |
| 1 |
DG966-15006防 |
前线束 Front wiring harness |
1 |
| 2 |
ZL18-15022 |
绝缘套3 Insulation covering 3 |
2 |
| 3 |
DG966-15022 |
护板(先导操纵用) Protective board(for Pilot control) |
1 |
| 4 |
DG956WⅡ-15500 |
电脑盒线束 Wiring harness to computer box |
1 |
| 5 |
ZL50G2-15025 |
橡胶板100×180 Rubber board |
1 |
| 6 |
ZL50G2-15001 |
橡胶板400×180 Rubber board |
2 |
| 7 |
ZL50G3-15019 |
电源开关安装版 Mounting board to power switch |
1 |
| 8 |
ZL50G2-15023 |
安装版 Mounting board |
1 |
| 9 |
DG956WⅣ-15020 |
预热线束1 (配康明斯用) Preheating wiring harness 1(for CUMMINS) |
1 |
| 10 |
DG956WⅣ-15021 |
预热线束2(配康明斯用) Preheating wiring harness 2(for CUMMINS) |
1 |
| 11 |
ZL50G2-A15008-R |
灯架总成(右) Lamp frame assy.(R) |
1 |
|
ZL50G2-A15008-L |
灯架总成(左) Lamp frame assy.(L) |
1 |
| 12 |
ZL18-15021 |
绝缘套2 Insulation covering 2 |
2 |
| 13 |
ZL50G2-15013 |
绝缘套1 Insulation covering 1 |
2 |
| 14 |
ZL50G2-15024 |
绝缘套 Insulation covering |
4 |
| 15 |
ZL50G2-15026 |
橡胶保护套φ32×260 Rubber protective covering |
2 |
| 16 |
DG956WⅡ-15003 |
起动机电源线 Starter power cord |
1 |
|
ZL50G2-15003 |
起动机电源线(配潍柴用) Starter power cord (for WEICHAI) |
1 |
| 17 |
ZL50G2-15010 |
电瓶连接线 Battery connecting wire |
2 |
| 18 |
ZL50G2-15011 |
电瓶搭铁线 Battery ground wire |
1 |
| 19 |
ZL50G2-15012 |
搭铁线 Ground wire |
1 |
| 20 |
DG956WI-15004防 |
后线束(配潍柴用) Rear wiring harness (for WEICHAI) |
1 |
|
DG956WII-15004防 |
后线束(配上柴用) Rear wiring harness (for SHANGCHAI) |
1 |
|
DG956WIV-15004防 |
后线束(配康明斯用) Rear wiring harness (for CUMMINS) |
1 |
| 21 |
DG953-B15013 |
驾驶室电气安装图 Driver′s cab electrical fitting drawing |
1 |
| 22 |
ZL50G2-15001A |
橡胶板490×180 Rubber board |
1 |
| 23 |
ZL50G2-15030 |
右后灯罩总成(配WD10G220E21) R/r shade assy |
1 |
| 24 |
ZL50G2-15031 |
左后灯罩总成(配WD10G220E21) L/r shade assy |
1 |
| (1) |
D2712-12500 |
双音盆型喇叭 Twin-horn set |
1 |
| (2) |
GB5781 M8×25 |
螺栓M8×25 Bolt |
2 |
| (3) |
GB93 8 |
弹垫8 Spring washer |
16 |
| (4) |
GB6170 M8 |
螺母M8 Nut |
4 |
| (5) |
D2930-01400 |
连胶条卡箍 Clamp |
8 |
| (6) |
GB818 M6×16 |
螺栓M6×16 Bolt |
14 |
| (7) |
D2580-01000 |
电磁式接近开关(先导操纵用) Battery main switch(for pilot) |
1 |
| (8) |
GB5781 M8×20 |
螺栓M8×20 Bolt |
4 |
| (9) |
GB95 8 |
垫圈8 Washer |
8 |
| (10) |
D2220-05002 |
仪表台(配上柴、徐州思达) Instrument desk assy. |
1 |
|
D2220-05012 |
仪表台(配上柴、江苏华骋) Instrument desk assy. |
1 |
|
D2220-05003 |
仪表台(配康明斯、潍柴、徐州思达) Instrument desk assy. |
1 |
|
D2220-05013 |
仪表台(配康明斯、潍柴、江苏华骋) Instrument desk assy. |
1 |
| (11) |
GB5783 M12×30 |
螺栓M12×30 Bolt |
4 |
| (12) |
GB95 12 |
垫圈12 Washer |
4 |
| (13) |
GB93 12 |
弹垫12 Spring washer |
4 |
| (14) |
D2950-00000 |
电控手柄 Electric control handle |
1 |
| (15) |
D2940-00000 |
电控控制器 Control device |
1 |
| (16) |
GB5781 M6×30 |
半圆头螺钉M6×30 Screw |
4 |
| (17) |
GB6170 M6 |
螺母M6 Nut |
4 |
| (18) |
D2670-00001 |
启动继电器 Starting relay |
1 |
| (19) |
GB93 6 |
弹垫6 Spring washer |
7 |
| (20) |
D2680-02400 |
熄火电磁铁(上柴带) Flameout electromagnet (SHANGCHAI with) |
1 |
|
D2680-02500 |
熄火电磁铁(潍柴带) Flameout electromagnet (WEICHAI with) |
1 |
|
D2680-00001 |
熄火电磁铁(康明斯带) Flameout electromagnet ( CUMMINS with) |
1 |
| (21) |
D2310-00001 |
水温传感器(配康明斯用) Water temperature sensor (for CUMMINS) |
1 |
|
D2310-00003 |
水温传感器 Water temperature sensor |
1 |
| (22) |
D2480-05500 |
方形后大灯 Rear big lamp |
2 |
| (23) |
GB 818 M6×20 |
螺栓M6×20 Bolt |
4 |
| (24) |
D2031-06301 |
发电机总成(上柴带) Generator assy.(SHANGCHAI with) |
1 |
|
D2031-06300 |
发电机总成(潍柴带) Generator assy.(WEICHAI with) |
1 |
|
D2031-07000 |
发电机总成(康明斯带) Generator assy.(CUMMINS with) |
1 |
| (25) |
D2730-08501 |
倒车报警器 Back-up warner |
1 |
| (26) |
GB818 M6×12 |
螺栓M6×12 Bolt |
2 |
| (27) |
D2443-03701 |
三宇后灯 SANYU rear lamp |
2 |
| (28) |
D2551-15000 |
手动电源开关 Manual power switch |
1 |
| (29) |
GB5781 M10×25 |
螺栓M10×25 Bolt |
8 |
| (30) |
GB93 10 |
弹垫10 Spring washer |
12 |
| (31) |
D2051-00700 |
起动机总成(上柴带) Starter assy.( SHANGCHAI with) |
1 |
|
D2051-00800 |
起动机总成(潍柴用) Starter assy.(WEICHAI with) |
1 |
|
D2051-00801 |
起动机总成(康明斯带) Starter assy.( CUMMINS with) |
1 |
| (32) |
D2772-15000 |
吉门保险(配康明斯用) ZEEMAN insurance(for CUMMINS) |
1 |
| (33) |
D2610-10000 |
继电器(康明斯带) Relay(Cummins with) |
1 |
| (34) |
D2400-07502 |
右前组合大灯 R/F big lamp |
1 |
| (35) |
GB5781 M8×30 |
螺栓M8×30 Bolt |
12 |
| (36) |
GB95 10 |
垫圈10 Washer |
8 |
| (37) |
D2400-07501 |
左前组合大灯 L/F big lamp |
1 |
| (38) |
D2900-15000 |
可松开锁式扎带150×8 Clamp |
44 |
| (39) |
D2430-00501 |
顶灯 Top lamp |
1 |
| (40) |
D2470-07500 |
工作灯 Work lamp |
2 |
| (41) |
D2830-00600 |
风扇 Fan |
1 |
| (42) |
D2310-00001 |
变矩器油温传感器 Oil temperature sensor, torque converter |
1 |
| (43) |
D2900-20000 |
可松开锁式扎带200×8 Clamp |
22 |
| (44) |
D2601-20000 |
电磁式电源总开关 Electromagnetic switch |
1 |
| (45) |
D2011-12000 |
免维护蓄电池总成 Accumulator assy. |
1 |
| (46) |
GB 6170 M10 |
螺母M10 Nut |
4 |
| (47) |
D2011-05000 |
免维护蓄电池总成(选装) Accumulator assy. (optinoal) |
1 |
| (48) |
D2481-07500 |
后大灯(配WD10G220E21) Rear lamp |
2 |
