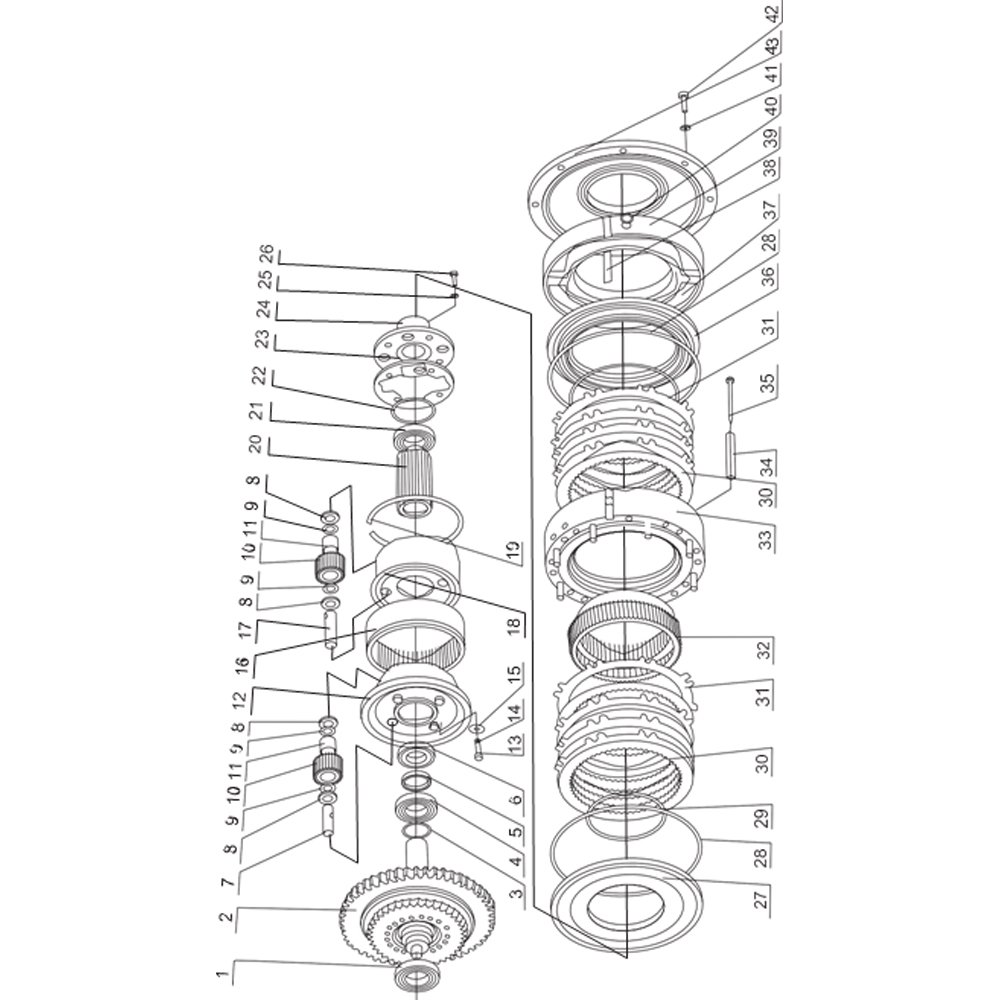

| NO. | PART NO. | PART NAME | QTY |
| 1 | GB276 6211 | 深沟球轴承 6211 Ball bearing | 1 |
| 2 | ZL50C 202 002 | 大超越离合器 Overrun clutch | 1 |
| 3 | 403211 | 隔离环 Spacer ring | 1 |
| 4 | GB276 6210 | 深沟球轴承 6210 Ball bearing | 1 |
| 5 | 403212 | 调整圈 Regulating ring | 1 |
| 6 | GB276 6010 | 深沟球轴承 6010 Ball bearing | 1 |
| 7 | 403221 | 倒档行星轴 Reverse gear planet shaft | 4 |
| 8 | 403217 | 垫圈 Washer | 15 |
| 9 | 403219 | 隔离套 Distance sleeve | 16 |
| 10 | 403218 | 行星轮 Planet wheel | 8 |
| 11 | GB309 Φ4×35 | 滚针Ф4×35 Roller pin | 176 |
| 12 | 403213 | 倒挡行星架 Reverse gear planet frame | 1 |
| 13 | GB5783 M8×14 | 螺栓M8×14 Bolt | 4 |
| 14 | GB93 8 | 弹簧垫圈 8 Washer | 4 |
| 15 | 403215X1 | 止动垫圈 Lockwasher | 4 |
| 16 | 403216 | 倒档内齿圈 Reverse gear internal-geared | 1 |
| 17 | 403227X1 | 一档行星轴 One gear planet shaft | 4 |
| 18 | 403223X1 | 一档行星架 One gear planet frame | 1 |
| 19 | 403220 | 卡圈 Collar | 1 |
| 20 | 403226 | 太阳轮 Sun wheel | 1 |
| 21 | GB305 6210N | 外圈有止动槽的 Ball bearing | 1 |
| 深沟球轴承 6210N | |||
| 22 | GB894.1 90 | 挡圈90 Stop collar | 1 |
| 23 | 403224X1 | 止动盘 Arresting disc | 1 |
| 24 | 403225X1 | 直接当连接盘 Connect disc | 1 |
| 25 | GB93 10 | 弹簧垫圈10 Washer | 17 |
| 26 | GB5786 M10×1.25×30 | 螺栓M10×1.25×30 Bolt | 4 |
| 27 | 403018A | 倒挡活塞体 Piston body | 1 |
| 28 | 403006A | 外密封环 Outer ring seal | 2 |
| 29 | 403020A | 内密封环 Inner ring seal | 1 |
| 30 | 503012-013 | 倒挡一档主动片总成 Active piece assembly | 9 |
| 31 | 403011 | 倒挡一档从动片 Slave piece | 9 |
| 32 | 403222 | 一档内齿圈 One gear internal-geared | 1 |
| 33 | 403014-015 | 摩擦片隔离架总成 Friction disk isolate frame | 1 |
| 34 | 403017 | Assembly | 15 |
| 弹簧 Spring | |||
| 35 | 弹簧销轴 Spring pin | 15 | |
| 36 | 403016 | 内密封环 Inner ring seal | 1 |
| 37 | 403010A | 一档活塞体 One gear piston body | 1 |
| 38 | 403008A | 固定板 Mounted plate | 1 |
| 39 | 403023 | 一挡有缸体 One gear cylinder body | 1 |
| 40 | 403004 | O形圈20×2.4 “O” ring | 1 |
| 41 | GB3452.1 20×2.4 | 弹簧垫圈14 Washer | 8 |
| 42 | GB93 14 | 螺栓M14×40 Bolt | 8 |
| 43 | GB5783 M14×40 403003A | 中盖 Middle cover | 1 |
