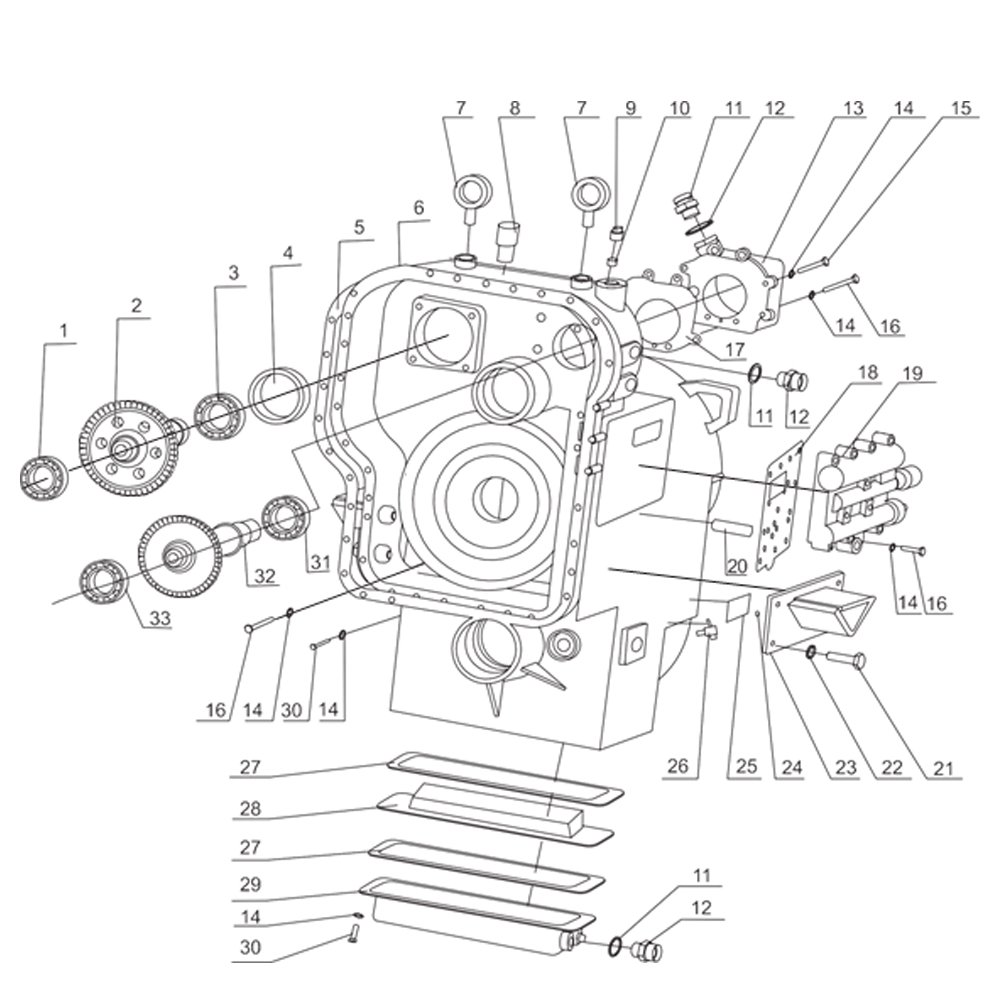

| NO. | PART NO. | PART NAME | QTY |
| 1 | GB276 6210NR | Bearing | 1 |
| 2 | BD15-00011A | Gear | 1 |
| BD15-00012B | Gear | 1 | |
| 3 | GB276 6211 | Bearing | 1 |
| 4 | BD15-00013A | Bearing base | 1 |
| 5 | BD15-00010 | Gasket | 1 |
| 6 | BD15-00005A | Housing | 1 |
| 7 | 04530-12035 | Screw | 2 |
| 8 | BD15-07000 | Breather assembly | 1 |
| 9 | YB315Z5-15 | Plug | 1 |
| 10 | BD15-00017 | Pin | 1 |
| 11 | YB315Z5-14S | Pipe connector | 4 |
| 12 | YB315Z5-09 | Combined washer | 4 |
| 13 | BD15-11000 | Transmission pump | 1 |
| 14 | 01602-11030 | Washer | 61 |
| 15 | 01010-81055 | Bolt | 6 |
| 16 | 01010-81070 | Bolt | 20 |
| 17 | BD15-00007 | Gasket | 1 |
| 18 | BD15-00018 | Gasket | 1 |
| 19 | BD15-09000 | Transmission control valve | 1 |
| 20 | BD15-00019 | Pin | 1 |
| 21 | 01010-81840 | Bolt | 8 |
| 22 | 01602-11854 | Washer | 8 |
| 23 | BD15-10000 | Support | 2 |
| 24 | 04418-03060 | Rivet | 4 |
| 25 | BD15-00025A | Nameplate | 1 |
| 26 | 1305C-010 | Oil Plug | 1 |
| 27 | BD15-06004 | Gasket | 2 |
| 28 | BD15-06100 | Filter module | 1 |
| 29 | BD15-06200 | Crust module | 1 |
| 30 | 01010-81030 | Bolt | 40 |
| 31 | GB276 6012 | Bearing | 1 |
| 32 | BD15-00006A | Shaft gear | 1 |
| 33 | GB276 6210NR | Bearing | 1 |
