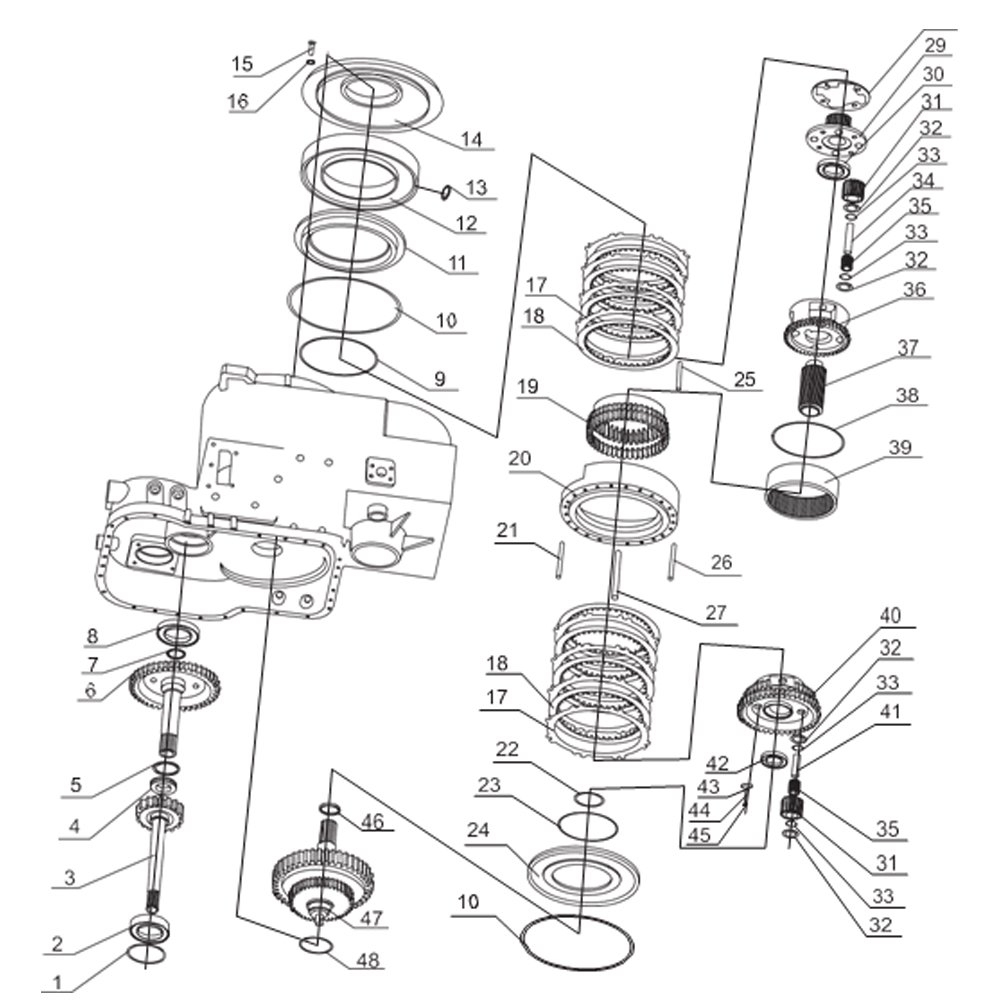

SL50W FIG.20 GEARBOX ASSEMBLY 2

NO.	PART NO.	PART NAME	QTY
1	BD15-01003	旋转油封 Seal	1
2	GB276 6016	轴承6016 Bearing	1
3	BD15-01001A	输入一级齿轮 Gear	1
4	GB301 51111	单向推力球轴承51111 Bearing	1
5	BD15-01004	旋转油封 Seal	1
6	BD15-01002A	输入二级齿轮 Gear	1
7	BD15-01005	调整垫(选配) Adjusting gasket(optional)	1
	BD15-01006	调整垫(选配) Adjusting gasket (optional)	1
	BD15-01007	调整垫(选配) Adjusting gasket (optional)	1
8	GB276 6311	轴承 6311 Bearing	1
9	BD15-05011	一档密封环 Seal	1
10	BD15-05001	外密封环 Seal	2
11	BD15-05008	一档活塞体 Piston	1
12	BD15-05013	一档油缸体 Cylinder body	1
13	07000-72016	O形圈16×2.4 O-ring	1
14	BD15-05010	中盖 Cover	1
15	01010-81440	螺栓M14×40 Bolt	8
16	01602-11442	垫圈14 Washer	8
17	BD15-05007	倒档一档从动片 Passive disc	8
18	BD15-05200	倒档一档主动片 Driving disc	8
19	BD15-05012	一档内齿圈 Ring gear	1
20	BD15-05006	摩擦片隔离架 Bracket	1
21	BD15-05005	弹簧销轴 Pin roll	15
22	04065-09030	孔用挡圈90 Circlip	1
23	BD15-05003	倒档密封环 Seal ring	1
24	BD15-05002	倒档活塞体 Piston	1
25	BD15-05014	固定板 Plate	1
26	BD15-05015	固定销 Pin	8
27	BD15-05004	弹簧 Spring	15
28	BD15-05306	止动盘 Stop pan	1
29	BD15-05307	直接挡连接盘 Connect pan	1
30	GB276 6210N	轴承6210N Bearing	1
31	BD15-05105	行星轮 Planet	8
32	BD15-05102	垫圈 Washer	16
33	BD15-08104	隔离套 Sleeve	16
34	BD15-05305	一档行星轴 Shaft	4
35	GB309 4×35	滚针4×35 Needle	176
36	BD15-05303	一档行星架 Planetary carrier	1
37	BD15-05301	太阳轮 Sun gear	1
38	BD15-05304	挡圈 Snap ring	1
39	BD15-05302	倒档内齿圈 Ring gear	1
40	BD15-05101	倒档行星架 Planetary carrier	1
41	BD15-05103	倒档行星轴 Planetary Shaft	4
42	GB276 6010	轴承6010 Bearing	1
43	BD15-05106	止垫推圈 Shims	4
44	01602-11236	垫圈12 Washer	4
45	GB5785 M12×1.25×30	螺栓 M12×1.25×30 Bolt	4
46	BD15-00001	调整垫(选配) Adjusting gasket(optional)	1
47	BD15-02000	离合器总成 Clutch assembly	1
48	BD15-00002/3/4	调整垫(选配) Adjusting gasket (optional)	1
