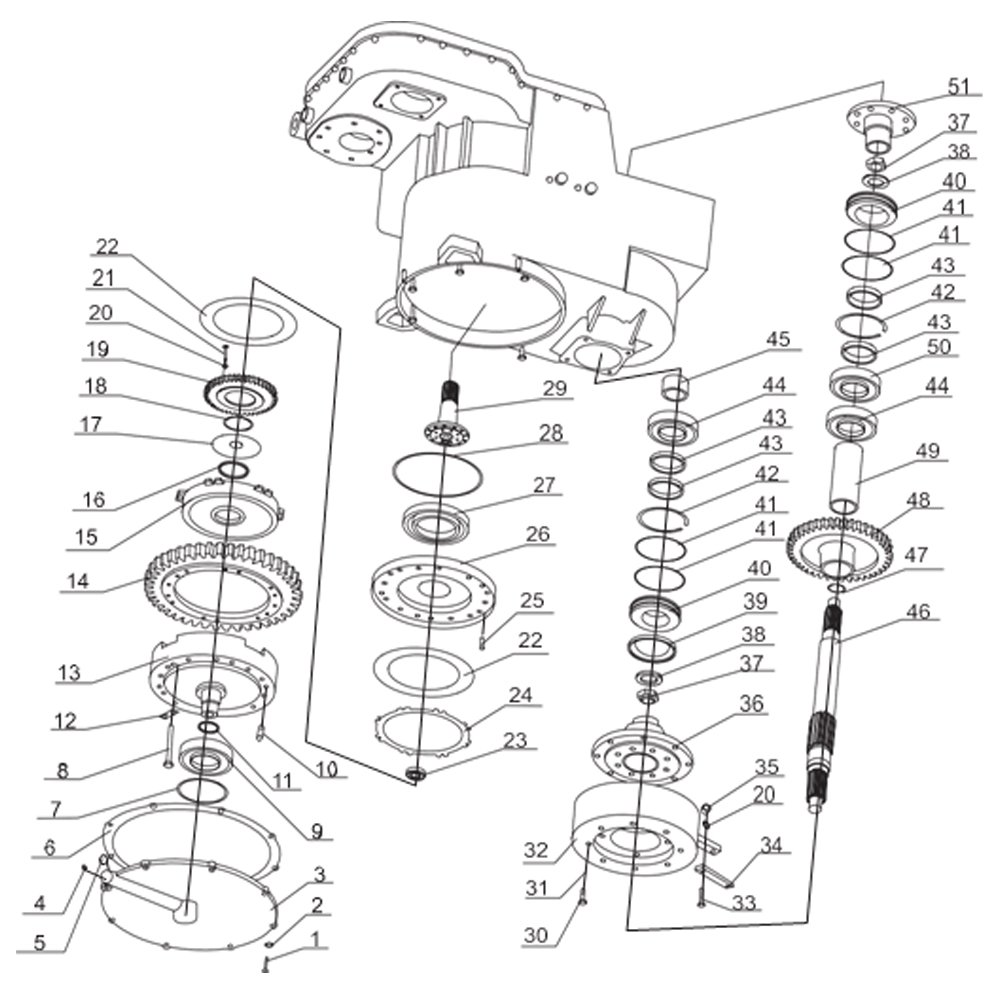

SL50W FIG.21 GEARBOX ASSEMBLY 3

NO.	PART NO.	PART NAME	QTY
1	01016-81030	Bolt	8
2	01602(1)1030	Washer	8
3	BD15-00009	Cover	1
4	07042-00211	Plug screw	1
5	07000-72020	O-ring	1
6	BD15-00008	Gasket	1
7	BD15-00014/15/16	Adjusting gasket(optional	1
8	GB5785 M12×1.25×100	Bolt	12
9	GB276 6411	Bearing	1
10	04020-01030	Pin	2
11	BD15-01004	Seal	1
12	BD15-03004	Lock shim	6
13	BD15-03008	Cylinder body	1
14	BD15-03009A	Mid-shaft output gear	1
15	BD15-03006	Piston	1
16	BD15-01003	Seal	1
17	BD15-03005	Spring	1
18	04064-06525	Circlip	1
19	BD15-03011	Ring gear	1
20	01602(1)1030	Washer	14
21	01010-81020	Bolt	12
22	BD15-03100	Driving disc	2
23	GB276 6204	Bearing	1
24	BD15-03003	Passive disc	1
25	BD15-03010	Pin	1
26	BD15-03002	Pressing pan	1
27	GB276 6022	Bearing	1
28	BD15-03007	Seal	1
29	BD15-03001	Shaft	1
30	GB5785 M12×1.5×30	Bolt	8
31	01602(1)1236	Washer	8
32	BD15(1)2000	Brake assembly	1
33	01010-81035	Nut	2
34	BD15-00024	Brake joint	1
35	01580-01008	Nut	2
36	BD15-04009	Flange	1
37	BD15-04001	锁紧螺母 Lock nut	2
38	BD15-04010	压板 Press plate	1
39	BD15-04008	防护罩 Security cover	1
40	BD15-04003	油封座 Seal base	2
41	07000-05120	O形圈130×5.7 O-ring	4
42	GB893.1 130×3	孔用挡圈130×3 Circlip	2
43	07012-00070	骨架油封70×95×12 Seal	4
44	GB276 6312	轴承6312 Bearing	2
45	BD15-04007	轴套 Shaft sleeve	1
46	BD15-04004	输出轴 Output shaft	1
47	GB3452.3 42.5×5.3	O形圈42.5×5.3 O-ring	1
48	BD15-04006A	输出齿轮 Output gear	1
49	BD15-04005	隔套 Separate cover	1
50	GB276 6410	轴承6410 Bearing	1
51	BD15-04002	后输出法兰 Flange	1
