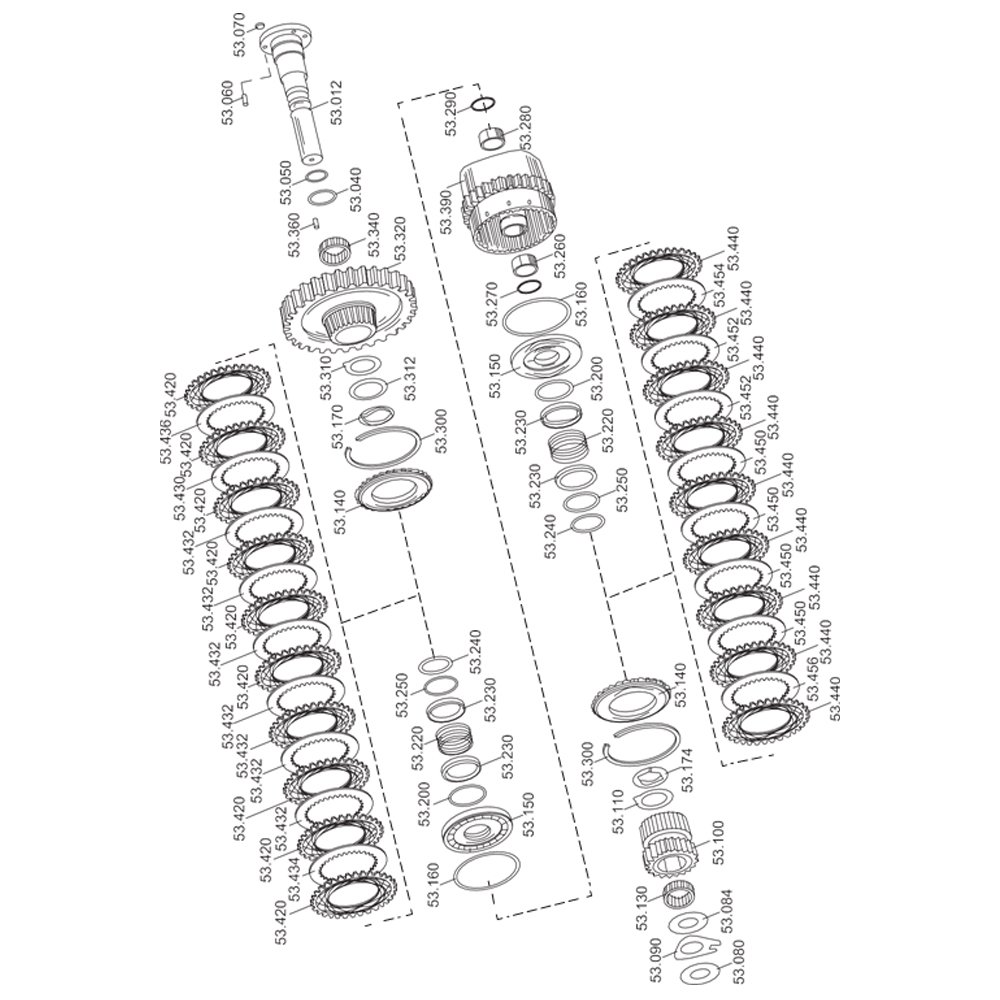

SL50W FIG.35 K3+K4 CLUTCH PART

NO.	PART NO.	PART NAME	QTY
12	4644 353 058	Shaft	1
40	0634 313 536	O-ring	1
50	0734 401 106	Hasp Seal Ring	3
60	GB5783 M8×18	Bolt	2
70	0637 006 018	Nut	2
80	0769 120 468	Adjust Washer	1
84	0730 150 759	Wear Pad	1
90	4644 303 534	Locking Gasket	1
100	4644 308 167	Gear	1
110	0730 150 777	Wear Pad	1
130	0735 358 069	Needle Bearing	1
140	4642 308 185	Bearing Plate	2
150	4644 353 051	Plunger	2
160	0750 112 141	Sketch Seal Ring	2
170	4644 351 094	Stop Plate	1
174	4642 308 555	Stop Plate	1
200	0750 112 140	Sketch Seal Ring	2
220	0732 041 183	Pressure Spring	2
230	4642 308 083	Guide Ring	4
240	0630 531 346	Circlip	2
250	4642 308 084	Guide Ring	2
260	0750 115 182	Needle Bearing	1
270	0730 513 610	Collar	1
280	0635 303 204	Needle Bearing	1
290	0730 513 611	Collar	1
300	0769 124 115	Collar	2
310	0730 150 779	Wear Pad	1
312	0730 109 643	Gasket	1
320	4644 308 171	Gear	1
340	0750 115 109	Rollar Pin Group	1
360	0750 119 048	Pin Rollar	12
390	4644 253 045	Clutch Shell	1
420	0501 309 329	Outside Friction Disk	10
430	4642 308 330	Inside Friction Disk	1
432	4642 308 332	Inside Friction Disk	6
434	4642 308 331	Inside Friction Disk	1
436	0769 129 011	Inside Friction Disk	1
440	0501 309 329	Outside Friction Disk	9
450	4642 308 330	Inside Friction Disk	4
452	4642 308 332	Inside Friction Disk	2
454	4642 308 331	Inside Friction Disk	1
456	0769 129 011	Inside Friction Disk	1
