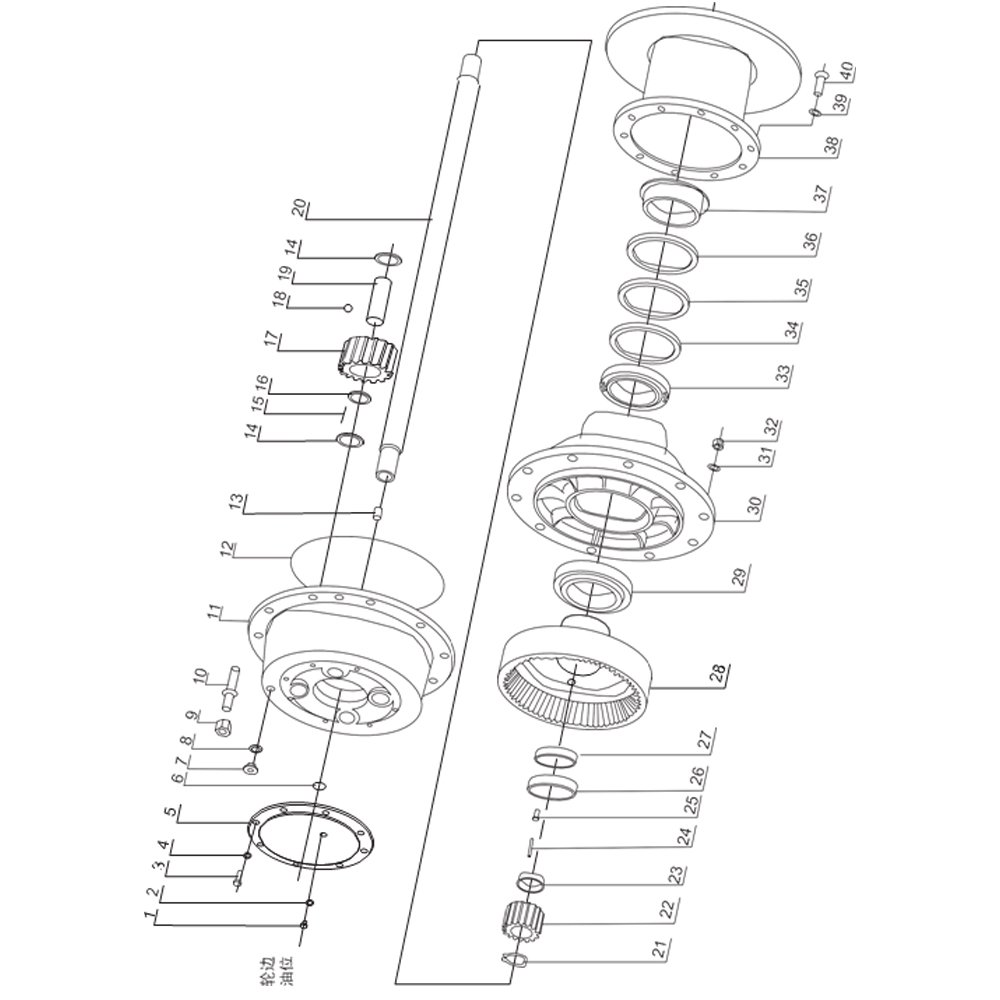

| NO. | PART NO. | PART NAME | QTY |
| 0 | 50M.00 | 轮边总成 Planetary reductor assembly | 2 |
| 1 | 50M.00(1)3 | 轮边油位塞 Plug | 2 |
| 2 | JB982 12 | 合垫圈12 Washer | 2 |
| 3 | GB5785 M12×1.25×30 | 螺栓M12×1.25×30 Bolt | 16 |
| 4 | GB93 12 | 垫圈12 Washer | 16 |
| 5 | 50M.04 | 端盖 Cover | 2 |
| 6 | 50M.00(1)1 | 轮边端盖挡块 Snap ring | 2 |
| 7 | 50M.00-07 | 油位塞 Plug | 4 |
| 8 | GB3452.1 25.8×2.65 | O形密封圈25.8×2.65 O ring | 4 |
| 9 | ZL60D.24.2 | 轮辋螺母合（左/右） Bolt for rim（l/r） | 24 |
| 10 | 404022（QZ） | 轮辋螺栓(左/右） Bolt for rim（l/r） | 24 |
| 11 | 50M.00-05S | 行星轮架 Planet gear carrier | 2 |
| 12 | 50M.00(1)8 | 密封圈 Seal ring | 2 |
| 13 | 50M.00(1)2 | 调整支柱 Adjusting pin | 2 |
| 14 | 50M.00-09 | 行星轮垫片 Washer for planetary gear | 16 |
| 15 | 50M.00-08 | 滚针 Roller needle | 432 |
| 16 | 50M.00(1)0 | 行星轮中间隔套 Space bushing | 8 |
| 17 | 50M.00-06 | 行星轮 Planetary gear | 8 |
| 18 | GB308 Φ3/8″ | 钢球Φ3/8″ Steel ball | 8 |
| 19 | 50M.00(1)5 | 行星轮轴 Shaft of planetary gear | 8 |
| 20 | 50M.00-01 | 半轴 Shaft | 2 |
| 21 | GB894.2 50 | 挡圈50 Snap ring | 2 |
| 22 | 50M.00(1)4 | 太阳轮 Sun gear | 2 |
| 23 | 50M.00(1)6 | 隔套 Spacer | 2 |
| 24 | φ1.6 | 铁丝Φ1.6 Iron wire | 2 |
| 25 | 50MA.00-03 | 紧固螺栓 Fastening bolts | 4 |
| 26 | 50M.00(1)7A | 槽螺母 Slot nut | 2 |
| 27 | 50M.03A.01-02 | 套 Bush | 2 |
| 28 | 50M.03A | 齿圈支承总成 Internal gear assy | 2 |
| 29 | GB297 32026 | 轴承32026 Bearing | 2 |
| 30 | 50MA.00-01A | 轮毂 Hub | 2 |
| 31 | GB93 22 | 垫圈22 Washer | 24 |
| 32 | GB6171 M22×1.5 | 螺母M22×1.5 Nut | 24 |
| 33 | GB297 32024 | 轴承32024 Bearing | 2 |
| 34 | 50MA.00-02 | 垫圈 Washer Spacer for seal | 2 |
| 35 | GB893.1 180 | 挡圈180 Snap ring | 2 |
| 36 | GB13871 B150X180X15 | 油封B150X180X15 Oil seal | 2 |
| 37 | GB13871 FB150X180X15 | 油封FB150X180X15 Gasket | 2 |
| 38 | 504002B | 制动盘 Brake disk | 2 |
| 39 | GB93 20 | 垫圈20 Washer | 20 |
| 40 | 404010 | 制动盘螺栓 Bolt for brake | 20 |
