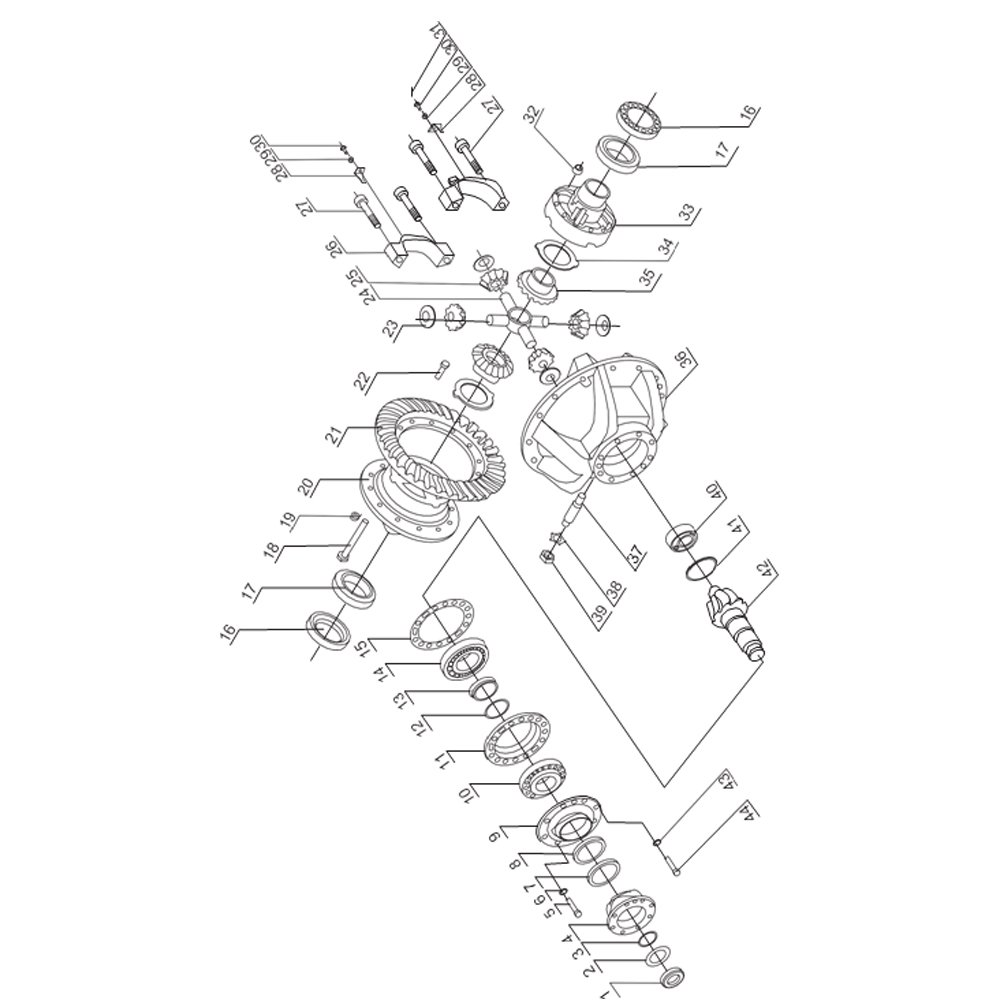

SL50W FIG.46 MAIN TRANSMISSION ASSEMBLY

NO.	PART NO.	PART NAME	QTY
0	461(1)8-01000	Main transmission assy.	1
1	461(1)8-01001	Lock nut	1
2	461(1)8-01002	Washer	1
3	461(1)8-01032	O-seal ring	1
4	461(1)8-01101	Flange	1
5	GB5785 M12X1.5X55	Bolt	1
6	01602-21236	Washer	1
7	GB13871 FB80X100X10	Oil seal	1
8	GB13871 B80X100X10	Oil seal	1
9	461(1)8-01003	Sealing gland	1
10	GB297 31313	Bearing	1
11	461(1)8-01004	Bearing bushing	1
12	461(1)8-01005/6/7	Adjusting washer	1
13	461(1)8-01008	Shaft bushing	1
14	GB297 31314	Bearing	1
15	461(1)8-01029/30/31	Adjusting washer	1
16	461(1)8-01025	Adjusting nut	2
17	Inch 47686/47620A	Bearing	2
18	461(1)8-01021	Differential bolt	8
19	461(1)8-01016	Nut	12
20	461(1)8-01015	Differential cage	1
21	461(1)8-01018	Driven bevel gear	1
22	461(1)8-01017	Bolt	12
23	461(1)8-01019	Washer for bevel gear	4
24	461(1)8-01028	Differential crossing	1
25	461(1)8-01020	Bevel gear	4
26	461(1)8-01023	Bearing seat	2
27	461(1)8-01013	Bolt	4
28	461(1)8-01009	Lock plate	2
29	01602-21030	Washer	2
30	01014-81020	Bolt	2
31	461(1)8-01014	Iron wire	2
32	461(1)8-01022	Nut	8
33	461(1)8-01026	Differential cage	1
34	461(1)8-01012	Thrust washer	2
35	461(1)8-01027	Axle shaft gear	2
36	461(1)8-01011	主减速器壳 Differential cage	1
37	461(1)8-01200	止推螺栓 Bolt	1
38	461(1)8-01024	锁紧片 Lock plate	1
39	GB6173 M27X2	螺母M27X2 Nut	1
40	NJ2307ENVX3	英制轴承 Bearing	1
41	GB305 90/96.5	止动环90/96.5 Stop ring	1
42	461(1)8-01010	主动螺旋伞齿轮 Driving bevel gear	1
43	01602-21442	垫圈14 Washer	7
44	01050-51455	螺栓M14X1.5X55 Bolt	7
