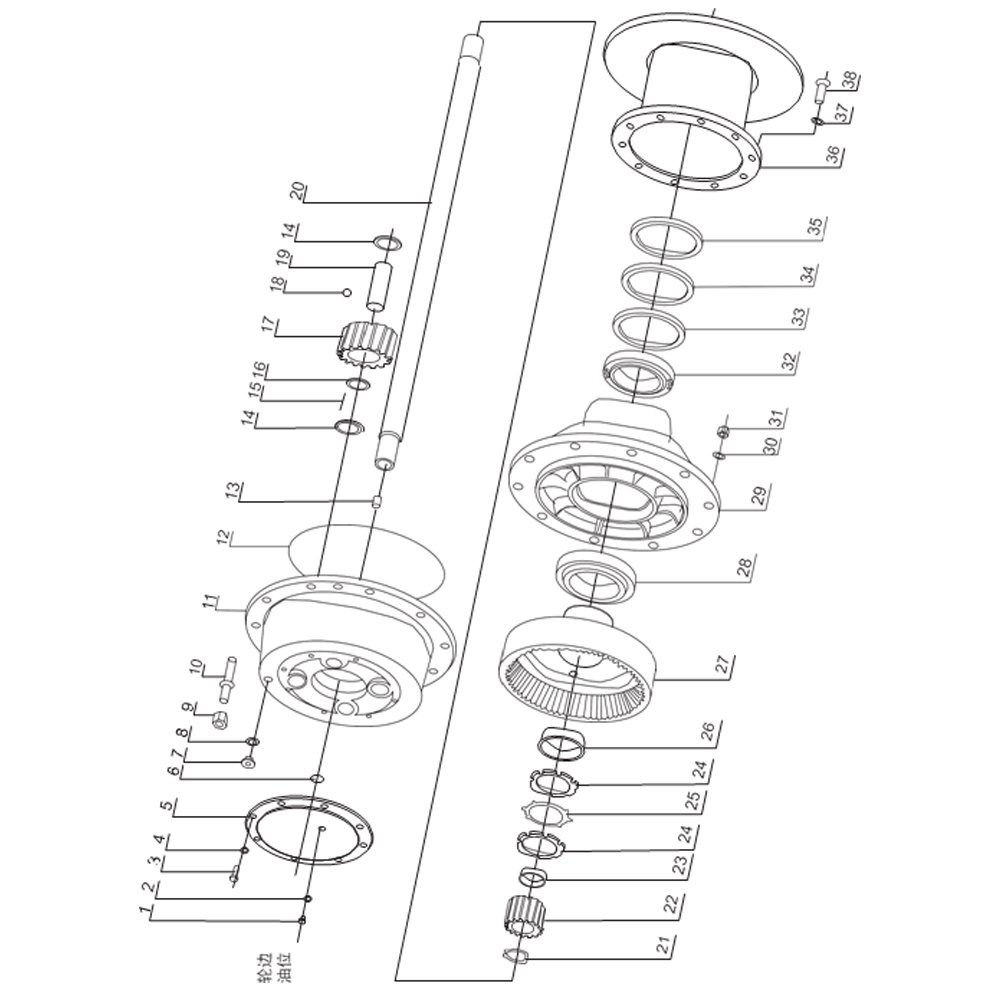

SL50W FIG.47 PLANETARY ASSEMBLY

NO.	PART NO.	PART NAME	QTY
0	461(1)8-00000	Planetary assy	1
1	461(1)8-00015	Oil plug	2
2	07005-01212	Washer	2
3	GB5785 M12×1.25×30	Bolt	16
4	01602-21236	Washer	16
5	461(1)8-00013	Cover	2
6	461(1)8-00012	Snap Ring	2
7	GB3452.1 25.8×2.65	O- ring	4
8	461(1)8-00008	Oil plug	4
9	461(1)8-04000	Nut for rim	24
10	461(1)8-00005	Bolt for rim	24
11	461(1)8-00006	Planet gear carrier	2
12	461(1)8-00020	Seal ring	2
13	461(1)8-00014	Adjusting pin	2
14	461(1)8-00010	Planet gasket	16
15	461(1)8-00009	Roller needle	432
16	461(1)8-00011	Bushing	8
17	461(1)8-00007	Planet gear	8
18	04260-00952	Steel Ball	8
19	461(1)8-00017	Planet pin	8
20	461(1)8-00001	Shaft	2
21	04064-05020	Snap ring	2
22	461(1)8-00016	Sun gear	2
23	461(1)8-00018	Spacer	2
24	461(1)8-00019	Nut	4
25	GB858 85	Locking washer	2
26	461(1)8-00021	Taper bushing	2
27	461(1)8-05000	Internal gear assy	2
28	GB297 32026	Bearing	2
29	461(1)8-00004	Hub	2
30	01602(1)2268	Washer	24
31	01582(1)2218	Nut	24
32	GB297 32024	Bearing	2
33	461(1)8-00022	Washer	2
34	GB893.1 180	Snap ring	2
35	461(1)8-00023	Oil Seal	2
36	461(1)8-00002	制动盘 Brake disk	2
37	01602(1)2060	垫圈20 Washer	20
38	461(1)8-00003	制动盘螺栓 Bolt for brake	20
