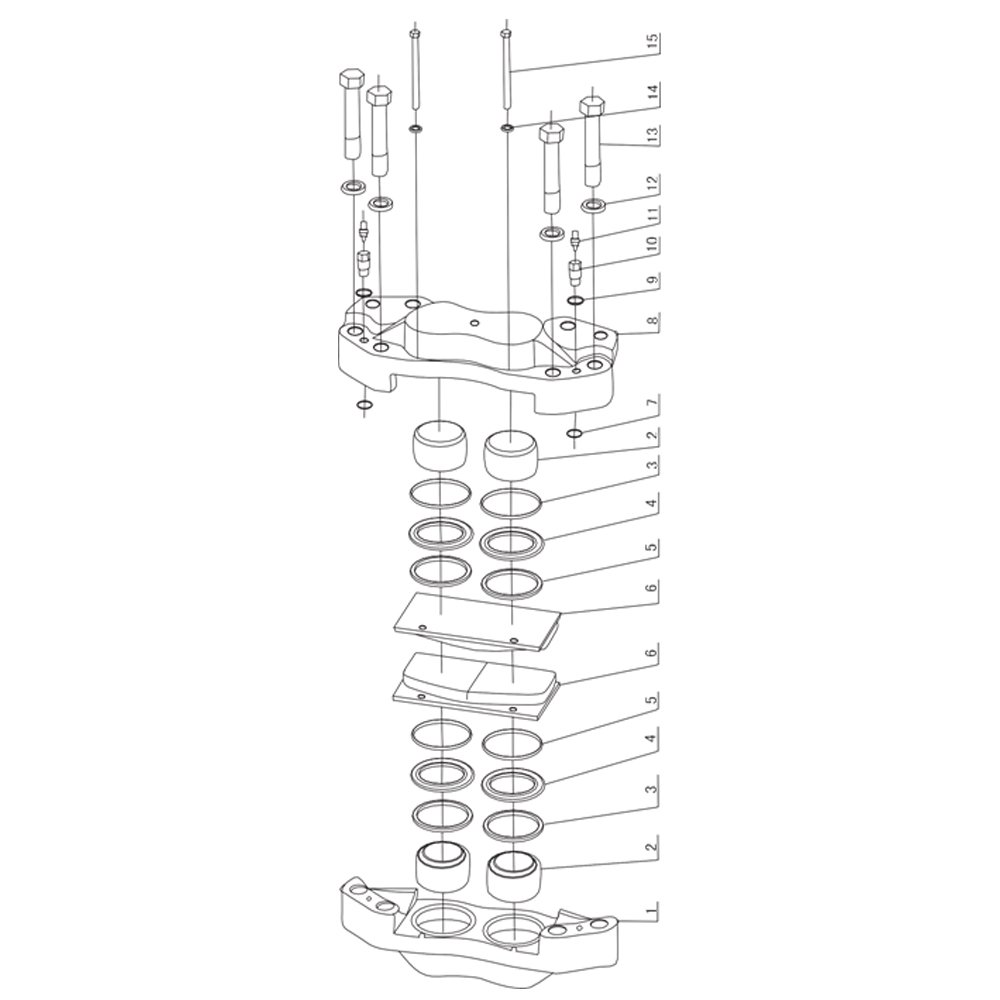

Parts & Accessories, SL50WSL50W FIG.48 BRAKE ASSEMBLY
| NO. |
PART NO. |
PART NAME |
QTY |
| 0 |
461(1)8-03000 |
Brake assy. |
1 |
| 1 |
461(1)8-03001 |
Exterior brake |
1 |
| 2 |
461(1)8-03002 |
Piston |
4 |
| 3 |
461(1)8-03003 |
Rectangular seal |
4 |
| 4 |
461(1)8-03004 |
Dust cover |
4 |
| 5 |
461(1)8-03005 |
Block ring |
4 |
| 6 |
461(1)8-03006 |
Brake disk |
2 |
| 7 |
GB1235 20X2.4 |
O-ring |
2 |
| 8 |
461(1)8-03007 |
Inner brake |
1 |
| 9 |
461(1)8-03008 |
Washer |
2 |
| 10 |
461(1)8-03009 |
Joint |
2 |
| 11 |
461(1)8-03010 |
Deflating valve |
2 |
| 12 |
01602(1)2268 |
Washer |
4 |
| 13 |
461(1)8-03011 |
Bolt |
4 |
| 14 |
01602-21030 |
Washer |
2 |
| 15 |
461(1)8-03012 |
Bolt pin |
2 |
