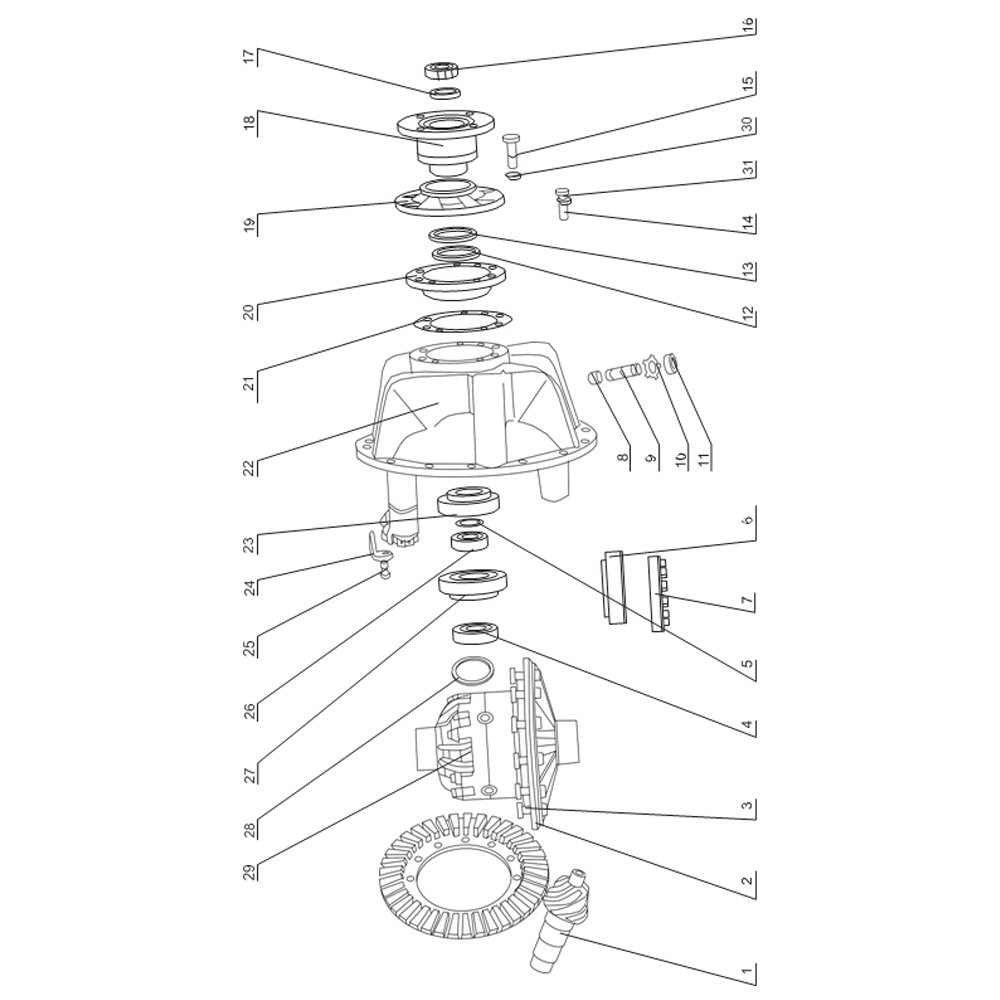

SL50W FIG.52 CARRIER ASSEMBLY

NO.	PART NO.	PART NAME	QTY
0	82310500	Carrier assy.(front axle)	1
	82311600	Carrier assy.(rear axle)	1
1	75201867	Spur Pinion Set(front axle)	1
	75202362	Spur Pinion Set(rear axle)	1
2	75501992	Nut	12
3	75500003	Bolt	12
4	54500006	Bearing	1
5	79605001	Adjusting Shims	1
6	54500003	Bearing	2
7	75200118	Adjusting Nut	2
8	79600096	Copper Copy	1
9	79600095	Bolt	1
10	79600097	Lock Shim	1
11	51070004	Nut	1
12	53500007	Oil Seal	1
13	53500008	Oil Seal	1
14	50011008	Bolt	1
15	50011011	Bolt	7
16	75500269	Lock Nut	1
17	75500231	Washer	1
18	82310501	Flange Assembly	1
19	75201770	Cover	1
20	75201767	Bearing Cage	1
21	79605013	Adjusting Shims	1
22	79800027	Carrier Housing	1
23	54100015	Bearing	1
24	75200054	Lock Shim	2
25	50004003	Bolt	2
26	79605010	Bearing Spacers	1
27	54100014	Bearing	1
28	52100012	Snap Ring	1
29	82030502	Diff. Assembly	1
30	52020005	Washer	7
31	52020004	Washer	1
