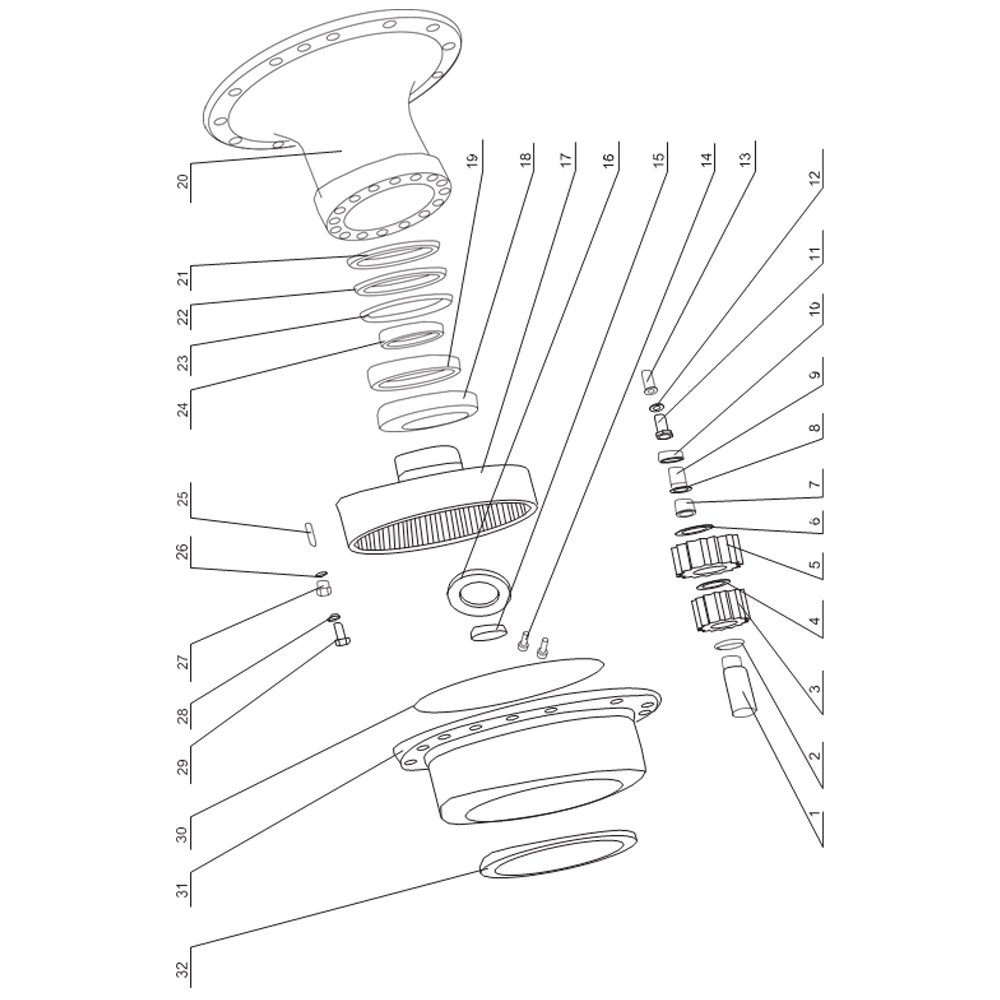

| NO. |
PART NO. |
PART NAME |
QTY |
| 0 |
93000021 |
轮边减速器总成(前桥) Planetary assy.(front axle) |
1 |
|
93000020 |
轮边减速器总成(后桥) Planetary assy.(rear axle) |
1 |
| 1 |
79001545 |
行星轮轴(前桥) Planet Pin(front axle) |
4 |
|
79001545 |
行星轮轴(后桥) Planet Pin(rear axle) |
3 |
| 2 |
75600334 |
隔套(前桥) Sleeve(front axle) |
4 |
|
75600334 |
隔套(后桥) Sleeve(rear axle) |
3 |
| 3 |
83000802 |
太阳轮 Sun Gear |
1 |
| 4 |
52100009 |
挡圈50 Circlip |
1 |
| 5 |
83000801 |
行星轮(前桥) Planet Gear(front axle) |
4 |
|
83000801 |
行星轮(后桥) Planet Gear(rear axle) |
3 |
| 6 |
75600457 |
行星轮垫(前桥) Planet Gear Shim(front axle) |
8 |
|
75600457 |
行星轮垫(后桥) Planet Gear Shim(rear axle) |
6 |
| 7 |
75500197 |
螺塞M24×1.5 Plug |
1 |
| 8 |
53200005 |
合密封垫24 Compound Seal |
1 |
| 9 |
79605020 |
调整支柱 Adjustment Pin |
1 |
| 10 |
73520042 |
限位块 Limit Block |
1 |
| 11 |
50012010 |
螺栓(前桥)M12×1.25×25 Bolt(front axle) |
7 |
|
50012010 |
螺栓(后桥)M12×1.25×25 Bolt(rear axle) |
5 |
| 12 |
52020004 |
垫圈(前桥)12 Washer(front axle) |
7 |
|
52020004 |
垫圈(后桥)12 Washer(rear axle) |
5 |
| 13 |
50140003 |
螺钉M10×30 Screw |
3 |
| 14 |
83810304 |
紧固螺栓 Fixing Bolt |
2 |
| 15 |
77000021 |
隔套 Sleeve |
1 |
| 16 |
83899301 |
槽螺母 Nut |
1 |
|
83640301 |
槽螺母(前桥) Nut(front axle) |
1 |
| 17 |
93125012 |
齿圈支承件 Ring Hub Assembly |
1 |
|
83640302 |
齿圈支承件(前桥) Ring Hub Assembly(front axle) |
1 |
| 18 |
54100007 |
轴承32026 Bearing |
1 |
| 19 |
54100006 |
轴承32024 Bearing |
1 |
| 20 |
D3639301 |
轮毂 Hub |
1 |
| 21 |
53510005 |
MFC油封FB150×180×16 Oil Seal |
1 |
| 23 |
83496302 |
挡油板 Oil Guard Plate |
1 |
| 24 |
83496301 |
挡圈 Circlip |
1 |
| 25 |
75600330 |
滚针(前桥) Needle Roller(front axle) |
216 |
|
75600330 |
滚针(后桥) Needle Roller(rear axle) |
162 |
| 26 |
75500842 |
螺塞M12×1.25×9 Plug |
1 |
| 27 |
53200002 |
合密封垫12 Compound Seal Washer |
1 |
| 28 |
52020003 |
垫圈10 Washer |
1 |
| 29 |
50012005 |
螺栓M10×1.25×25 Bolt |
1 |
| 30 |
83000810 |
密封圈 Gasket Ring |
1 |
| 31 |
83310601 |
行星轮架(前桥) Spider(front axle) |
1 |
|
93115015 |
行星轮架(后桥) Spider(rear axle) |
1 |
|
93200061 |
端盖(前桥) Cover(front axle) |
1 |
| 32 |
93200063 |
端盖(后桥) Cover(rear axle) |
1 |
