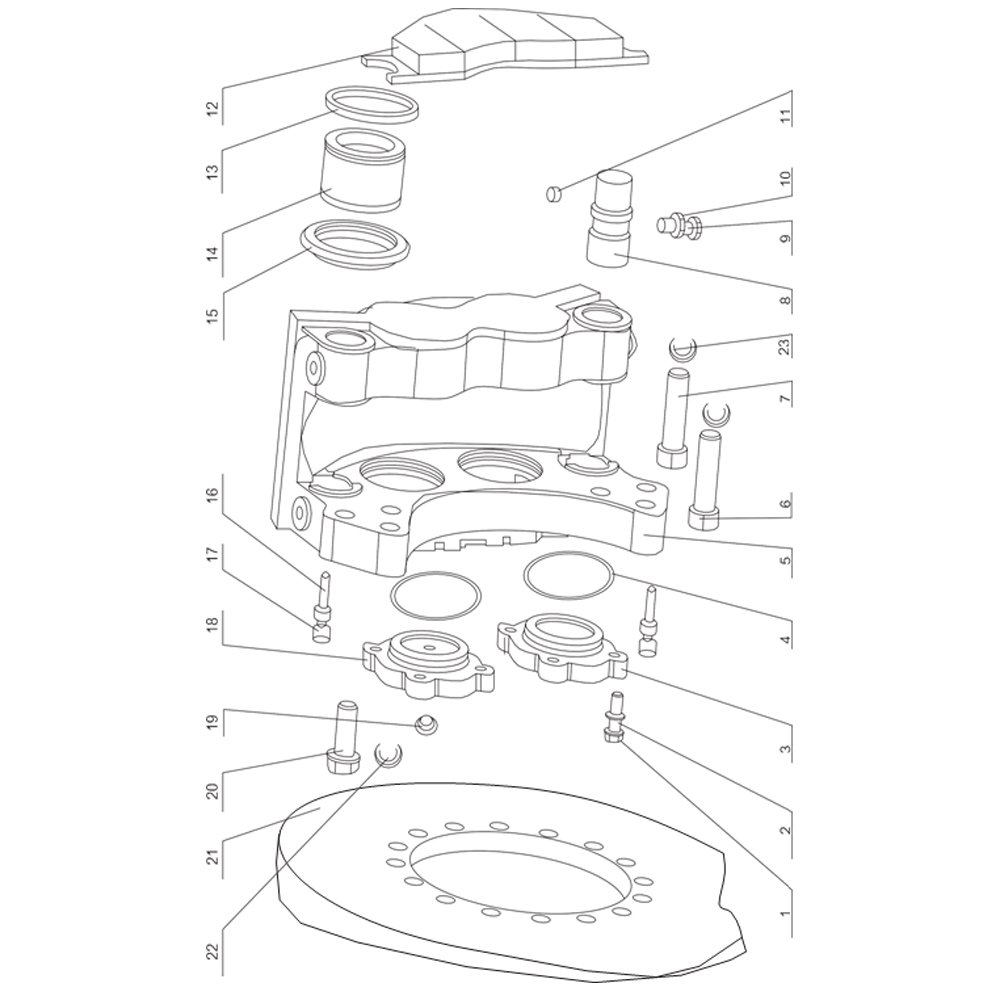

| NO. | PART NO. | PART NAME | QTY |
| 0 | 84741300 | Brake assy.(front axle) | 1 |
| 72006036 | Brake assy.(rear axle) | 1 | |
| 1 | 50009015 | Bolt | 16 |
| 2 | 52020003 | Washer | 16 |
| 3 | 75700443 | Cover | 2 |
| 4 | 53000010 | “O”ring | 4 |
| 5 | 84741302 | Caliper assy.(front axle) | 2 |
| 75700436 | Caliper assy.(rear axle) | 2 | |
| 6 | 75502139 | Bolt | 4 |
| 7 | 50009039 | Bolt | 8 |
| 8 | 75700437 | Pin | 8 |
| 9 | 50009014 | Bolt | 8 |
| 10 | 51014003 | Nut | 8 |
| 11 | 79900278 | Column Pin | 8 |
| 12 | 75700434 | Friction Pad Assembly | 4 |
| 13 | 75700439 | Rectangle Seal | 8 |
| 14 | 75700440 | Piston | 8 |
| 15 | 75700438 | Dust Boot | 8 |
| 16 | 75700442 | Bleeder Valve | 4 |
| 17 | 55400001 | Cap | 4 |
| 18 | 75700458 | Cover | 2 |
| 19 | 75700459 | Hole Plug | 2 |
| 20 | 75502011 | Bolt | 16 |
| 21 | 72006561 | Brake Disc | 1 |
| 22 | 52020007 | Washer | 16 |
| 23 | 52020008 | Washer | 12 |
