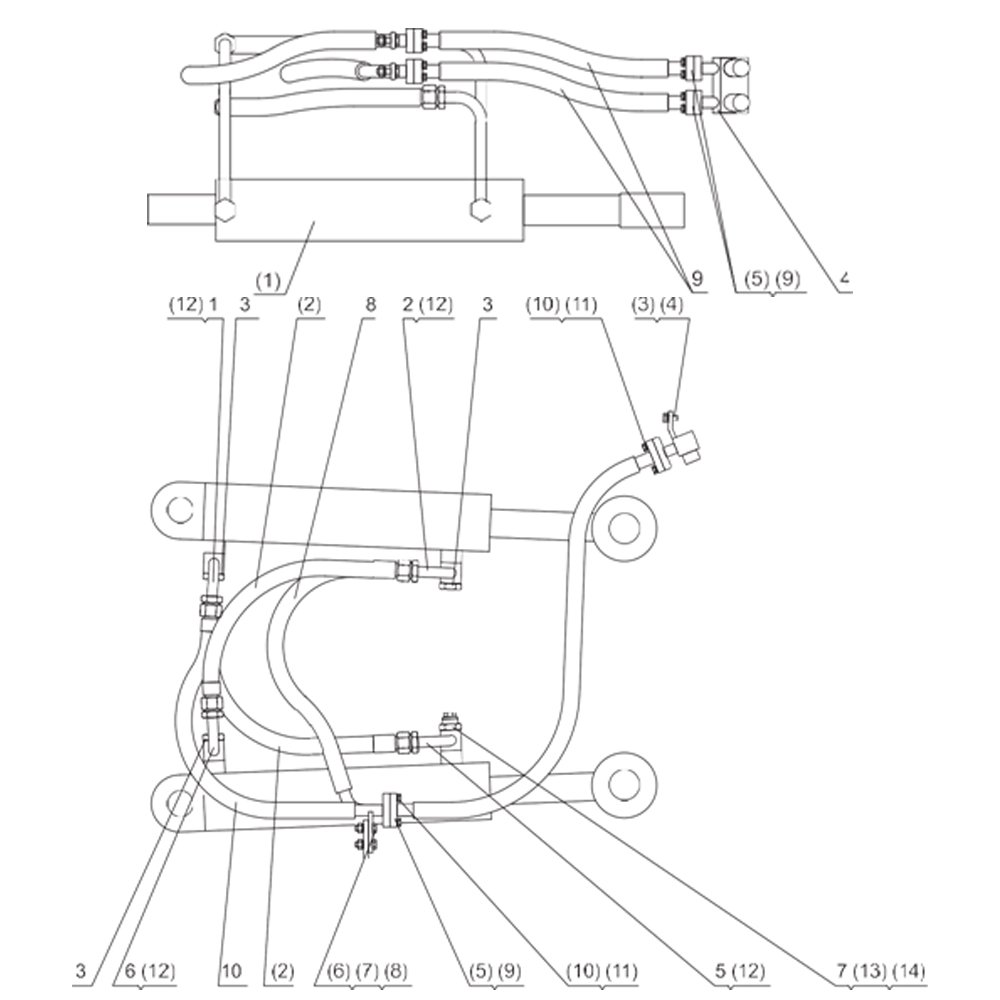

| NO. |
PART NO. |
PART NAME |
QTY |
| 1 |
ZL50G2-05001 |
Right steering cylinder ront joint |
1 |
| 2 |
ZL50G2-05002 |
Right steering cylinder rear joint |
1 |
| 3 |
ZL50G2-05003 |
Hollow bolt |
3 |
| 4 |
ZL50G2-05004 |
Rear frame joint |
1 |
| 5 |
ZL50G2-05010 |
Left steering cylinder rear joint |
1 |
| 6 |
ZL50G2-05011 |
Left steering cylinder front joint |
1 |
| 7 |
ZL50G2-05012 |
Hollow bolt |
1 |
| 8 |
ZL50G2-05019A |
Hose assembly |
1 |
| 9 |
ZL50G2-05020 |
Hose assembly |
2 |
| 10 |
ZL50G2-05027A |
Hose assembly |
1 |
|
|
|
|
| (1) |
DG958-05200 |
Steering cylinder |
2 |
| (2) |
JH100 19-660 |
Hose assembly |
2 |
| (3) |
GB93 12 |
Spring washer |
2 |
| (4) |
GB5783 M12x25 |
Bolt |
2 |
| (5) |
M1H-12 |
Split flange |
4 |
| (6) |
GB5783 M10×30 |
Bolt |
4 |
| (7) |
GB6170 M10 |
Nut |
4 |
| (8) |
GB93 10 |
Spring washer |
4 |
| (9) |
GB3452.1 25×3.55 |
O-ring |
4 |
| (10) |
GB5783 M8×30 |
Bolt |
16 |
| (11) |
GB93 8 |
Spring washer |
16 |
| (12) |
GB3452.1 23.6×3.55 |
O-ring |
8 |
| (13) |
JB982 14 |
Combined washer |
1 |
| (14) |
JB1000 M14×1.5 |
Plug |
1 |
