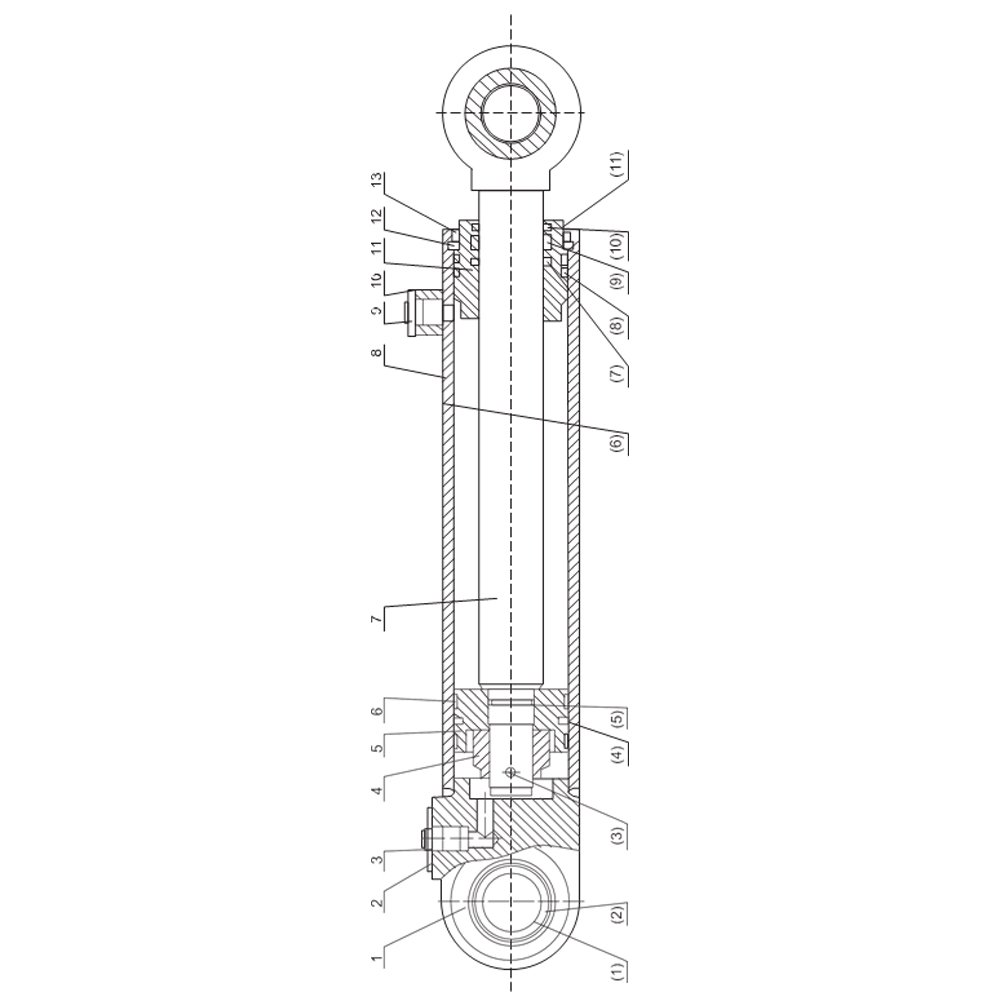

| NO. | PART NO. | PART NAME | QTY |
| 0 | DG958-05200 | Steering cylinder | 1 |
| 1 | ZL50QD.30.1 | Cylinder assembly | 1 |
| 2 | ZL50QD.30-8 | Bottom port rubber pad | 1 |
| 3 | ZL50QD.30-7 | Bottom port protection plugs | 1 |
| 4 | ZL50QD.30-10A | Slotted nuts | 1 |
| 5 | ZL50QD.30-2A | Piston | 1 |
| 6 | ZL50QD.30-6 | Support ring | 2 |
| 7 | ZL50QD.30.2AA | Piston rod | 1 |
| 8 | ZL50DG2.30-1 | Nameplate | 1 |
| 9 | ZL50QD.30-11 | Cylinder port protection plugs | 1 |
| 10 | ZL50QD.30-10 | Cylinder port rubber pad | 1 |
| 11 | ZL50QD.30-3A | Guide sleeve | 1 |
| 12 | ZL50QD.30-5 | Card key | 1 |
| 13 | ZL50QD.30-4 | Retaining ring | 1 |
| (1) | GB304.5 GE50ES | Joint bearing | 2 |
| (2) | GB893.1 75 | Hole circlip | 4 |
| (3) | GB91 6.3×70 | Cotter pin | 1 |
| (4) | GH100×84.5×6.3 | Glyd ring | 1 |
| (5) | GB1235 40×3.1 | O-ring | 1 |
| (6) | GB867 2×4 | Rivet | 4 |
| (7) | GS55×70.1×6.3 | Step ring | 1 |
| (8) | GB1235 100×5.7 | O-ring | 2 |
| (9) | SIL55×70×12.5 | KY-ring | 1 |
| (10) | MH55×69×6/8 | Dust ring | 1 |
| (11) | GB894.1 90 | Shaft circlips | 1 |
