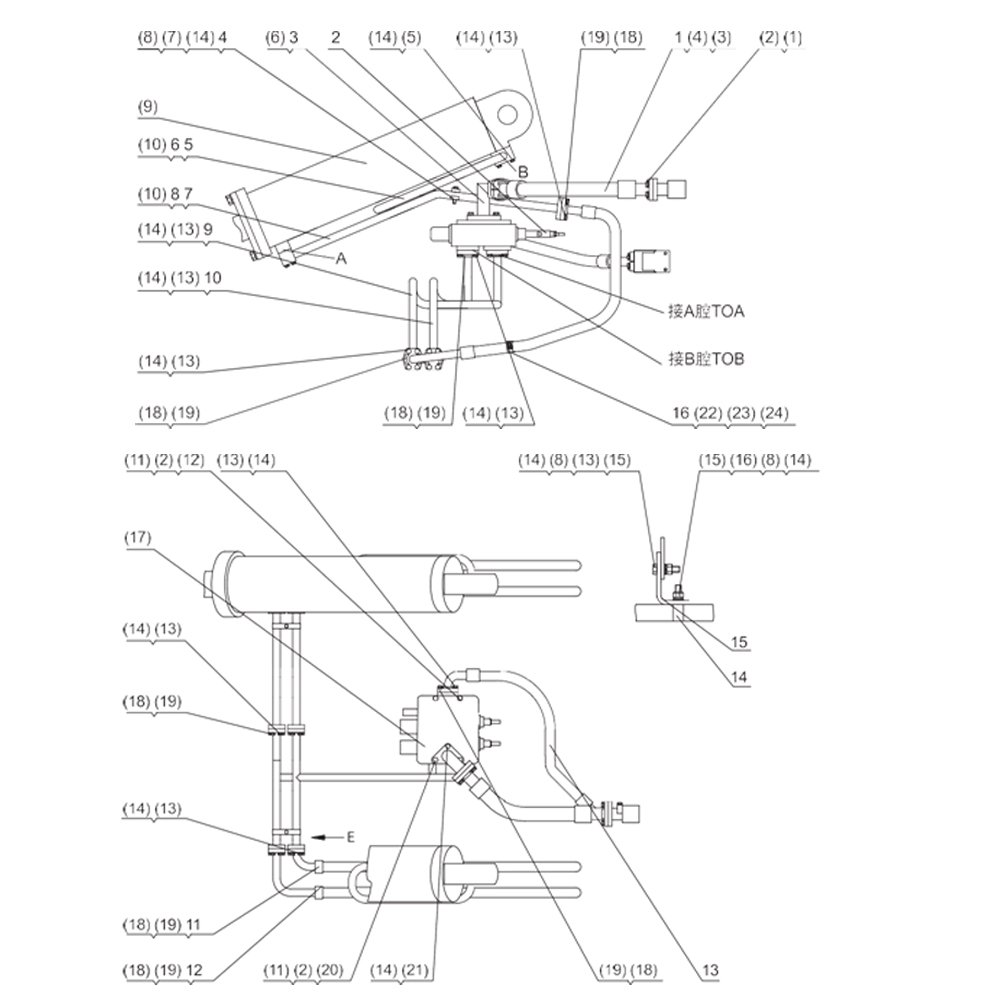

| NO. | PART NO. | PART NAME | QTY |
| 1 | ZL50FIII-06017 | Return nozzle II,work valve | 1 |
| 2 | ZL50FIII-06100A | Control system | 1 |
| 3 | ZL50FIII-06019 | Return joint,work valve | 1 |
| 4 | ZL50G2-06054 | Tube clip | 4 |
| 5 | ZL50G2-06048B | Joint, lifting cylinder big cavity(L) | 1 |
| 6 | ZL50G2-06049B | Joint, lifting cylinder big cavity(R) | 1 |
| 7 | ZL50G2-06045 | Joint, lifting cylinder small cavity(L) | 1 |
| 8 | ZL50G2-06046 | Joint, lifting cylinder small cavity(R) | 1 |
| 9 | ZL50FIII-06020 | Joint,work valve small cavity | 1 |
| 10 | ZL50FIII-06021 | Joint,work valve big cavity | 1 |
| 11 | ZL50G2-06041 | Tube,lifting cylinder big cavity | 2 |
| 12 | ZL50G2-06042 | Tube,lifting cylinder small cavity | 2 |
| 13 | ZL50FIII-06015 | Oil-in tube,work valve | 1 |
| 14 | ZL50G2-06050A | Tube clip | 2 |
| 15 | ZL50FⅢ-06042 | Connect board | 2 |
| 16 | ZL50G2-06047B | Tube clip | 4 |
| (1) | GB5783 M12×35 | 螺栓M12×35 Bolt | 8 |
| (2) | GB93 12 | 弹垫12 Spring washer | 12 |
| (3) | GB3452.2 47.5×3.55 | O形圈47.5×3.55 O-ring | 2 |
| (4) | 51H-24 | 法兰 Flange | 2 |
| (5) | GB5783 M10×65 | 螺栓M10×65 Bolt | 16 |
| (6) | GB1235 50×3.1 | O形圈50×3.1 O-ring | 1 |
| (7) | GB5780 M10×55 | 螺栓M10×55 Bolt | 2 |
| (8) | GB6170 M10 | 螺母M10 Nut | 8 |
| (9) | DG958-06600 | 举升缸 Lifting cylinder | 2 |
| DG958-J06600 | 举升缸(配加长臂和长臂金刚) Lifting cylinder(for extend arm and long arm) | 2 | |
| (10) | GB3452.2 32.5×3.55 | O形圈32.5×3.55 O-ring | 4 |
| (11) | GB6170 M12 | 螺母M12 Nut | 4 |
| (12) | GB5782 M12×120 | 螺栓M12×120 Bolt | 2 |
| (13) | GB5783 M10×35 | 螺栓M10×35 Bolt | 60 |
| (14) | GB93 10 | 弹垫10 Spring washer | 81 |
| (15) | GB95 10 | 垫圈10 Washer | 6 |
| (16) | GB5783 M10×40 | 螺栓M10×40 Bolt | 2 |
| (17) | DF32.2C | 多路换向阀 Multiple unit valve | 1 |
| (18) | GB3452.2 37.5×3.55 | O形圈37.5×3.55 O-ring | 14 |
| (19) | 51H-20 | 法兰 Flange | 14 |
| (20) | GB5782 M12×140 | 螺栓M12×140 Bolt | 2 |
| (21) | GB5783 M10×30 | 螺栓M10×30 Bolt | 1 |
| (22) | GB93 8 | 弹垫8 Spring washer | 2 |
| (23) | GB6170 M8 | 螺母M8 Nut | 2 |
| (24) | GB5781 M8×25 | 螺栓M8×25 Bolt | 2 |
