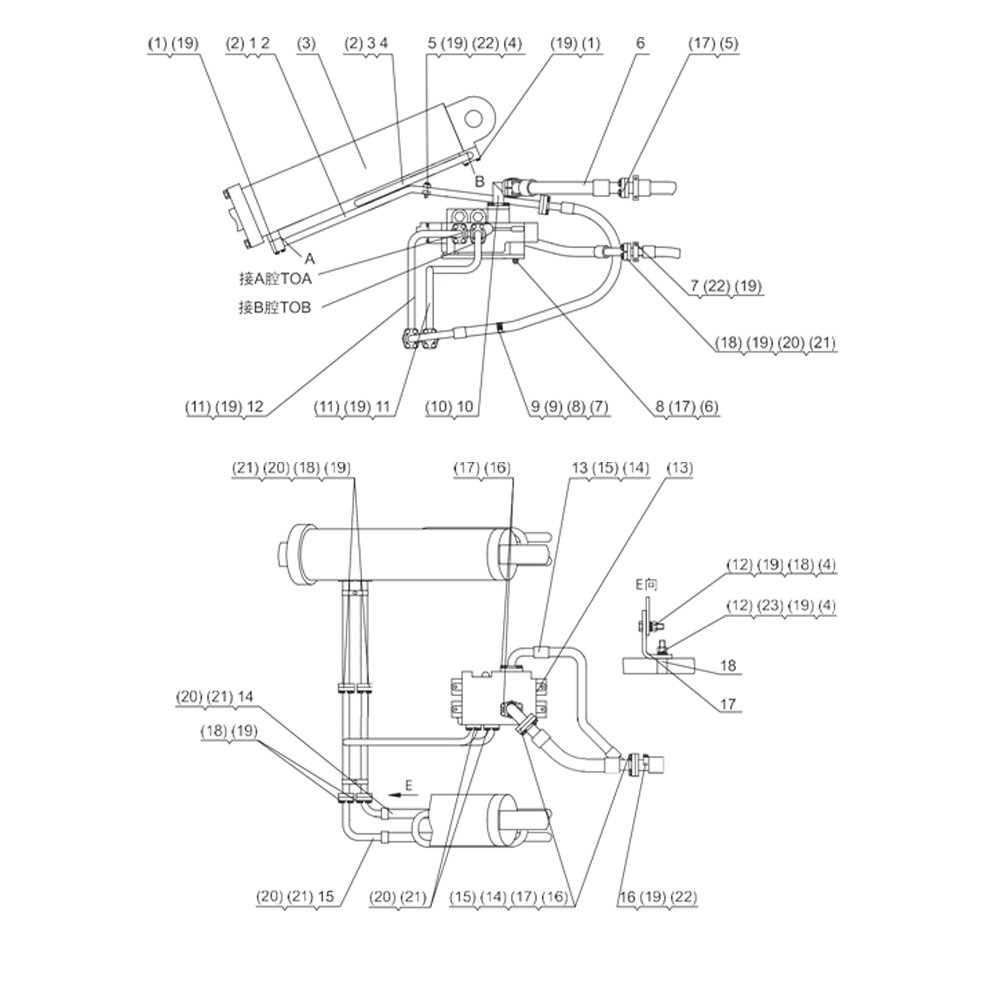

| NO. | PART NO. | PART NAME | QTY |
| 1 | ZL50G2-06046 | 举升缸小腔接头(右) Joint, lifting cylinder small cavity(R) | 1 |
| 2 | ZL50G2-06045 | 举升缸小腔接头(左) Joint, lifting cylinder small cavity(L) | 1 |
| 3 | ZL50G2-06049B | 举升缸大腔接头(右) Joint, lifting cylinder large cavity(R) | 1 |
| 4 | ZL50G2-06048B | 举升缸大腔接头(左) Joint, lifting cylinder large cavity(L) | 1 |
| 5 | ZL50G2-06054 | 管卡 Tube clip | 4 |
| 6 | ZL50G2-06030 | 工作阀回油接管II Return nozzle II,work valve | 1 |
| 7 | ZL50G2-06027B | 油管固定卡 Tube clip | 1 |
| 8 | ZL50G2-06031 | 丝杆 Lead screw | 3 |
| 9 | ZL50G2-06047B | 管卡 Tube clip | 4 |
| 10 | ZL50G2-06032 | 工作阀回油接头 Oil return joint,work valve | 1 |
| 11 | ZL50G2-06034 | 工作阀大腔中接头 Joint,work valve large cavity | 1 |
| 12 | ZL50G2-06035 | 工作阀小腔中接头 Joint,work valve small cavity | 1 |
| 13 | ZL50G2-06029 | 工作阀进油管I Oil-in tube,work valve | 1 |
| 14 | ZL50G2-06041 | 举升缸大腔油管 Tube,lifting cylinder large cavity | 2 |
| 15 | ZL50G2-06042 | 举升缸小腔油管 Tube,lifting cylinder small cavity | 2 |
| 16 | ZL50G2-06024B | 油管固定卡Ⅰ Tube clip | 1 |
| 17 | ZL50FⅢ-06042 | 连接板 Connect board | 2 |
| 18 | ZL50G2-06050A | 管卡 Tube clip | 2 |
| (1) | GB5783 M10×65 | Bolt | 16 |
| (2) | GB3452.2 32.5×3.55 | O-ring | 4 |
| (3) | DG958-06600 | Lifting cylinder | 2 |
| DG958-J06600 | Lifting cylinder(for extend arm and long arm) | 2 | |
| (4) | GB6170 M10 | Nut | 8 |
| (5) | GB5783 M12×35 | Bolt | 8 |
| (6) | GB898 M12×40 | Double-screw Bolt | 4 |
| (7) | GB5781 M8×25 | Bolt | 2 |
| (8) | GB6170 M8 | Nut | 2 |
| (9) | GB93 8 | Spring washer | 2 |
| (10) | GB3452.2 43.7×3.55 | O-ring | 1 |
| (11) | GB5783 M10×30 | Bolt | 8 |
| (12) | GB95 10 | Washer | 6 |
| (13) | D32.2 | Hydraulic control multiple unit valve | 1 |
| YDF32.2 | Hydraulic control multiple unit valve | 1 | |
| (14) | 51H-24 | Flange | 3 |
| (15) | GB3452.2 47.5×3.55 | O-ring | 3 |
| (16) | GB5783 M12×30 | Bolt | 8 |
| (17) | GB93 12 | Spring washer | 12 |
| (18) | GB5783 M10×35 | Bolt | 48 |
| (19) | GB93 10 | Spring washer | 78 |
| (20) | GB3452.2 37.5×3.55 | O-ring | 13 |
| (21) | 51H-20 | Flange | 13 |
| (22) | GB5780 M10×55 | Bolt | 4 |
| (23) | GB5783 M10×40 | Bolt | 2 |
