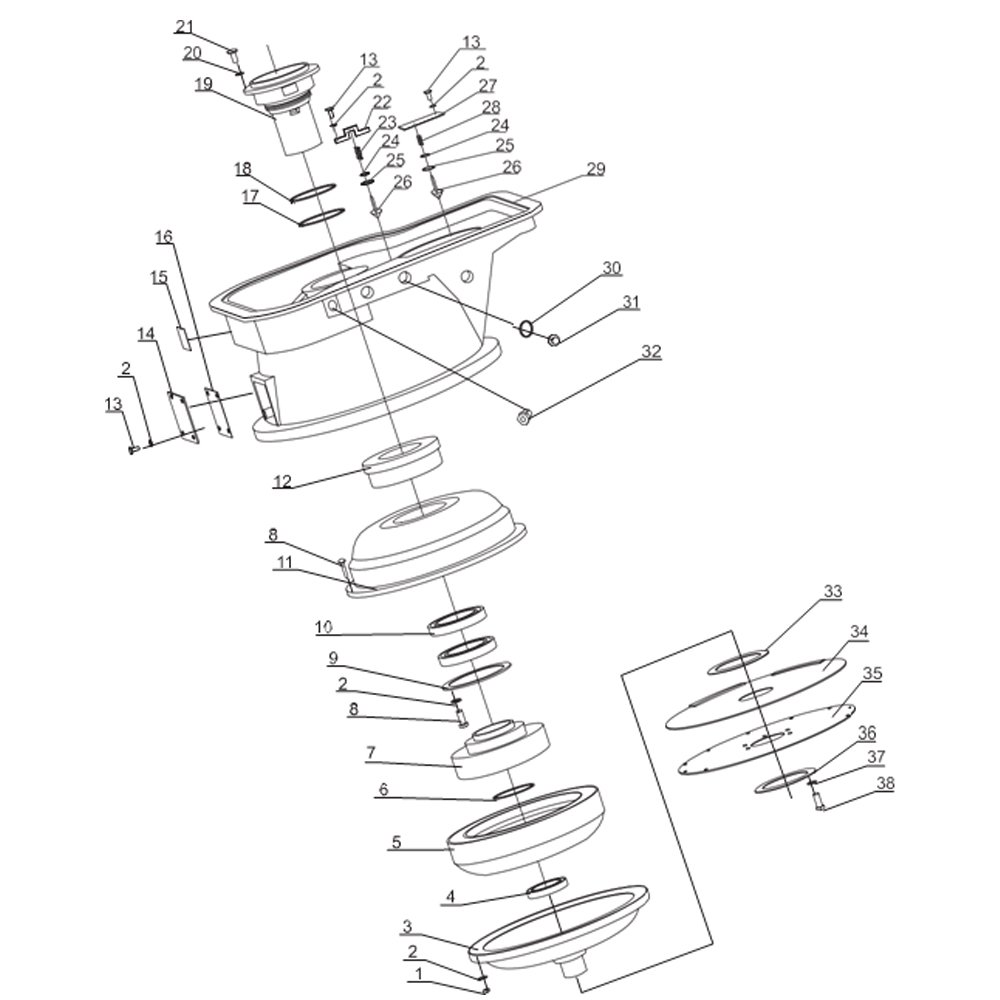

SL50W FIG.8 HYDRAULIC TORQUE CONVERTER

NO.	PART NO.	PART NAME	QTY
0	ZL50G3-02100A	Hydraulic torque converter	1
1	01580-00806	Nut	38
2	01602-10825	Washer	46
3	YJSW315-8A-00001	Cover Wheel	1
4	GB276 6210	Ball Bearing	1
5	YJSW315-8A-10000	Turbine assembly	1
6	04064-08530	Snap Ring	1
7	YJSW315-8A-00002	Guide Roller	1
8	01010-80835	Bolt	38
9	YB315Z5-22A	Press Washer	1
10	GB276 6017	Ball Bearing	2
11	YJSW315-8A-00003	Pump Impeller	1
12	YJSW315-8A-00004	Gear	1
13	01010-50816	Bolt	8
14	YB315Z5-06D	Plate	1
15	YJSW315-6J01-BP01	Nameplate	1
16	YB315Z5-07D	Gasket	1
17	YB315Z5-12A	Sealing ring	1
18	YB315Z5-33	Sealing ring	1
19	YB315Z5-13A	Guide Roller Seat	1
20	01602-11030	Washer	9
21	GB21 M10×25	BOlt	9
22	YB315Z5-17A	Valve Cap	1
23	YB315Z5-18A	Spring	1
24	YB315Z5-16/21	Adjusting Spacer	1
25	YB315Z5-28/29	Adjusting Spacer	1
26	YB315Z5-26A	Valve Lever	1
27	YB315Z5-19A	Press plate	1
28	YB315Z5-20	Spring	1
29	YB315Z5-08D	Housing	1
30	YB315Z5-09	Combined Washer	1
31	YB315Z5-15L	Plug Screw	1
32	YB315Z5-10L	Oil Thermometer connector	1
33	YB315Z5-34	Adjusting shim	1
34	YJSW315-20000	Elastic plate assembly	1
35	YJSW315-20001	Elastic plate	2
36	YB315Z5-04	Circular plate	1
37	01602-11236	Washer	6
38	01010-61230	Bolt	6
