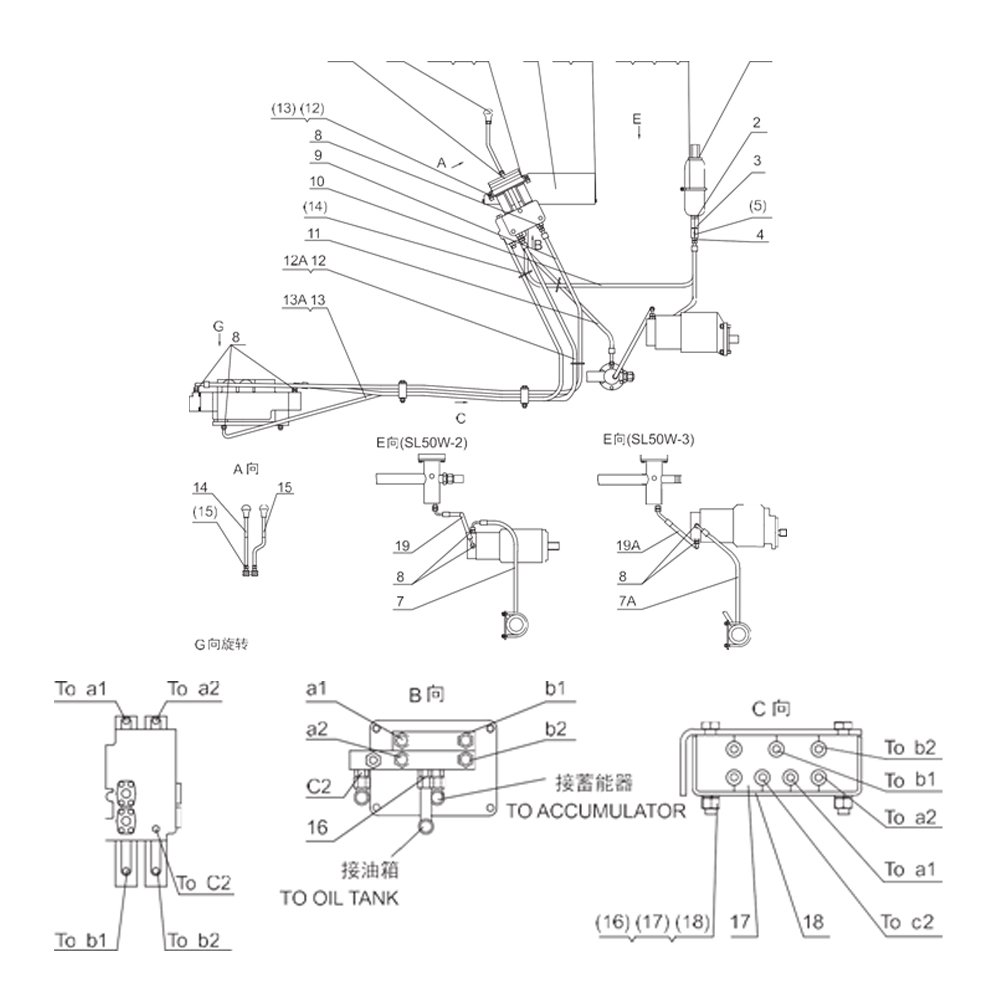

| NO. | PART NO. | PART NAME | QTY |
| 1 | ZL50G2-06010 | U-bolt | 1 |
| 2 | ZL50G2-06011 | Joint | 1 |
| 3 | ZL50G2-06012 | Joint assy. | 1 |
| 4 | ZL50G2-06013 | Joint | 1 |
| 5 | ZL50G2-06008A | Upper cover (for double handle) | 1 |
| DG965-06008 | Upper cover (for single handle) | 1 | |
| 6 | ZL50G2-06006A | Cover board (for double handle) | 1 |
| 7 | ZL50G3-06017 | Pilot oil tube | 1 |
| 7A | DG956WⅢ-06017 | Pilot oil tube | 1 |
| 8 | ZL50G2-06007 | Joint | 14 |
| 9 | ZL50G2-06009 | Pilot oil tube(for double handle) | 2 |
| DG965-06009 | Pilot oil tube(for single handle) | 2 | |
| 10 | ZL50G2-06016 | Pilot oil tube(for double handle) | 1 |
| DG965-06052 | Pilot oil tube(for single handle) | 1 | |
| 11 | ZL50G2-06017 | Pilot oil tube(for double handle) | 1 |
| DG965-06017 | Pilot oil tube(for single handle) | 1 | |
| 12 | ZL50G2-06019 | Pilot oil tube(for double handle) | 2 |
| 12A | DG965-06019 | Pilot oil tube(for single handle) | 2 |
| 13 | ZL50G2-06065 | Pilot oil tube(for double handle) | 1 |
| 13A | DG965-06058 | Pilot oil tube(for single handle) | 1 |
| 14 | ZL50G2-06014 | Lift lever | 1 |
| 15 | ZL50G2-06015 | Tipping lever | 1 |
| 16 | ZL50G2-06038 | Joint | 1 |
| 17 | ZL50G2-06037 | Fixed board | 2 |
| 18 | ZL50G2-06036 | Board | 2 |
| 19 | ZL50G3-06045 | Poilt oil tube | 1 |
| 19A | DG956WⅢ-06045 | Poilt oil tube | 1 |
| (1) | NXQ1-L0.63/10-H | Accmulator | 1 |
| (2) | GB6170 M8 | Nut | 2 |
| (3) | GB93 8 | Spring washer | 2 |
| (4) | GB95 8 | Washer | 2 |
| (5) | DIF-L10H1 | Straight check valve | 1 |
| (6) | LJ135M | Handle ball | 2 |
| (7) | GB5781 M5×10 | Bolt | 6 |
| (8) | GB95 5 | Washer | 6 |
| (9) | GB67 M6×12 | Screw | 4 |
| (10) | GB93 6 | Spring washer | 4 |
| (11) | DJS2-0.00 | Double handle pilot valve | 1 |
| (12) | DXS-00 | Single handle pilot valve | 1 |
| (13) | GB5781 M10×20 | Bolt | 4 |
| (14) | GB93 10 | Spring washer | 4 |
| (15) | D2900-20000 | Clamp | 7 |
| (16) | GB6171 M12×1.25 | Nut | 2 |
| (17) | GB6170 M12 | Nut | 4 |
| (18) | GB93 12 | Spring washer | 4 |
| (19) | GB5780 M12×90 | Bolt | 4 |
