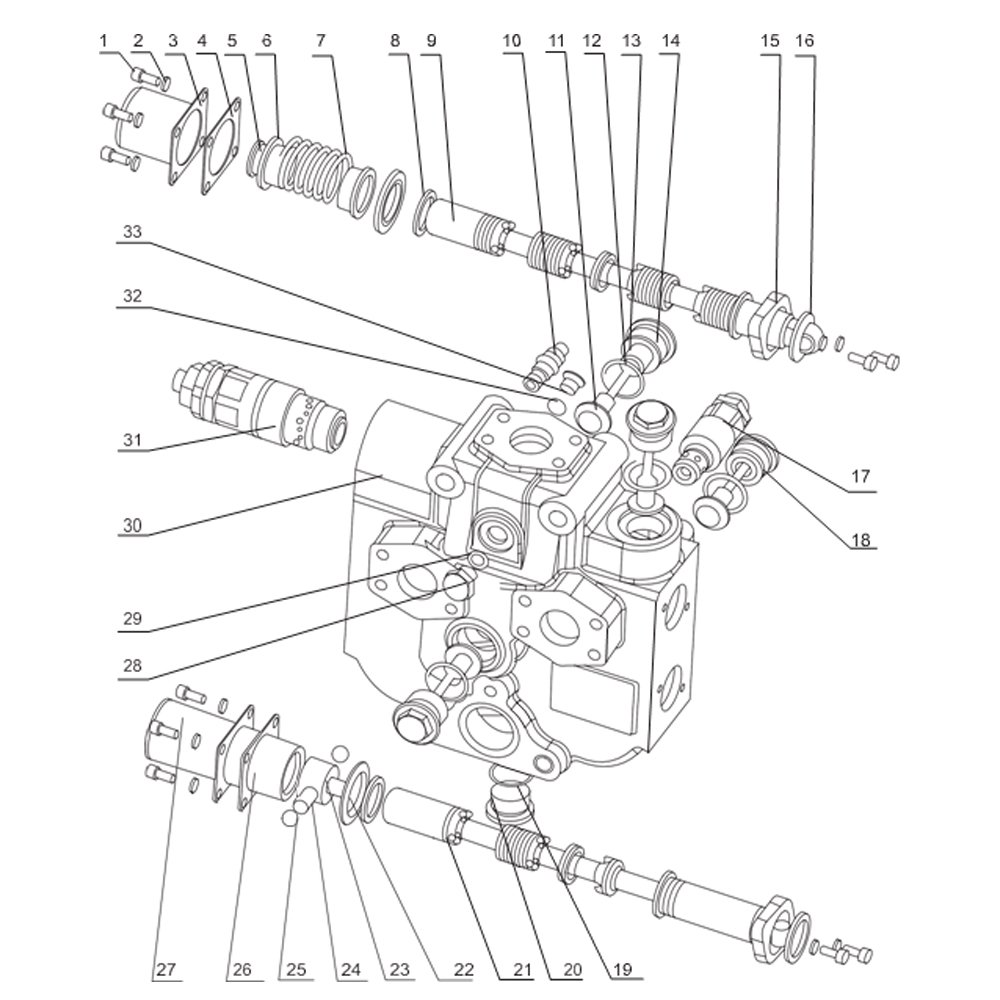

| NO. |
PART NO. |
PART NAME |
QTY |
| 1 |
301-00029 |
螺钉M6×12 Screw |
12 |
| 2 |
304-00030 |
弹垫6 Spring washer |
12 |
| 3 |
210-00035 |
铲斗端盖 Bucket end cover |
1 |
| 4 |
210-00039 |
纸垫 Paper gasket |
2 |
| 5 |
210-00036 |
限位螺堵 Limit plug |
1 |
| 6 |
210-00037 |
弹簧座 Spring seat |
2 |
| 7 |
210-00038 |
回位弹簧 Release spring |
1 |
| 8 |
210-00023 |
密封圈28×3.55 Seal ring |
4 |
| 9 |
210-00072 |
铲斗阀杆 Bucket valve rod |
1 |
| 10 |
360-00024 |
过载补油阀 Overload slippage valve |
1 |
| 11 |
210-00009 |
单向阀芯 Check- valve core |
4 |
| 12 |
310-00007 |
O形圈30×2.65 O-ring |
4 |
| 13 |
210-00008 |
弹簧 Spring |
4 |
| 14 |
210-00006 |
单向阀座1 Check- valve seat 1 |
1 |
| 15 |
210-00015 |
防尘圈座 Dustband seat |
2 |
| 16 |
314-00022 |
防尘圈BH28×36×4.5/6 Dustband |
2 |
| 17 |
360-00003 |
过载阀 Overload valve |
1 |
| 18 |
210-00010 |
单向阀座2 Check- valve seat 2 |
3 |
| 19 |
310-00021 |
O形圈32×3.1 O-ring |
1 |
| 20 |
210-00044 |
螺堵M30×1.5 Plug |
1 |
| 21 |
210-00073 |
动臂阀杆 Valve rod,movable arm |
1 |
| 22 |
210-00043 |
定位垫片 Locating gasket |
2 |
| 23 |
210-00033 |
定位座 Locating seat |
1 |
| 24 |
210-00032 |
定位弹簧 Locating spring |
1 |
| 25 |
316-00034 |
钢球Φ11 Steel ball |
2 |
| 26 |
210-00042 |
定位套 Locating sleeve |
1 |
| 27 |
210-00031 |
动臂端盖 End cover,movable arm |
1 |
| 28 |
210-00013 |
螺堵M14×1.5 Plug |
2 |
| 29 |
310-00014 |
O形圈6×2.4 O-ring |
2 |
| 30 |
210-00068 |
阀体 Valve body |
1 |
| 31 |
360-00011 |
安全阀 Safety valve |
1 |
| 32 |
310-00047 |
O形圈22×2.4 O-ring |
2 |
| 33 |
210-00046 |
螺堵M20×1.5 Plug |
2 |
