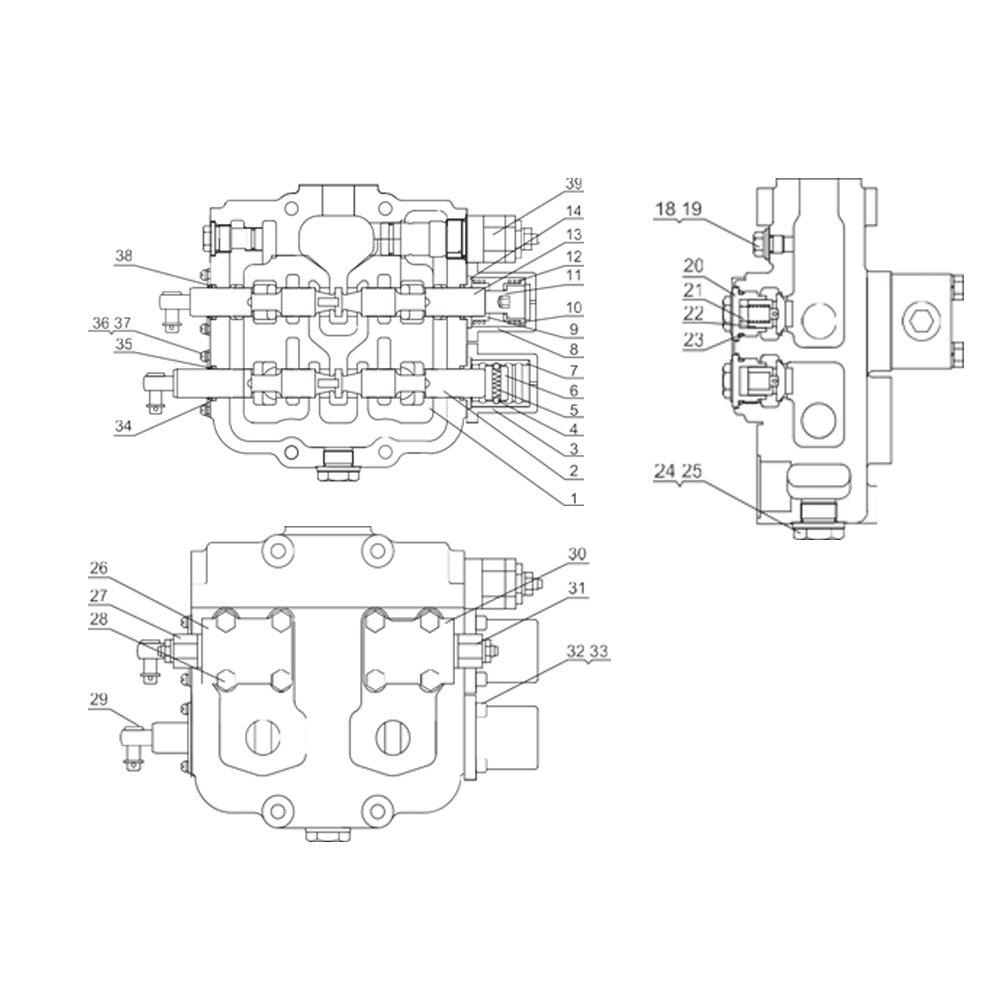

| NO. |
PART NO. |
PART NAME |
QTY |
| 1 |
SDK32.2-01 |
Hydraulic valve |
1 |
| 2 |
SDK32.2-03 |
Valve lever,movable arm |
1 |
| 3 |
SDK32.2-05-01 |
End cover,movable arm |
1 |
| 4 |
GB308 Φ8 |
Steel ball |
1 |
| 5 |
D32-05-04 |
Locating spring |
1 |
| 6 |
SDK32.2-05-03 |
Locating pillar |
1 |
| 7 |
SDK32.2-05-02 |
Locating sleeve |
1 |
| 8 |
SDK32.2-04-01 |
Pivoted-bucket end cover |
1 |
| 9 |
SDK32.2-04-02 |
Right spring seat |
1 |
| 10 |
SDK32.2-04-03 |
Left spring seat |
1 |
| 11 |
SDK25.2-04-04 |
Limited pillar |
1 |
| 12 |
D32-04-04 |
Reposition spring |
1 |
| 13 |
SDK32.2-02 |
Rotating bucket valve lever |
1 |
| 14 |
SDK32.2-06 |
Locating plate |
2 |
| 15 |
GB1235 22×2.4 |
Seal ring |
1 |
| 16 |
GB1235 28×3.1 |
Seal ring |
1 |
| 17 |
K32.2-09 |
End cap |
1 |
| 18 |
DF32-08A |
Small end cap |
1 |
| 19 |
GB1235 22×2.4 |
Seal ring |
1 |
| 20 |
K32.2-06-01 |
Check-valve cover |
2 |
| 21 |
K32.2-06-02 |
Check-valve spring |
2 |
| 22 |
K32.2-06-03 |
Check-valve |
2 |
| 23 |
GB1235 38×3.5 |
Seal ring |
2 |
| 24 |
DF32-15 |
Big plug |
1 |
| 25 |
GB1235 40×3.1 |
Seal ring |
1 |
| 26 |
K32.2-07 |
Front cavity overload valve body |
1 |
| 27 |
XDYF20-01 |
Front cavity overload valve |
1 |
| 28 |
DF32-14 |
Bolt |
8 |
| 29 |
DF32-13 |
Pin roll |
2 |
| 30 |
K32.2-08 |
Rear cavity overload valve body |
1 |
| 31 |
YF08-03 |
Rear cavity overload valve |
1 |
| 32 |
GB827 M8×2 |
screw |
8 |
| 33 |
GB93 8 |
Spring washer |
8 |
| 34 |
GB1235 34×3.5 |
Seal ring |
4 |
| 35 |
SDK32.2-09 |
Dustband |
2 |
| 36 |
GB67 M6×10 |
Screw |
8 |
| 37 |
GB93 6 |
Spring washer |
8 |
| 38 |
SDK32.2-10 |
Front press plate |
2 |
| 39 |
DF32-09 |
Safety valve assy. |
1 |
