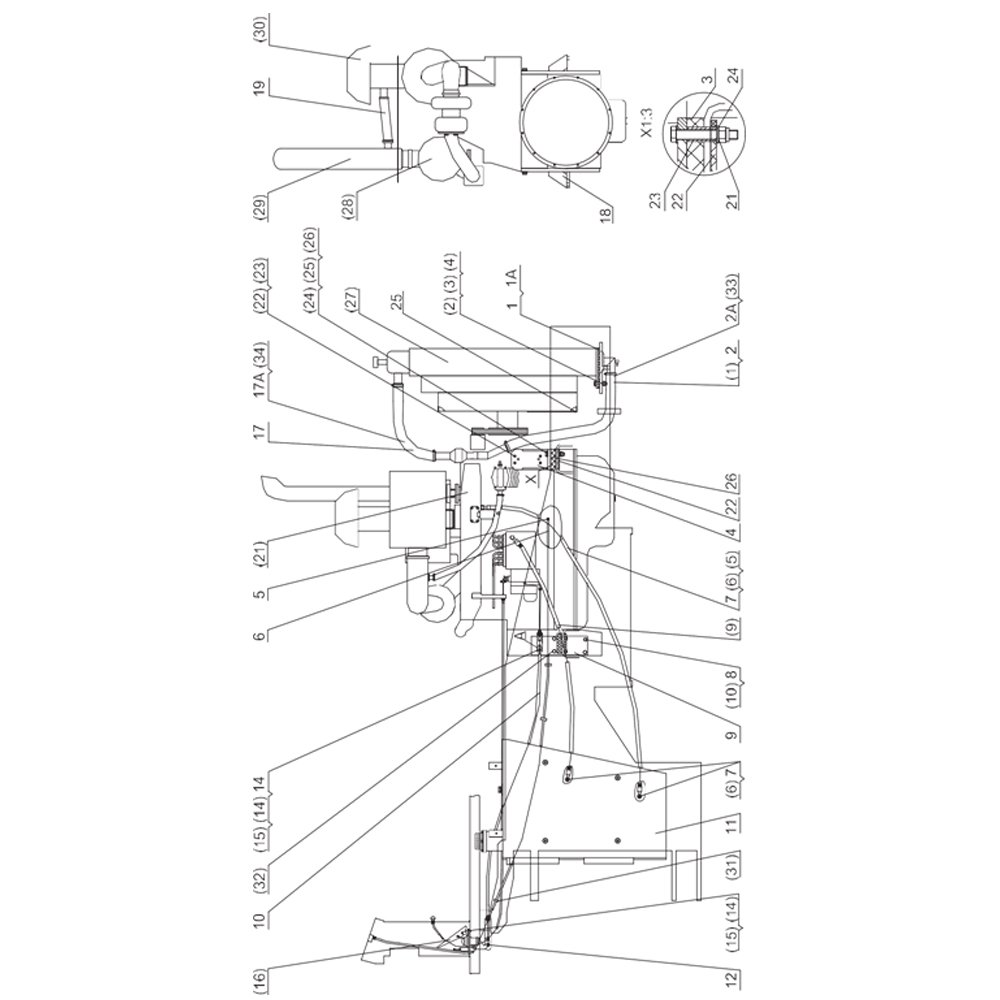

| NO. |
PART NO. |
PART NAME |
QTY |
| 1 |
ZL50G2-01002 |
水箱垫 Water tank pad |
2 |
| 1A |
DG956WⅡ-01001 |
水箱垫(配ZL60GT-1C) Water tank pad(forZL60GT-1C) |
2 |
| 2 |
ZL50G3-01002 |
发动机进水管 Engine inlet pipe |
1 |
| 2A |
DG958-01003B |
发动机进水管(配 Engine inlet pipe(for ZL60GT-ZL60GT-1C) 1C) |
1 |
| 3 |
ZL50G2-01004 |
发动机减震垫 Engine shock pad |
2 |
| 4 |
ZL50G2-01005B |
发动机前支座 Engine front bracket |
2 |
| 5 |
ZL50G2-01006 |
管接头 Tube pipe |
1 |
| 6 |
DG956WI-01006 |
测压胶管 Manometry hose |
1 |
| 7 |
ZL50G2-01007 |
铰接螺栓 Link bolt |
3 |
| 8 |
ZL50G2-01013 |
螺栓 Bolt |
8 |
| 9 |
ZL50G3-01009A |
发动机左前支座 Engine left-front bracket |
1 |
| 10 |
ZL50G2-01009 |
油门软轴3000mm Throttle flexible shaft |
1 |
| 11 |
DG957-01200 |
燃油箱总成 Fuel tank assy. |
1 |
| 14 |
ZL50G3-01013 |
油门支架 Throttle bracket |
1 |
| 17 |
ZL50G2-01015 |
发动机出水管φ45×650 Engine outlet pipe |
1 |
| 17A |
DG958-01015B |
发动机出水管(配ZL60GT- Engine outlet pipe(for ZL60GT-1C) 1C) |
1 |
| 18 |
ZL50G3-01017A |
发动机右后支座 Engine right-rear bracket |
1 |
| 19 |
ZL50G3-01018 |
联接管 Connection hose |
1 |
| 21 |
ZL50G2-01023 |
垫圈 Washer |
4 |
| 22 |
ZL50G2-01024 |
发动机减震垫 Engine shock pad |
4 |
| 23 |
ZL50G2-01025 |
支承套 Support sleeve |
8 |
| 24 |
ZL50G3-01025 |
垫圈 Washer |
4 |
| 25 |
DG958-01030 |
导风罩板(配ZL60GT-1C) Baffle(for ZL60GT-1C) |
1 |
| 26 |
ZL50G3-01027 |
发动机前减震垫 Engine shock pad |
2 |
| (1) |
JB3618.1 55～60 |
双钢丝卡箍55～60 Clamp |
4 |
| (2) |
GB5782 M14×70 |
螺栓M14×70 Bolt |
4 |
| (3) |
GB95 14 |
平垫14 Flat washer |
4 |
| (4) |
GB889 M14 |
螺母M14 Nut |
4 |
| (5) |
GB3452 10A-A-2100 |
输油胶管10A-A-2100 Oil transfer hose |
1 |
|
GB3452 10A-A-2600 |
输油胶管10A-A-2600 (配 Oil transfer hose WD10G220E21) |
1 |
| (6) |
JB982 14 |
组合垫圈14 Combined washer |
6 |
| (9) |
GB3452 10A-A-2100 |
输油胶管10A-A-2100 Oil transfer hose |
1 |
|
GB3452 10A-A-2200 |
输油胶管10A-A-2200 (配 Oil transfer hose WD10G220E21) |
1 |
| (10) |
GB93 14 |
弹垫14 Spring washer |
8 |
| (14) |
GB5781 M6×16 |
螺栓M6×16 Bolt |
5 |
| (15) |
GB93 6 |
弹垫6 Spring washer |
5 |
| (16) |
XZ(QZ)1129001 |
油门操作阀 Throttle control valve |
1 |
| (21) |
WD10G220E23 |
发动机 Engine |
1 |
|
WD10G220E21 |
发动机(配WG180变速箱) Engine(for WG180) |
1 |
| (22) |
GB5783 M12×35 |
螺栓M12×35 Bolt |
8 |
| (23) |
GB93 12 |
弹垫12 Spring washer |
8 |
| (24) |
GB5782 M16×1.5×90 |
螺栓M16×1.5×90 Bolt |
8 |
| (25) |
GB95 16 |
平垫16 Flat washer |
8 |
| (26) |
GB889 M16×1.5 |
螺母M16×1.5 Nut |
8 |
| (27) |
DG50B |
水油结合散热器 Water-oil combination radiator |
1 |
|
ZL60GT-1C |
水油结合散热器(大) Water-oil combination radiator ( big) |
1 |
| (28) |
WD10G220E23-xsq |
消声器 Muffler |
1 |
| (29) |
WD10G220E23-pqg |
排气管 Exhaust pipe |
1 |
| (30) |
WD10G220E23-klq |
空滤器 Air filter |
1 |
| (31) |
D2900-20000 |
可松开式扎带200×8 Clamp |
3 |
| (32) |
GB73 M14×1.5×12 |
顶丝 M14×1.5×12 Screw |
4 |
| (33) |
JB3618.1 75～80 |
双钢丝卡箍70～75 Clamp |
1 |
| (34) |
JB3618.1 60～65 |
双钢丝卡箍60～65 Clamp |
1 |
