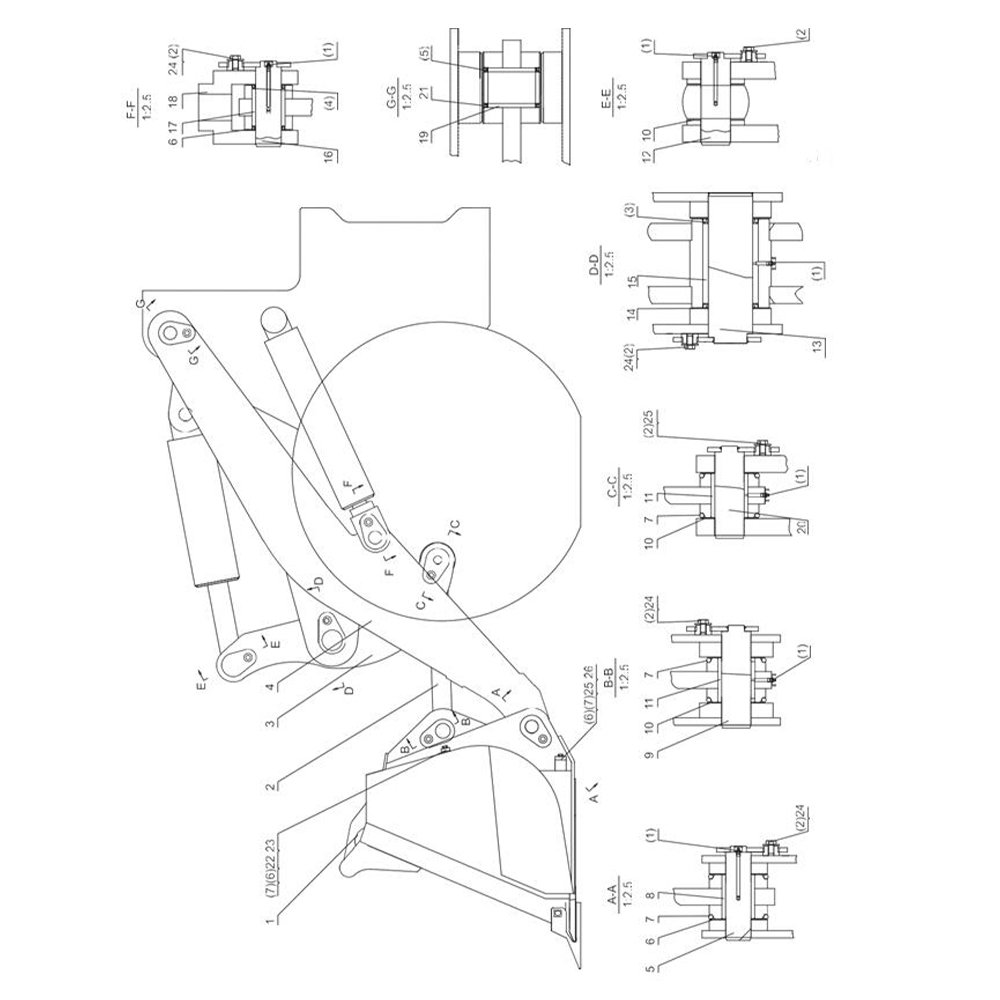

| NO. | PART NO. | PART NAME | QTY |
| 1 | ZL50G2-B11100D | 铲斗(标准) Bucket(standard) | 1 |
| ZL50G2-C11100 | 铲斗(2.5m³) Bucket | 1 | |
| ZL50G2-11100MD | 煤斗 Coal bucket | 1 | |
| ZL50G2-A11100YD | 岩石斗 Rock bucket | 1 | |
| 2 | ZL50G2-11200A | 连杆 Connecting rod | 1 |
| ZL50JG2-11200 | 连杆(加长臂,长臂金刚用) Connecting rod(for extend arm and long arm) | 1 | |
| 3 | ZL50G2-11300D | 摇臂 Rocker arm | 1 |
| ZL50JG2-11300D | 摇臂(加长臂,长臂金刚用) Rocker arm(for extend arm and long arm) | 1 | |
| 4 | ZL50G2-11400D | 动臂 Movable arm | 1 |
| ZL50JG2-11400D | 动臂(加长臂用) Movable arm(for extend arm) | 1 | |
| DG956H-11400D | 动臂(长臂金刚用) Movable arm(for long arm) | 1 | |
| 5 | ZL50G2-11500D | 轴总成 Shaft assembly | 2 |
| 6 | ZL50G2-11000-1 | 调整垫片 Adjusting gasket | 8 |
| 7 | ZL50G2-11000-2 | 防尘圈 Scraper seal | 8 |
| 8 | ZL50G2-11000-3A | 铲斗动臂衬套 Bushing | 2 |
| 9 | ZL50G2-11600D | 轴总成 Shaft assembly | 1 |
| 10 | ZL50G2-11000-4 | 调整垫片 Adjusting gasket | 12 |
| 11 | ZL50G2-11000-5B | 铲斗拉杆销衬套 Bushing | 2 |
| 12 | ZL50G2-11700D | 轴总成 Shaft assembly | 1 |
| 13 | ZL50G2-11800D | 轴总成 Shaft assembly | 1 |
| 14 | ZL50G2-11000-6 | 调整垫片 Adjusting gasket | 4 |
| 15 | ZL50G2-11000-7B | 摇臂主销衬套 Bushing | 1 |
| 16 | ZL50G2-11900D | 轴总成 Shaft assembly | 2 |
| 17 | ZL50G2-11000-8 | 动臂中销衬套 Bushing | 2 |
| 18 | ZL50G2-11000-9D | 举升缸叉头 Lifting cylinder clevis | 2 |
| 19 | ZL50G2-11000-10 | 动臂后销衬套 Bushing | 2 |
| 20 | ZL50G2-11010D | 轴总成 Shaft assembly | 1 |
| 21 | ZL50G2-11000-12 | 调整垫 Adjusting gasket | 2 |
| 22 | ZL50G2-11000-13 | 压板 Press board | 3 |
| 23 | ZL50G2-11000-14 | 调整垫 Adjusting gasket | 1 |
| 24 | DG953-11005 | 垫圈 Washer | 8 |
| 25 | ZL50G2-A11125Y | 调整垫 Adjusting gasket | 1 |
| 26 | ZL50G2-A11126Y | 压板 Press board | 3 |
| (1) | GB1152 M10×1 | 油杯 M10×1 Oil cup | 8 |
| (2) | GB5783 M16×30 | 螺栓 M16×30 Bolt | 8 |
| (3) | HG4-692 PD120×150×14 | 油封 PD120×150×14 Oil seal | 2 |
| (4) | HG4-692 PD70×90×12 | 油封 PD70×90×12 Oil seal | 4 |
| (5) | DG953-11-FCQ-04 | 油封PD95×110×10 Oil seal | 4 |
| (6) | GB5783 M16×50 | 螺栓 M16×50 Bolt | 4 |
| (7) | GB93 16 | 弹垫16 Spring washer | 4 |
