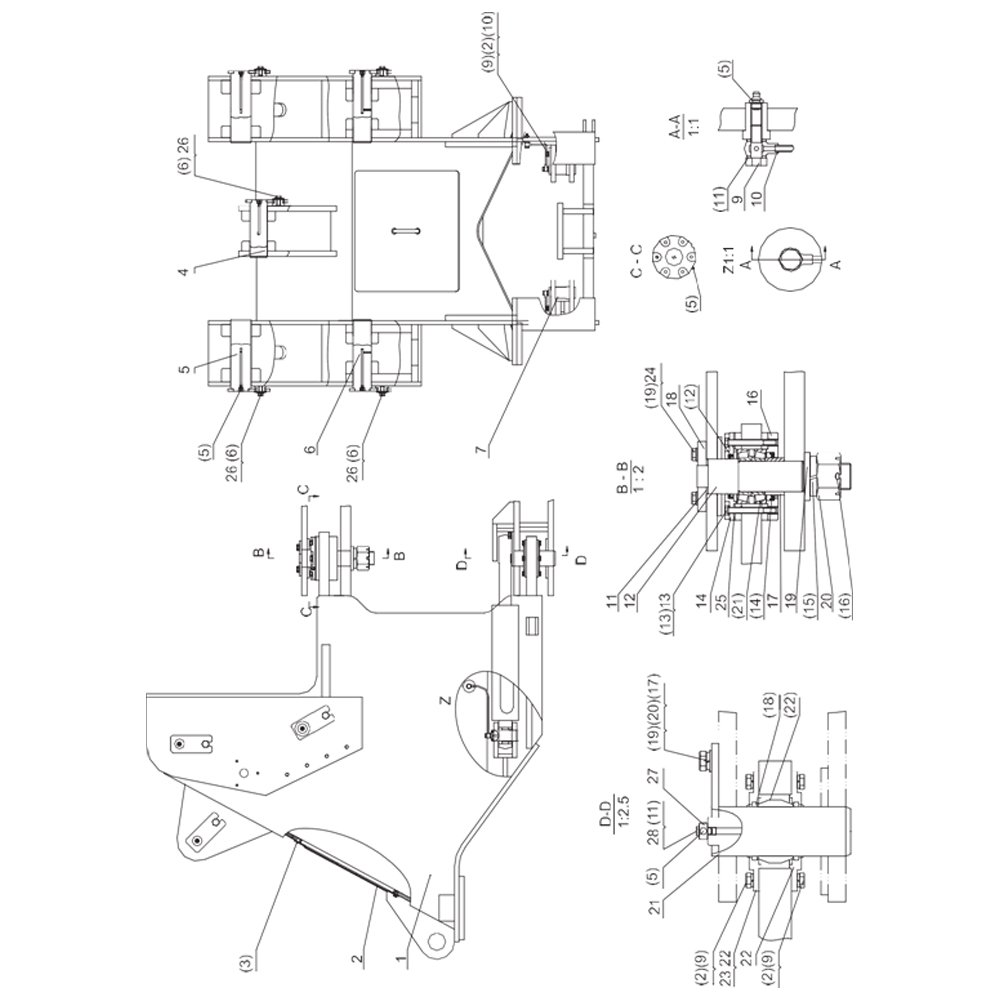

| NO. |
PART NO. |
PART NAME |
QTY |
| 1 |
ZL50FIII(A)-09100A |
前车架(配机械操纵) Front frame(for mechanical control) |
1 |
|
ZL50G2(A)-09100A |
前车架(配先导操纵) Front frame(for pilot control) |
1 |
| 2 |
ZL50G2-09001A |
小盖板 Cover board |
1 |
| 4 |
ZL50G2-09300D |
翻斗缸后销轴总成 R/pin assy.,tipping cylinder |
1 |
| 5 |
ZL50G2-09400D |
动臂后销轴总成 R/pin assy.,movable arm |
2 |
| 6 |
ZL50G2-09500D |
举升缸后销轴总成 R/pin assy.,lifting cylinder |
2 |
| 7 |
ZL50G2-09600 |
转向缸前销轴总成 F/pin assy.,steering cylinder |
2 |
| 9 |
ZL50G2-09003 |
铰接螺栓 Link bolt |
4 |
| 10 |
ZL50G2-09700A |
前转向润滑油管 Lubricating pipe |
2 |
| 11 |
ZL50FIII(A)-09004 |
调整垫 Adjusting gasket |
1 |
| 12 |
ZL50FIII(A)-09005 |
上铰接轴 Upper link shaft |
1 |
| 13 |
ZL50FIII(A)-09006 |
垫圈 Washer |
6 |
| 14 |
ZL50FIII(A)-09007 |
轴承盖 Bearing cover |
1 |
| 16 |
ZL50FIII(A)-09009 |
轴承座 Bearing base |
1 |
| 17 |
ZL50FIII(A)-09010 |
隔套 Sleeve |
1 |
| 18 |
ZL50FIII(A)-09011 |
压板 Press board |
1 |
| 19 |
ZL50G2-09007A |
盘 Pan |
1 |
| 20 |
ZL50G2-09008 |
开槽螺母 Slotted nut |
1 |
| 21 |
ZL50G2-09900 |
下铰接轴总成 Lower jointed shaft assy. |
1 |
| 22 |
ZL50G2-09009 |
下铰接轴承盖 Lower jointed bearing cover |
2 |
| 23 |
ZL50G2-09010 |
垫子 Pad |
1 |
| 24 |
ZL50FIII(A)-09016 |
垫圈 Washer |
4 |
| 25 |
ZL50FIII(A)-09017 |
调整垫 Adjusting gasket |
6 |
| 26 |
DG953-11005 |
垫圈 Washer |
5 |
| 27 |
DG930A-09005 |
丝座 Base |
1 |
| 28 |
DG930A-09006 |
铰接螺栓 Link bolt |
1 |
| (2) |
GB93 12 |
弹垫12 Spring washer |
26 |
| (3) |
GB5787 M8×20 |
螺栓 M8×20 Bolt |
6 |
| (5) |
GB1152 M10×1 |
油杯 M10×1 Oil cup |
10 |
| (6) |
GB5783 M16×30 |
螺栓 M16×30 Bolt |
5 |
| (9) |
GB5783 M12×30 |
螺栓 M12×30 Bolt |
26 |
| (10) |
GB95 12 |
垫圈12 Washer |
2 |
| (11) |
JB982 10 |
组合垫圈10 Combined washer |
13 |
| (12) |
GB9877.1 B80×100×10 |
唇形密封圈 B80×100×10 Seal ring |
1 |
| (13) |
GB5782 M12×110 |
螺栓 M12×110 Bolt |
6 |
| (14) |
GB9877.1 B85×110×12 |
唇形密封圈 B85×110×12 Seal ring |
1 |
| (15) |
GB93 48 |
弹垫48 Spring washer |
1 |
| (16) |
GB91 6.3×90 |
开口销6.3×90 Cotter pin |
1 |
| (17) |
GB95 16 |
垫圈16 Washer |
1 |
| (18) |
SJM03-1 70 |
防尘圈70 Dust ring |
2 |
| (19) |
GB5783 M16×40 |
螺栓M16×40 Bolt |
5 |
| (20) |
GB93 16 |
弹垫16 Spring washer |
1 |
| (21) |
GB297 7514E |
圆锥滚子轴承7514E Bearing |
2 |
| (22) |
GB304.5 GE70ES |
关节轴承GE70ES Joint bearing |
1 |
