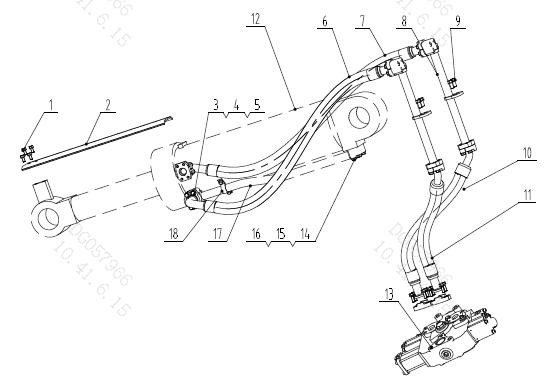

STR L58STR L58 Tipping Cylinder Piping
| NO. |
PART NO. |
PART NAME |
QTY |
| 1 |
GB16674.1-M10X20 |
Bolt |
6 |
| 2 |
1457-62-00018 |
Lever protector |
1 |
| 3 |
07010-24038 |
O-ring |
8 |
| 4 |
GB16674.1-M10X30 |
Bolt |
32 |
| 5 |
07371-31255 |
Flange |
16 |
| 6 |
03031-5AC551390 |
Oil tube |
1 |
| 7 |
03031-5AC551460 |
Oil tube |
1 |
| 8 |
1455-62V-11000 |
Joint |
2 |
| 9 |
GB16674.1-M12X25 |
Bolt |
4 |
| 10 |
03031-5AB551030 |
Hose |
1 |
| 11 |
03031-5AB550910 |
Hose |
1 |
| 12 |
1464-81-13100 |
Tipping cylinder |
1 |
| 13 |
1455-62-35000 |
Valve(Mechanics) |
1 |
|
1455-62-24000 |
Valve( Forerunner) |
1 |
| 14 |
07282-13411 |
Clamp |
1 |
| 15 |
GB16674.1-M10X50 |
Bolt |
2 |
| 16 |
GB16674.1-M10X55 |
Bolt |
2 |
| 17 |
07000-13035 |
O-ring |
1 |
| 18 |
1456-64E-02000 |
Tubing |
1 |
