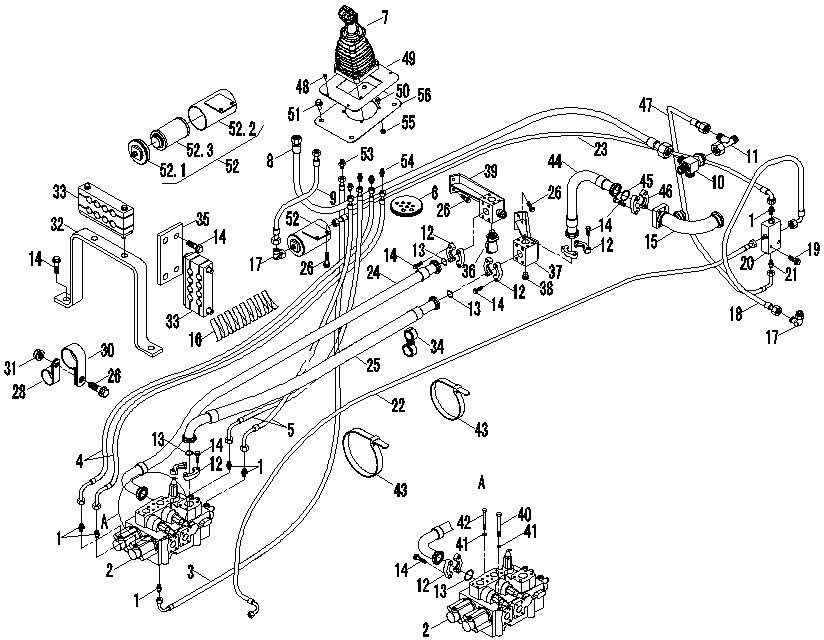

| No. | Code | Description | Quantity |
| 1 | QLWZG074-001414 | STRAIGHT JOINT | 5 |
| 10 | 9F650-59C010000A0 | FOUR-WAY JOINT | 1 |
| 11 | QLWZG079-101818 | TEE | 1 |
| 11 | QLWZG079-101818 | TEE | 1 |
| 12 | QLWZG090-024450 | FLANGE | 10 |
| 13 | ISO3601-47.22X3.53-90 | O-RING | 5 |
| 14 | GBT16674.1-M12X30-8.8-A3L | BOLT | 26 |
| 15 | 9F859-59A020000A0 | OIL RETURN STEEL PIPE | 1 |
| 16 | 9F850-59A000001A0 | JACKET | 2 |
| 16 | 9F850-59A000001A0 | JACKET | 2 |
| 17 | QLWZG078-001616 | RIGHT ANGLE COMBINATION JOINT | 2 |
| 18 | QLWZG056.2-0051200 | 24 TAPER HOSE ASSEMBLY | 1 |
| 2 | 9F850-59A020000A0 | MULTI-WAY DIVERTER VALVE | 1 |
| 20 | 9F859-59A100000A0 | PRESSURE SELECTION VALVE | 1 |
| 21 | QLWZG074-001814 | STRAIGHT JOINT | 1 |
| 22 | 9F859-59A060000A1 | FLAMEOUT PULL WIRE | 1 |
| 23 | 9F859-59A070000A0 | PILOT FILTER OIL INLET HOSE | 1 |
| 24 | 9F859-59A050000A0 | OIL INLET HOSE OF MULTI-WAY VALVE | 1 |
| 25 | 9F859-59A040000A0 | OIL RETURN HOSE OF MULTI-WAY VALVE | 1 |
| 26 | GBT16674.1-M10X20-8.8-A3L | BOLT | 9 |
| 28 | QLWZG102-00426 | PIPE CLAMP | 1 |
| 3 | QLWZG056.2-0043050 | 24 TAPER HOSE ASSEMBLY | 1 |
| 30 | QLWZG102-00219 | PIPE CLAMP | 1 |
| 31 | GBT6177.1-M10-8-A3L | NUT | 5 |
| 31 | GBT6177.1-M10-8-A3L | NUT | 5 |
| 32 | 9F859-59A000001B0 | SUPPOT BRACKET | 1 |
| 33 | 9F653-59C020000A0 | PIPE CLAMP | 2 |
| 34 | 9F653-59A070000B0 | PIPE CLAMP | 1 |
| 35 | 9F653-59C000004A0 | FIXED PLATE | 1 |
| 36 | 9F850-59A190000A0 | PLUG FOR MEASURING PRESSURE M14X1.5ED | 1 |
| 37 | 9F859-59A030000A1 | LOW PRESSURE OIL DIVIDING BLOCK | 1 |
| 38 | QLWZG087-001406 | PLUG | 1 |
| 39 | 9F859-59A010000B0 | HIGH PRESSURE OIL DISTRIBUTOR BLOCK | 1 |
| 4 | QLWZG056.2-0043250 | 24 TAPER HOSE ASSEMBLY | 2 |
| 40 | 9G650-59A000002A0 | BOLT M12X160 | 2 |
| 41 | GBT93-12-A3L | WASHER | 3 |
| 42 | 9F850-59A000006A0 | BOLT M12X138 | 1 |
| 43 | 9F859-59A000002A0 | WIDE SELF-LOCK ENSWATHE BEL | 5 |
| 44 | QLWZG051.3-0200690 | FLANGE HOSE | 1 |
| 45 | ISO3601-37.69X3.53-90 | O-RING | 2 |
| 46 | QLWZG090-020380 | FLANGE | 4 |
| 47 | QLWZG056.2-0061650 | 24 TAPER HOSE ASSEMBLY | 1 |
| 48 | GBT818-M5X10-4.8-A2L | SCREW | 4 |
| 49 | 9F560-59B000004A0 | UPPER COVER PLATE | 1 |
| 5 | QLWZG056.2-0042750 | 24 TAPER HOSE ASSEMBLY | 2 |
| 50 | GBT16674.1-M6X12-8.8-A2L | BOLT | 4 |
| 51 | GBT16674.1-M10X50-8.8-A3L | BOLT | 4 |
| 52 | 9G661-59A050000A0 | FILTER | 1 |
| 52.1 | 9G661-59A050001A0 | END COVER | 1 |
| 52.2 | 9G661-59A050002A0 | CYLINDER HOUSING | 1 |
| 52.3 | 9G661-59A050003A0 | FILTER | 1 |
| 53 | QLWZG075-201404 | STRAIGHT JOINT | 5 |
| 54 | QLWZG075-201604 | STRAIGHT JOINT | 2 |
| 55 | GBT6177.1-M6-8-A2L | NUT | 4 |
| 56 | 9F560-59B000003A0 | UPPER COVER PLATE | 1 |
| 6 | 9F653-59B000003A0 | RUBBER SHEATH | 1 |
| 7 | 9F560-59B050000A0 | PRIORITY VALVE | 1 |
| 8 | 9F859-59A090000A0 | OIL RETURNING PIPE OF PRIORITY VALVE | 1 |
| 9 | QLWZG056.1-0051450 | 24 TAPER HOSE ASSEMBLY | 1 |
