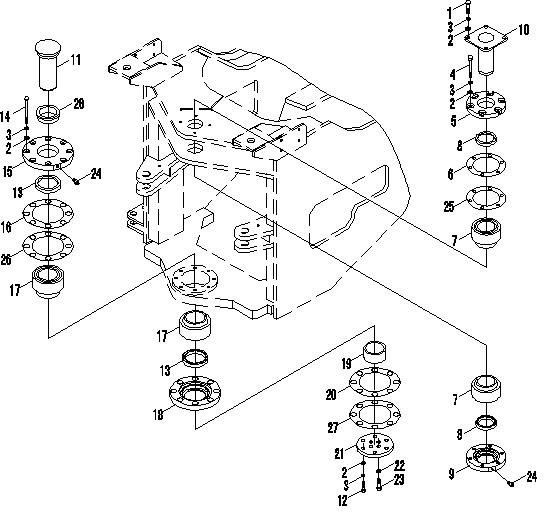

| No. | Code | Description | Quantity |
| 1 | GBT5783-M12X40-10.9-A3L | BOLT | 4 |
| 10 | 9F850-12A010000A0 | UPPER JOINT PIN | 1 |
| 11 | 9F850-12A000005A0 | LOWER HINGE PIN | 1 |
| 12 | GBT5783-M12X45-8.8-A3L | BOLT | 6 |
| 12 | GBT5783-M12X45-8.8-A3L | BOLT | 6 |
| 13 | GBT9877.1-B100X125X12D | SEAL RING | 2 |
| 14 | 9F850-12A000016A0 | BOLT | 8 |
| 15 | 9F850-12A000006A0 | UPPER COVER | 1 |
| 16 | 9F850-12A000007A0 | ADJUSTING GASKET | 2 |
| 17 | GBT297-33217 | BEARING | 2 |
| 18 | 9F850-12A000008A0 | LOWER COVER | 1 |
| 19 | 9F850-12A000009A0 | SPACER BUSH | 1 |
| 19 | 9F850-12A000009A0 | SPACER BUSH | 1 |
| 19.1 | 9F850-12A020000A0 | BEARING ASSEMBLY | 1 |
| 2 | GBT97.1-12-A0P | WASHER | 24 |
| 2 | GBT97.1-12-A3L | WASHER | 29 |
| 20 | 9F850-12A000010A0 | ADJUSTING GASKET | 2 |
| 21 | 9F850-12A000011A0 | LOCKING PLATE | 1 |
| 22 | GBT93-16-A0P | SPRING WASHER | 4 |
| 23 | GBT5782-M16X90-8.8-A2L | BOLT | 4 |
| 24 | JBT7940.1-M10X1 | STRAIGHT PRESSURE FILLING OIL CUP | 2 |
| 25 | 9F850-12A000012A0 | ADJUSTING GASKET | 1 |
| 26 | 9F850-12A000013A0 | ADJUSTING GASKET | 2 |
| 26 | 9F850-12A000013A0 | ADJUSTING GASKET | 2 |
| 27 | 9F850-12A000014A0 | ADJUSTING GASKET | 2 |
| 28 | 9F850-12A000001A0 | SHAFT SLEEVE | 1 |
| 28 | 9F850-12A000001A0 | SHAFT SLEEVE | 1 |
| 28 | GBT93-16-A3L | WASHER | 4 |
| 3 | GBT93-12-A3L | WASHER | 29 |
| 3 | GBT93-12-A0P | SPRING WASHER | 24 |
| 4 | 9F850-12A000015A0 | BOLT | 6 |
| 5 | 9F850-12A000002A0 | COVER | 1 |
| 5 | 9F850-12A000002A0 | COVER | 1 |
| 6 | 9F850-12A000003A0 | ADJUSTING GASKET | 1 |
| 7 | GBT297-32016 | BEARING | 2 |
| 8 | GBT9877.1-B80X100X10F | SEAL RING | 2 |
| 9 | 9F850-12A000004A0 | COVER | 1 |
| GBT5782-M16X90-8.8-A3L | BOLT | 4 | |
| GBT5783-M12X40-8.8-A3L | BOLT | 4 |
