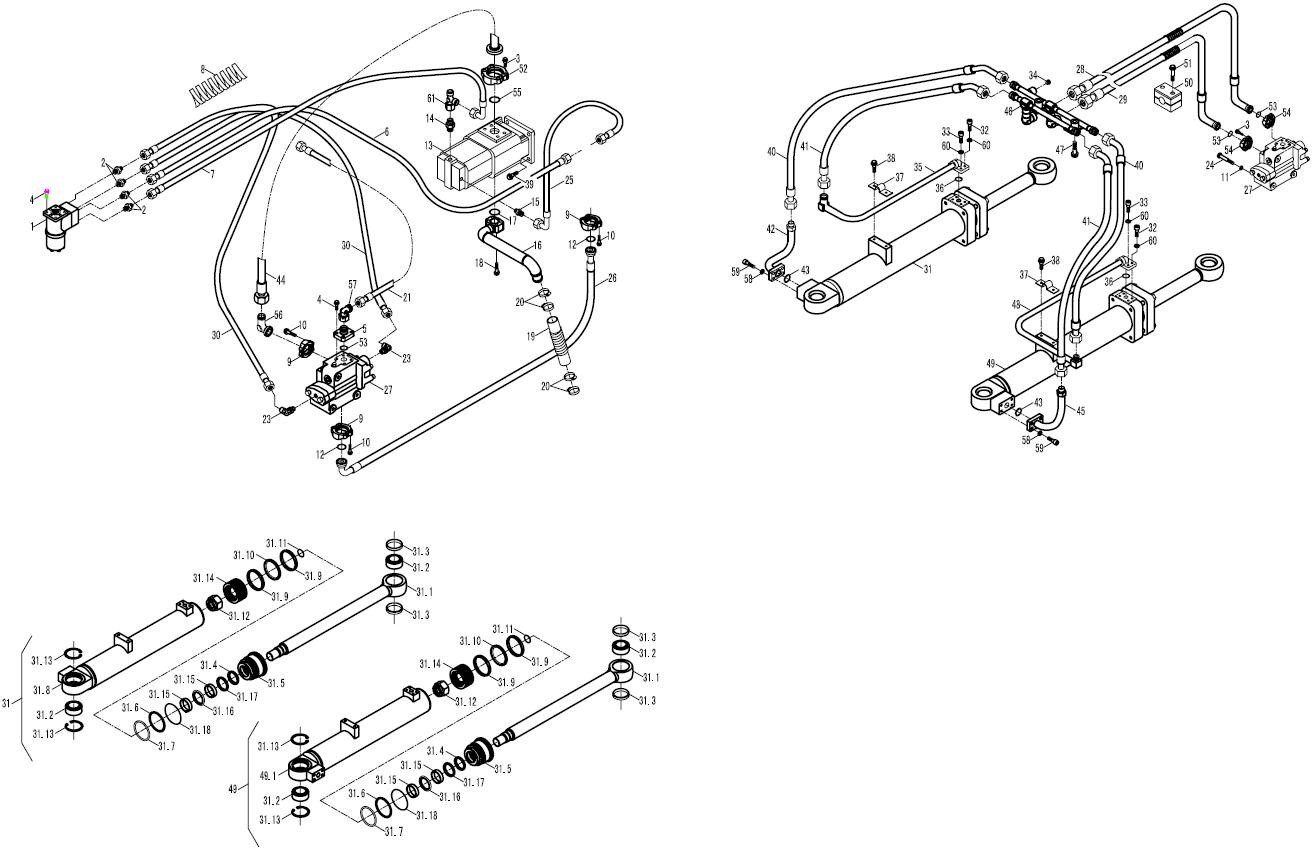

| No. | Code | Description | Quantity |
| 1 | 9F850-54A010000A0 | FULL HYDRAULIC STEERING MECHANISM | 1 |
| 11 | GBT93-12-A3L | WASHER | 3 |
| 12 | IS03601-37.69X3.53-90 | O-RING | 2 |
| 13 | 9F852-54A020000A0 | GEAR PUMP | 1 |
| 14 | QLWZG075-001614 | STRAIGHT JOINT | 1 |
| 15 | QLWZG075-001814 | STRAIGHT JOINT | 1 |
| 16 | 9F852-54A030000C0 | OIL SUCTION STEEL PIPE OF STEERING PUMP | 1 |
| 17 | IS03601-47.22X3.53-90 | O-RING | 1 |
| 18 | GBT16674.1-M12X60-8.8-A2L | BOLT | 4 |
| 19 | 9F852-54A000001C0 | OIL SUCTION HOSE | 1 |
| 2 | QLWZG074-001820 | STRAIGHT JOINT | 4 |
| 20 | Q67670 | B-TYPE WORM TRANSMISSION HOSE CLAMP | 4 |
| 21 | QLWZG059.3-0120750 | 24 TAPER HOSE ASSEMBLY | 1 |
| 23 | QLWZG077-001814 | RIGHT-ANGLE ADJUSTING JOINT | 2 |
| 24 | 9F850-54A000006A0 | BOLT M12X105 | 3 |
| 25 | 9F852-54A050000B0 | STEERING PUMP OVER FALL HOSE | 1 |
| 26 | QLWZG051.2-0201180 | FLANGE HOSE | 1 |
| 27 | 9F850-54A120000A0 | FLOW ENLARGING VALVE | 1 |
| 28 | 9F650-54B100000B0 | FLOW ENLARGING VALVE B HOSE | 1 |
| 29 | 9F650-54B110000B0 | FLOW ENLARGING VALVE A HOSE | 1 |
| 3 | GBT16674.1-M10X30-8.8-A3L | BOLT | 12 |
| 30 | QLWZG056.3-0061560 | 24 TAPER HOSE ASSEMBLY | 2 |
| 31 | 9F850-54A160000A2 | RIGHT STEERING CYLINDER | 1 |
| 31.1 | 9F850-54A250001A0 | PISTON ROD | 1 |
| 31.13 | GBT893.1-68 | SNAP RING | 2 |
| 31.14 | 9F850-54A250004A0 | PISTON | 1 |
| 31.15 | 9F850-54A250005A0 | RING、WEAR | 2 |
| 31.18 | FB-GB1235-76-95X3.1-90 | O-TYPE RUBBER SEAL RING | 1 |
| 31.2 | GBT9163-GE45ES | KNUCKLE BEARING GE45ES | 2 |
| 31.3 | 9F850-54A250002A0 | RETAINER RING | 2 |
| 31.5 | 9F850-54A250003B0 | GUIDE SLEEVE | 1 |
| 31.8 | 9F850-54A160300B0 | 1 | |
| 32 | GBT70.1-M8X35-8.8-A2L | INNER HEXAGON HEAD BOLT | 4 |
| 33 | GBT70.1-M8X45-8.8-A2L | INNER HEXAGON HEAD BOLT | 4 |
| 34 | QLWZG087-101406 | PLUG | 1 |
| 35 | 9F653-54A090000B1 | STEEL PIPE OF RIGHT STEERING CYLINDER | 1 |
| 36 | ISO3601-18.64X3.53-90 | SMALL CHAMBER | 2 |
| 37 | 9F850-54A000008B0 | O-RING | 2 |
| 38 | GBT16674.1-M8X16-8.8-A2L | PIPE CLAMP | 4 |
| 39 | GBT16674.1-M12X30-8.8-A3L | BOLT | 4 |
| 4 | GBT16674.1-M10X25-8.8-A3L | 8 | |
| 40 | QLWZG057.1-0080520 | BOLT | 2 |
| 41 | QLWZG057.1-0080490 | 24 TAPER HOSE ASSEMBLY | 2 |
| 42 | 9F653-54A120000B1 | 24 TAPER HOSE ASSEMBLY | 1 |
| 43 | ISO3601-24.99X3.53-90 | STEEL PIPE OF RIGHT STEERING CYLINDER BIG | 2 |
| CHAMBER | |||
| 44 | 9F852-54A070000B0 | O-RING | 1 |
| 45 | 9F653-54A130000B1 | 1 | |
| 46 | 9F653-54A190000A1 | OIL OUTLET BLOCK OF PUMP | 1 |
| 47 | GBT16674.1-M12X45-8.8-A3L | BIG CHAMBER TUBE OF STEERING CYLINDER | 2 |
| 48 | 9F653-54A140000B1 | STEERING CYLINDER PIPE | 1 |
| 49 | 9F850-54A250000A2 | LEFT STEERING CYLINDER | 1 |
| 49.1 | 9F850-54A250300B0 | 1 | |
| 5 | 9F852-54A000002A0 | INTERFLOW JOINT | 1 |
| 50 | 9F850-54A000009A0 | PIPE CLAMP | 2 |
| 51 | GBT16674.1-M6X60-8.8-A2L | BOLT | 4 |
| 52 | QLWZG090-020380 | FLANGE | 2 |
| 53 | ISO3601-32.92X3.53-90 | O-RING | 3 |
| 54 | QLWZG090-016300 | FLANGE | 4 |
| 55 | ISO3601-37.69X3.53-90 | O-RING | 1 |
| 56 | QLWZG080-103620 | RIGHT-ANGLE FLANGE JOINT | 1 |
| 57 | QLWZG078-003030 | RIGHT ANGLE COMBINATION JOINT | 1 |
| 57 | QLWZG078-003030 | RIGHT ANGLE COMBINATION JOINT | 1 |
| 58 | GBT93-10-A3L | WASHER | 8 |
| 58 | GBT93-10-A3L | WASHER | 8 |
| 59 | GBT70.1-M10X30-8.8-A3L | SCREW | 8 |
| 6 | QLWZG056.3-0060920 | 24 TAPER HOSE ASSEMBLY | 1 |
| 60 | GBT93-8-A3L | WASHER | 8 |
| 61 | QLWZG079-101616 | TEE JOINT | 1 |
| 7 | 9F852-54A010000B0 | OIL INLET HOSE OF STEERING MECHANISM | 1 |
| 8 | 9F850-59A000001A0 | JACKET | 1 |
| 8 | 9F850-59A000001A0 | JACKET | 1 |
| 9 | 9F850-54A000003A0 | FLANGE | 4 |
| 9F865-54A020000A0 | GEAR PUMP | 1 |
