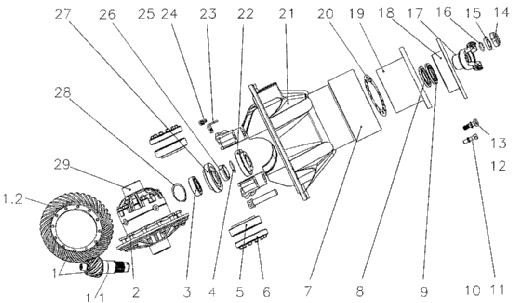

| No. | Code | Description | Quantity |
| 1 | 82786511 | MAIN TRASMISSION GEAR COUPLE SET | 1 |
| 1.1 | 82786512 | MAIN DRIVE SCREW PRICK GEAR | 1 |
| 1.2 | 82786513 | DRIVEN SCREW PRICK GEAR | 1 |
| 10 | 50011008 | HEXAGON BOLT M12X1.5X55 | 1 |
| 11 | 52020004 | WASHER | 1 |
| 12 | 50011011 | HEXAGON BOLT M14X1.5X45 | 7 |
| 13 | 52020005 | WASHER 14 | 7 |
| 14 | 82799502 | LOCKING NUT M36X1.5 | 1 |
| 15 | 82786509 | WASHER | 1 |
| 16 | 82786510 | O-RING | 1 |
| 17 | 82902501 | LINK FLANGE | 1 |
| 18 | 82786505 | COVER | 1 |
| 19 | 82786506 | BEARING SEAT | 1 |
| 2 | 82786517 | SCREW PLUG | 12 |
| 20 | 82786508 | ADJUSTING WASHER GROUP | 1 |
| 21 | 82198501 | MAIN REDUCER HOUSING UNIT | 1 |
| 22 | 54100013 | BEARING 31311 | 1 |
| 23 | 82786520 | LOCK SHIM | 2 |
| 24 | 50009011 | BOLT M10 20 | 4 |
| 25 | 52020003 | WASHER | 4 |
| 26 | 82197513 | BEARING SPACING SLEEVE | 1 |
| 27 | 54500023 | BEARING 3134 | 1 |
| 28 | 52100015 | RETAINER RING | 1 |
| 29 | 82197517 | DIFFERENTIAL ASSEMBLY | 1 |
| 3 | 54950001 | BEARING | 1 |
| 4 | 82197505 | ADJUSTING WASHER | 1 |
| 4 | 82197506 | ADJUSTING WASHER | 1 |
| 4 | 82197511 | ADJUSTING WASHER GROUP | 1 |
| 4 | 82197507 | ADJUSTING WASHER | 1 |
| 5 | 54100049 | BEARING 32218 | 2 |
| 6 | 82786519 | ADJUST NUT | 2 |
| 7 | 82786522 | SUPPORTING BUSH | 1 |
| 8 | 53500007 | HMSA7 OIL SEALING、80X100X10 | 1 |
| 8 | 53500007 | HMSA7 OIL SEALING、80X100X10 | 1 |
| 9 | 53500008 | OIL SEALING | 1 |
