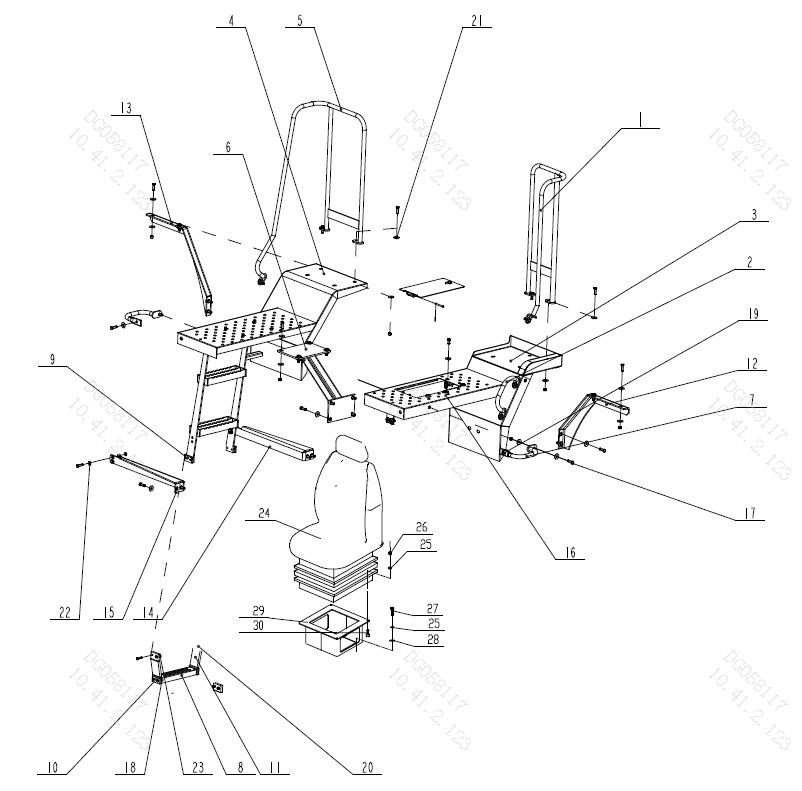

STR L58 Floor Board Assembly

NO.	PART NO.	PART NAME	QTY
0	1456-54E-A0000	Rear fender assembly	1
1	1455-51-05000	Rear handrail(L)	1
2	1455-51-13000	Handler	1
3	1456-54E-01000	Left board	1
4	1456-54E-02000	Right board	1
5	1456-54E-03000	Rear handrail(R)	1
6	1456-54E-04000	Side bracket	1
7	1456-54E-05000	Front handrail	2
8	1455-51-00006	Pedal	1
9	1455-51-00007	Dead plate	2
10	1455-51-00008	Dead plate	2
11	1455-51-00023	Drawstring	2
12	1455-51Y-00001	Left bracket	1
13	1455-51Y-00002	Right bracket	1
14	1455-51Y-07001	Support flat	1
15	1455-51Y-07002	Support flat	1
16	GB5783-M12X25	Bolt	6
17	GB5783-M12X40	Bolt	36
18	GB5783-M8X35	Bolt	8
19	GB6170-M12	Nut	24
20	GB6170-M8	Nut	8
21	GB96_1-12	Gasket	58
22	GB97_1-12	Washer	8
23	GB97_1-8	Washer	8
24	1456-53E-02000	Seat	1
	1456-53E-03000	Seat	1
25	GB93-8	Spring washer	24
26	GB6170-M8	Nut	16
27	GB5783-M8X25	Bolt	14
28	GB97.1-8	Washer	14
29	1456-53E-01000	Seat bracket	1
30	GB5783-M8X30	Bolt	14
