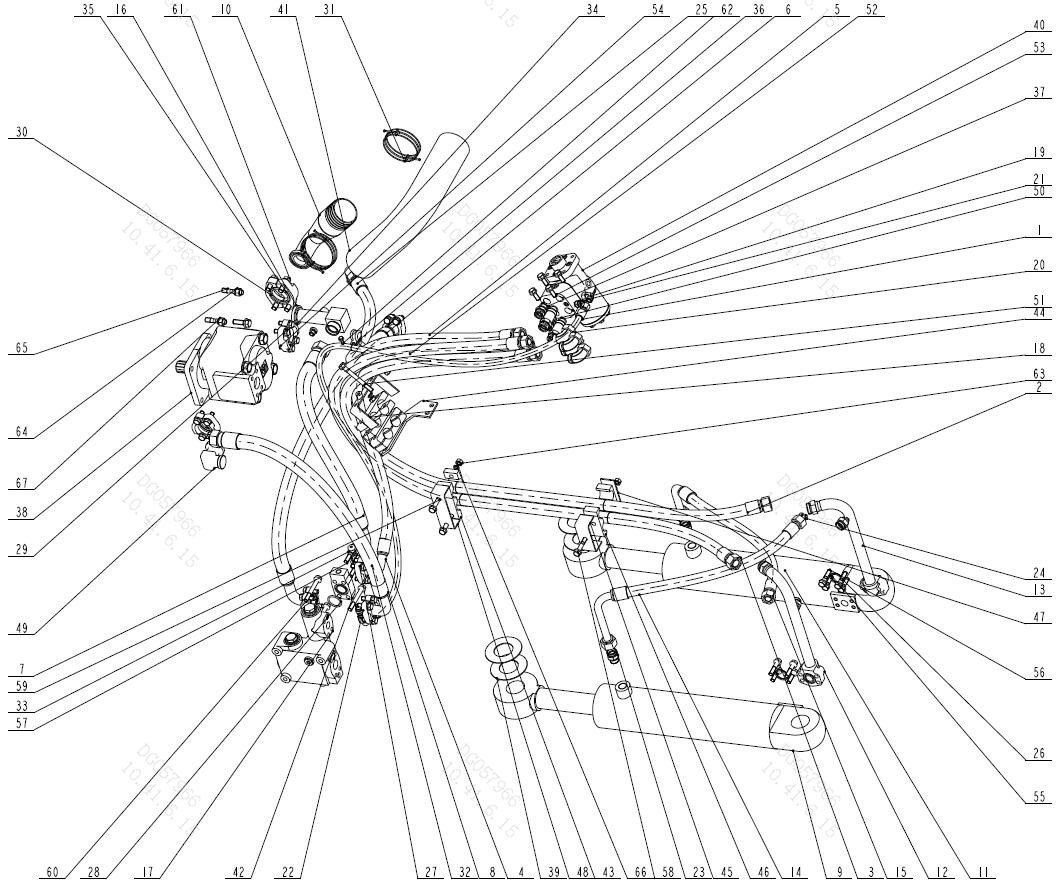

STR L58 Steering Hydraulic System

NO.	PART NO.	PART NAME	QTY
1	03004-11331920	Hose	1
2	03011-13762350	Hose	1
3	03011-13762350	Hose	1
4	03011-1C631220	Hose	1
5	03012-11661250	Hose	1
6	03014-AC441032	Hose	1
7	03031-41C840692	Hose	1
8	03031-41C840782	Hose	1
9	1455-76P-01000	Right steering cylinder	1
10	1455-76P-05000	Steel tube	1
11	1455-76P-06000	Left steering cylinder	1
12	1455-76V-01000	Steel tube	1
13	1455-76V-02000	Steel tube	1
14	1455-76V-03000	Right Hose	1
15	1455-76V-04000	Left Hose	1
16	1455-76V-09000	Steel tube	1
17	1456-76E-01000	Priority unloading valve	1
18	1457-76-07000	Plate	4
19	03201-01100	Joint	1
20	03201-01180	Joint	4
21	03206-01320	Joint	1
22	03206-01330	Joint	1
23	03206-01660	Joint	2
24	03212-00140	Plug	3
25	03232-01180	Joint	1
26	07000-13030	O-ring	2
27	07010-24025	O-ring	1
28	07010-24033	O-ring	5
29	07010-24038	O-ring	2
30	07010-24047	O-ring	1
31	07280-09832	Pipe clamp	4
32	07371-30640	Flange	2
33	07371-31049	Flange	8
34	07371-31255	Flange	4
35	07371-31465	Flange	2
36	08043-01806	Casing clamp	1
37	1452-76-00002	Joint	2
38	1452-76-07000	Gear pump	2
39	1455-76-00009	Gasket	4
40	1455-76-21000	Steering device assy	1
41	1455-76V-00009	Hose	1
42	1456-76E-00001	Valve block	1
43	1457-76-00003	Tube clip	6
44	1457-76-00004	Bracket	1
45	1457-76-00006	Plate	1
46	1457-76-00007	Tube clip	2
47	1457-76-00008	Plate	1
48	1457-76-00010	Plate	1
49	1457-76-00014	Joint	1
50	1464-76B-00002	Joint	2
51	GB16674.1-M10X100	Bolt	2
52	GB16674.1-M10X20	Bolt	2
53	GB16674.1-M10X25	Bolt	4
54	GB16674.1-M10X30	Bolt	24
55	GB16674.1-M10X35	Bolt	4
56	GB16674.1-M10X45	Bolt	4
57	GB16674.1-M10X55	Bolt	4
58	GB16674.1-M10X60	Bolt	1
59	GB16674.1-M10X65	Bolt	2
60	GB16674.1-M10X80	Bolt	3
61	GB16674.1-M12X35	Bolt	6
62	GB16674.1-M6X16	Bolt	1
63	GB6170-M10	Nut	5
64	GB6170-M12	Nut	2
65	GB898-AM12X35	Bolt	2
66	GB93-10	Washer	5
67	GB93-12	Washer	2
