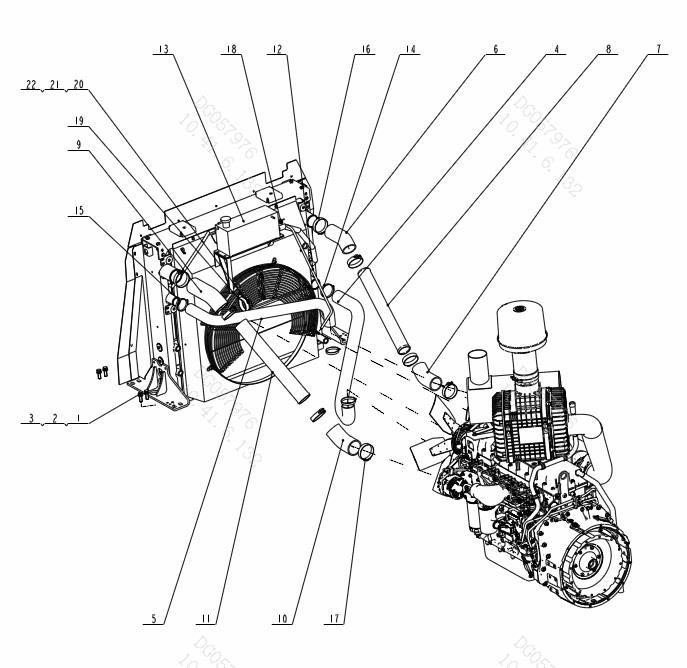

STR L58 Radiator And Piping

NO.	PART NO.	PART NAME	QTY
1	GB5783-M16X50	Bolt	8
2	GB97.1-16	Washer	8
3	GB93-16	Washer	8
4	1457-03-00017	Engine water inlet pipe	1
5	1457-03-00016	Engine water outlet pipe	1
6	1457-03-00006	Air inlet pipe	1
7	1457-03-00007	Air inlet pipe	1
8	1457-03-00008	Air inlet steel tube	1
9	1457-03-00009	Air outlet pipe	1
10	1457-03-00010	Air outlet pipe	1
11	1457-03-00011	Air outlet steel tube	1
12	1457-03-00012	Gas outlet pipe	1
13	1456-03E-01000	Radiator	1
14	07281-00909	clamp	2
15	07281-00809	clamp	2
16	07278-40958	T-clamp	4
17	07278-41018	T-clamp	4
18	07280-01620	Clamp	2
19	08043-07008	Clip	1
20	GB6177.1-M8	Nut	1
21	GB96.1-8	Washer	1
22	GB16674.1-M8X25	Bolt	1
